Applied Field: Ultrafine powder grinding mill is used for high-fine powder grinding such as barite, calcite, potash feldspar, talc, marble, limestone, dolomite, fluorite, lime, and other non-flammable and explosive minerals with the mohr hardness less than 9.3 and humidity below 6%. Ultrafine powder grinding mill is widely applied in mining, chemical, construction, and other industries.

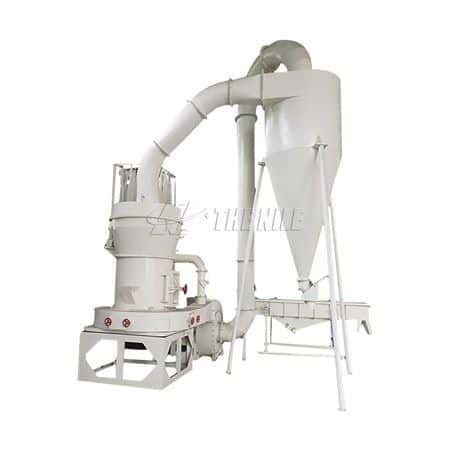

The Structure of Ultrafine Powder Grinding Mill
The structure of the ultrafine powder grinding mill is mainly composed of a host, an analyzer, a fan, a finished cyclone separator, a fine powder cyclone separator, and a windpipe. Among them, the host is composed of a frame, an air inlet volute, a blade, a grinding roller, a grinding ring, and a cover.
Working Principle of Ultrafine Powder Grinding Mill
When working, the material to be ground is fed into the ultrafine powder grinding mill from the feeding hopper on the side of the machine cover, and the grinding roller device suspended on the plum blossom frame of the main machine revolves around the vertical axis while rotating itself. Due to the centrifugal force during rotation, the grinding roller of ultrafine powder grinding mill swings outwards and tightly presses on the grinding ring, so that the shovel blade scoops up the material and sends it between the grinding roller and the grinding ring to achieve the purpose of crushing the material.
Name | Unit | Model | ||
HGM80 | HGM100 | HGM125 | ||
Roller Number | unit | 27 | 27 | 40-44 |
Ring Number | sleeve | 3 | 3 | 4 |
Working Diameter | mm | 800 | 1035 | 1300 |
Feeding Size | mm | ≤10 | ||
Output Size | μm | 47-5 | ||
mesh | 325-3200 | |||
Capacity | kg/h | 600-4000 | 900-6000 | 1200-8000 |
Dimension | m | 11.9*2.7*5.8 | 14.5*3.8*6.3 | 14*9*10.25 |
