Processing Materials: Micro Powder Grinding Mill is mainly suitable for more than 100 kinds of materials grinding, such as kaolin, graphite, limestone, calcite, talc, phosphate rock, calcium carbonate, dolomite, gypsum, diabase, quartz, bentonite, coal. The finished powder size of micro powder grinding mill can be adjusted between 325-3000 mesh and the output can reach 0.5-12 tons per hour.

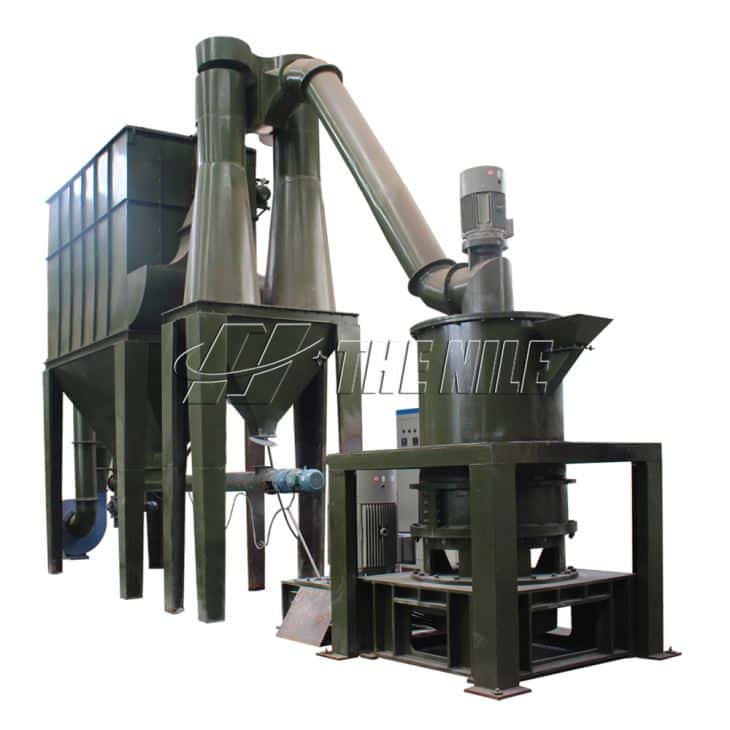

Working Principle of Micro Powder Grinding Mill

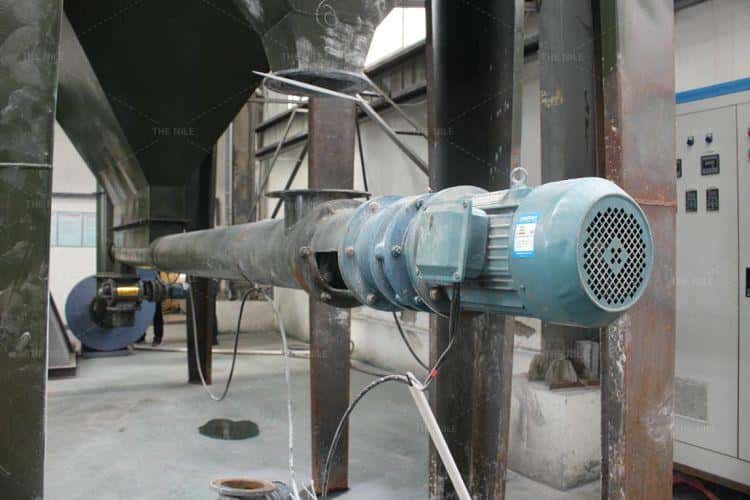

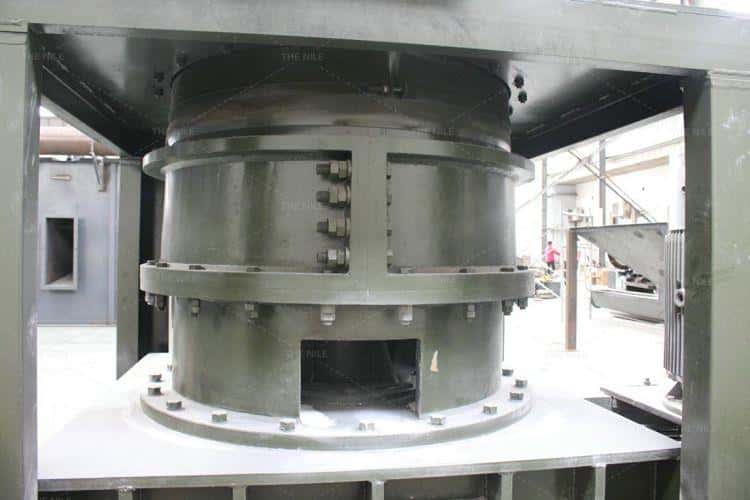

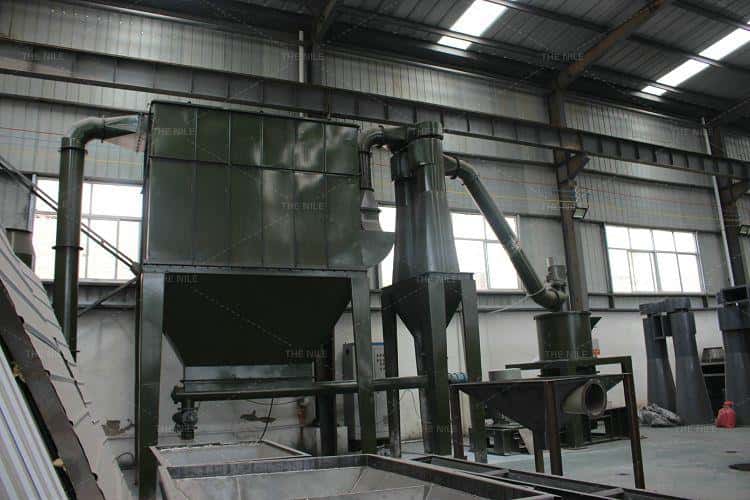

Material is sent to the storage bin by the bucket elevator after being broken, and then sent to the main machine grinding cavity by the vibrating feeder.Compared with ordinary grinding machineon the market, our micro powder grinding mill has the advantage of energy saving.The micro powder grinding millhas a larger application range than the airflow mill.In terms of same output and fineness, the system energy consumption is only one-third of the airflow mill. In addition, it is really easy for operationwithout maintain. When the motor rotates through the transmission device, the blade and the grinding roller are mounted on the blade holder.
Advantages of Micro Powder Grinding Mill
1. Product size range is wide, can be adjusted arbitrarily
2. Under the action of high pressure spring, the fineness of finished product is greatly improved.
3. The dust removal effect is good and conforms to the national dust emission standard.
4.Overlapping multi-stage sealing and has good sealing performance.
Name | Unit | Model | ||
HGM80 | HGM100 | HGM125 | ||
Roller Number | unit | 27 | 27 | 40-44 |
Ring Number | sleeve | 3 | 3 | 4 |
Working Diameter | mm | 800 | 1035 | 1300 |
Feeding Size | mm | ≤10 | ||
Output Size | μm | 47-5 | ||
mesh | 325-3200 | |||
Capacity | kg/h | 600-4000 | 900-6000 | 1200-8000 |
Dimension | m | 11.9*2.7*5.8 | 14.5*3.8*6.3 | 14*9*10.25 |
