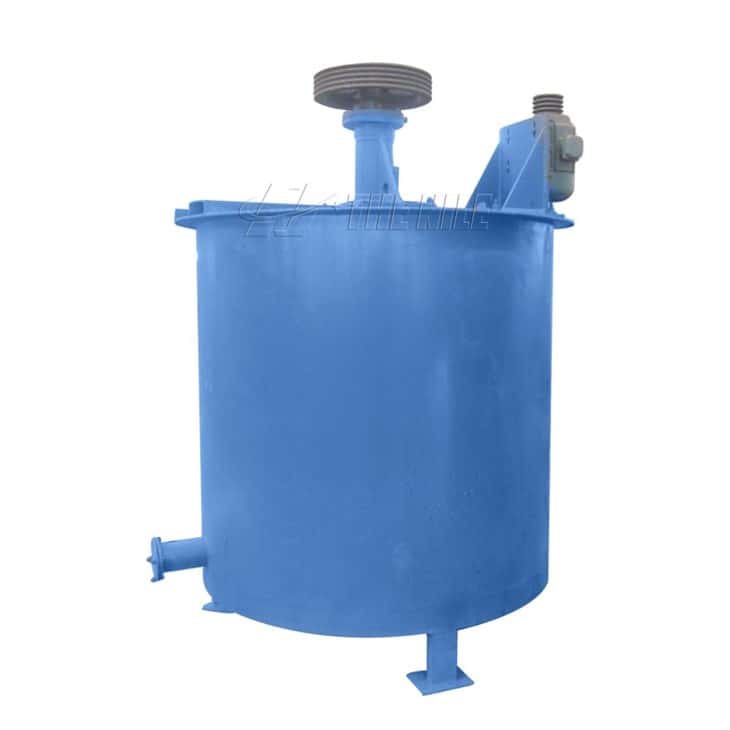

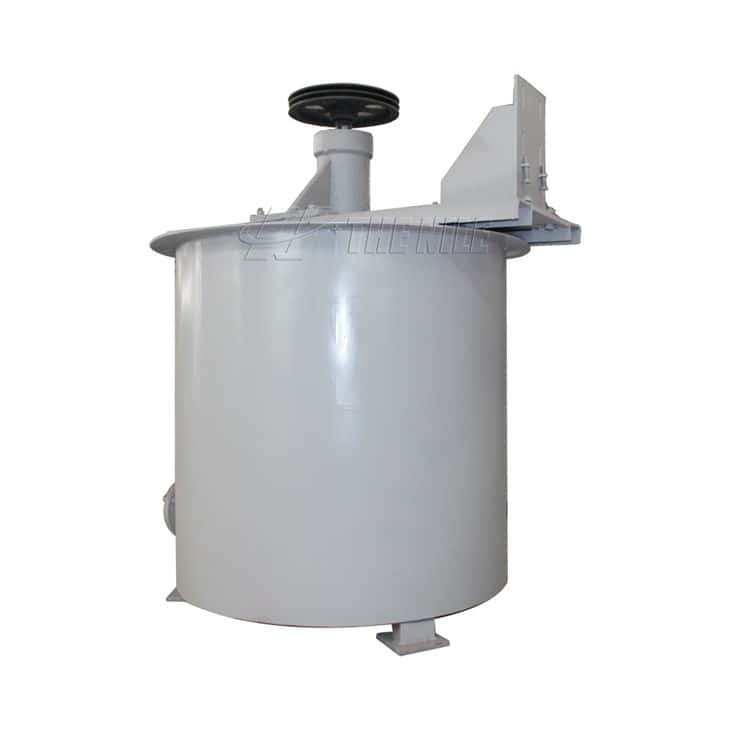

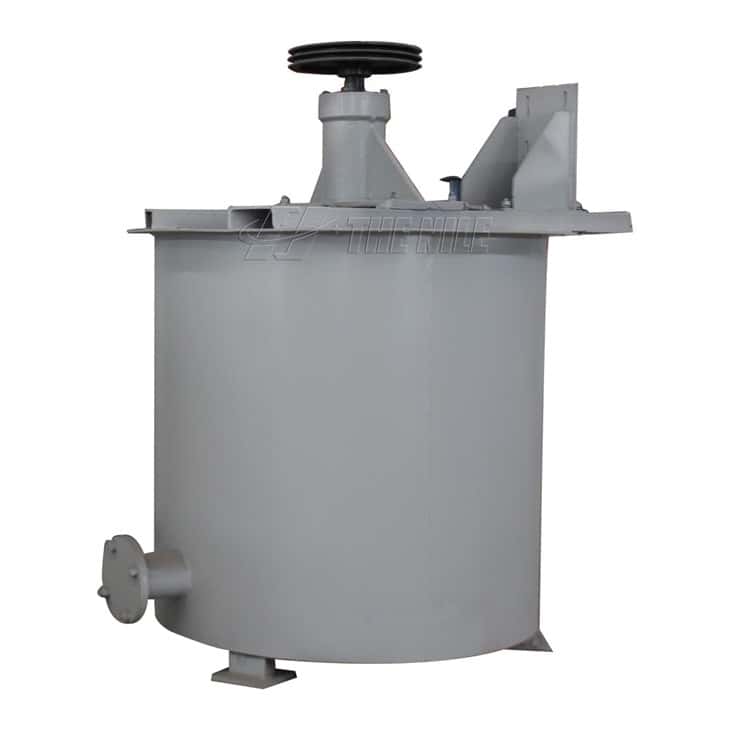

Double Impellers Leaching Stirred Tank

The double impellers stirring mixing tank is used for stirring, leaching and carbon adsorption ore pulp of gold cyanide plant that fineness is at least 75% of 200 mesh and concentration is less than 45%. It can also be used for blending and leaching in metallurgy, chemistry, and light industries.

The characteristics of double impeller cyanide leaching agitation tank

1. The ore flow moves smoothly, the ore slurry is evenly mixed, and the power consumption is low;

2. The double-impellers leaching stirred tank equipment has a reasonable and compact structure and high transmission efficiency;

3. The leaching mixing tank machine adopts double impellers, large diameter, low speed, low mixing power consumption, and low carbon abrasion;

4. The hollow shaft is ventilated to the bottom, and the air enters the groove through it, disperses evenly, and has small bubbles;

5. The mixing intensity is moderate, and the slurry concentration and fineness distribution in the tank are consistent, which can improve the leaching rate of cyanide and the adsorption rate of carbon;

6. The impeller is lined with rubber, with low rotation speed and long service life.

The working principle of double impellers leaching mixing tank for sale

The slurry of the leaching mixing tank is driven and stirred by the double impeller, flows from top to bottom in the center, diffuses through the surrounding damping plate, and feeds air and slurry at the lower end of the shaft to mix and circulate upwards to form a uniform Suspension mixture.

Company strength:

The Nile Machinery Co., Ltd. is committed to designing crushing equipment, gold beneficiation equipment, ore beneficiation equipment, sand making equipment, and other equipment, which are widely used in electric power, metallurgy, mining, quarries, and other industries. The products are exported to all parts of the world, especially in Europe, America, Asia, Africa, and other regions, and are well received by customers. In addition, we have set up overseas warehouses in Sudan and Kenya to ensure that customers observe the equipment up close, shorten the transportation time, and allow users to get the equipment faster.
