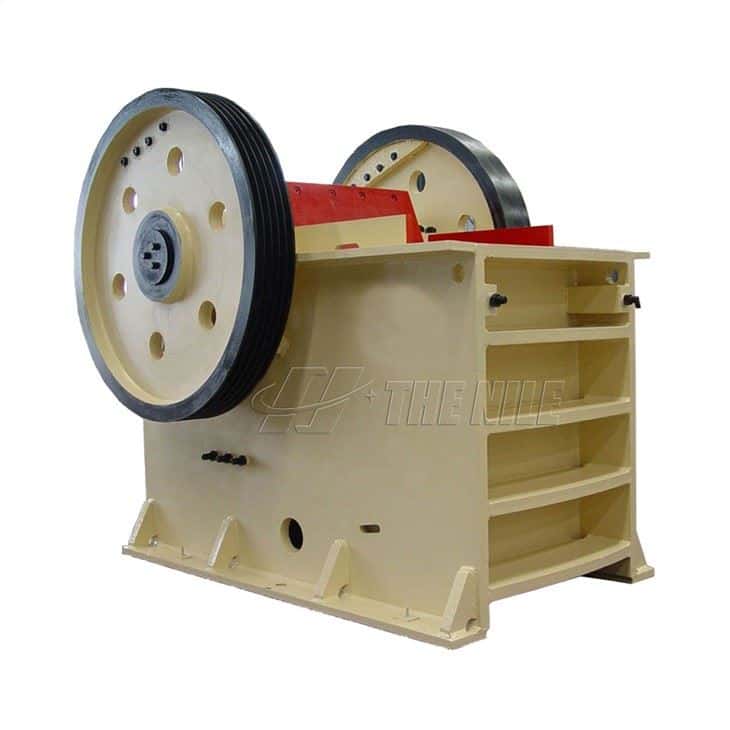

Jaw Stone Crusher Machine

Product introduction:

Jaw stone crusher is abbreviated as jaw stone crushing machinery. The product has the characteristics of a large crushing ratio, simple structure, reliable work, simple maintenance, and economical operating costs. The jaw crusher machine adopts the squeeze method, which is suitable for rocks with high hardness and abrasiveness index. It is mainly used for coarse crushing. The feed size is above 500mm and the discharge size is below 350mm.

The main components of the jaw crusher equipment

PE Series Stone jaw crusher is mainly composed of frame, eccentric shaft, large pulley, flywheel, movable jaw, side guard plate, elbow plate, back seat of elbow plate, fixed jaw plate, and movable jaw plate, among which the elbow plate also plays a role of insurance.

Features of jaw crusher for sale:

1. Low noise and less dust.

2. Large crushing ratio and uniform product size.

3. The structure is simple, the work is reliable, and the operating cost is low.

4. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment is easy to maintain.

5. The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output.

Daily maintenance:

(1) The staff always pay attention to and do a good job of lubricating the friction surface in time to make the machine run normally and prolong its service life.

(2) The grease used in the jaw rock crusher equipment should be determined according to the place of use and temperature conditions. Generally, calcium-based, sodium-based, and calcium-sodium-based greases are used.

(3) The grease added to the bearing housing is about 50% of the space volume, and it is replaced every 3-6 months. When changing the oil, we should use clean gasoline or kerosene to clean the raceways of the roller bearings.

(4) Before starting the jaw crusher, a proper amount of grease should be injected between the thrust plate and the thrust plate support.

Company description：

The Nile Machinery Co., Ltd. is committed to designing various equipment such as stone crushing equipment, gold beneficiation equipment, mineral ore beneficiation equipment, and sand making equipment, which are widely used in electric power, metallurgy, mining, quarry, and other industries. The products are exported to all parts of the world, especially in Europe, America, Asia, and Africa, and are well received by customers.
