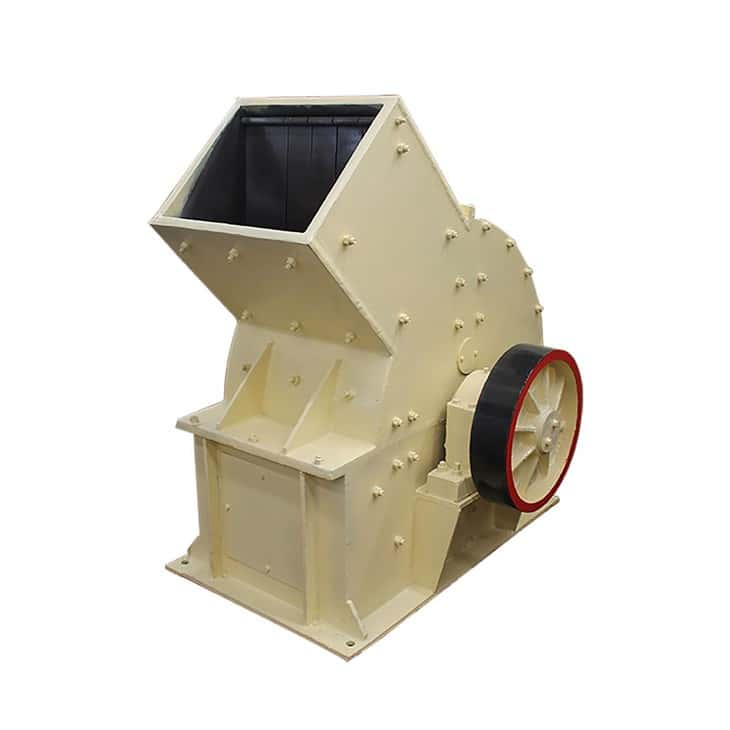

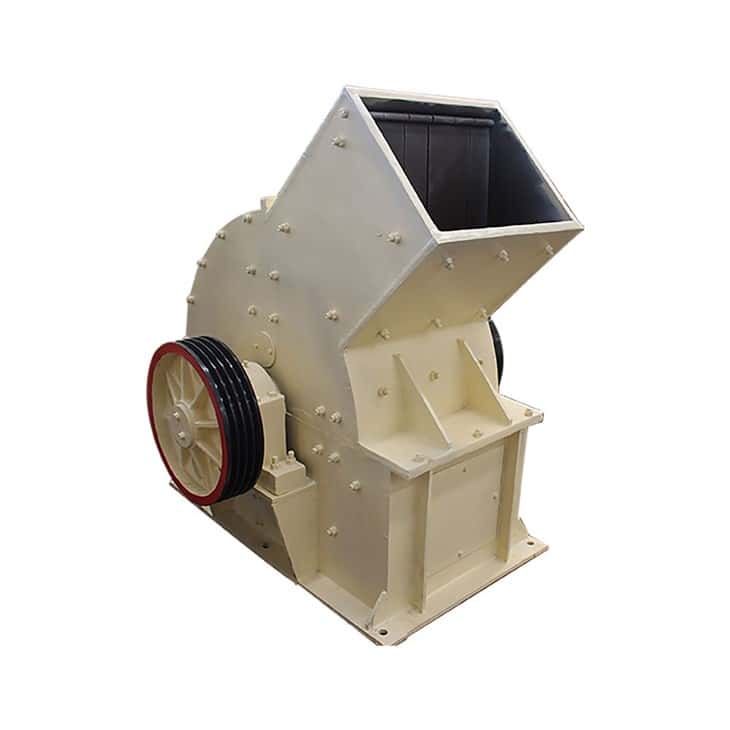

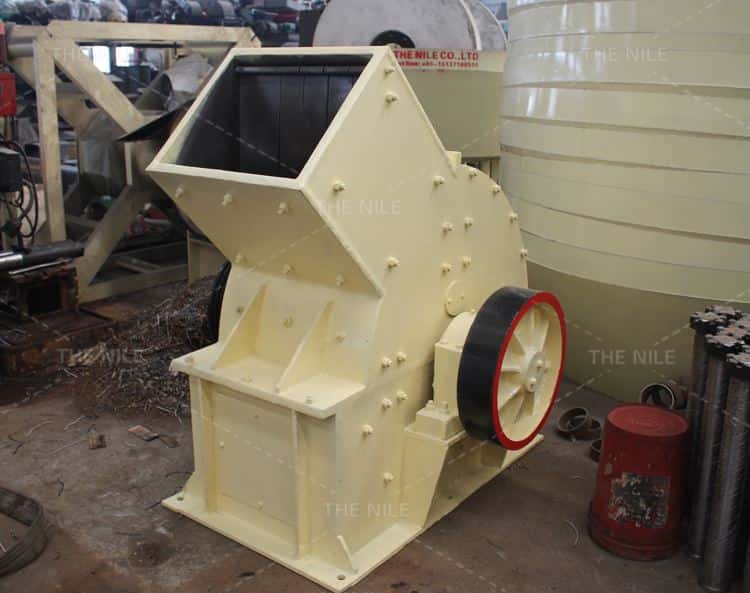

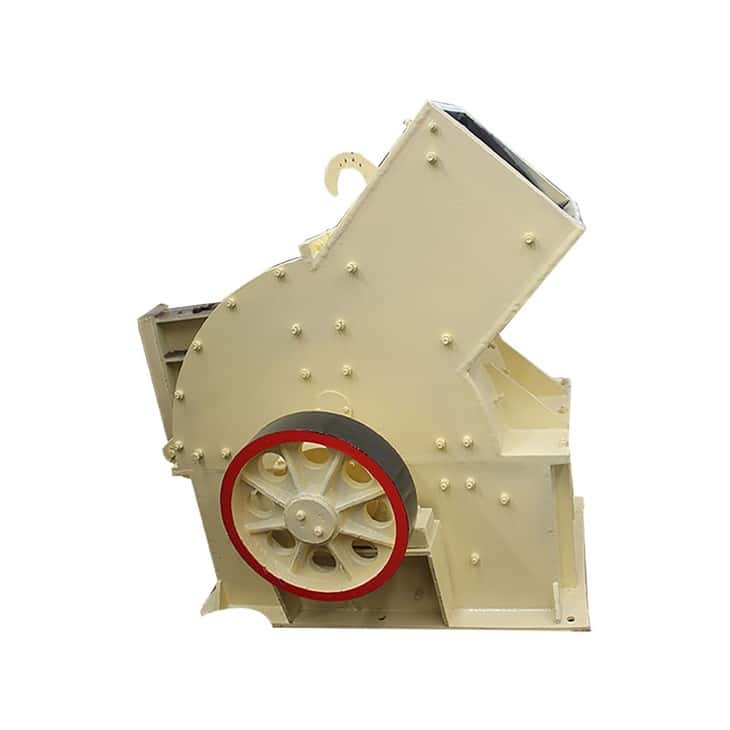

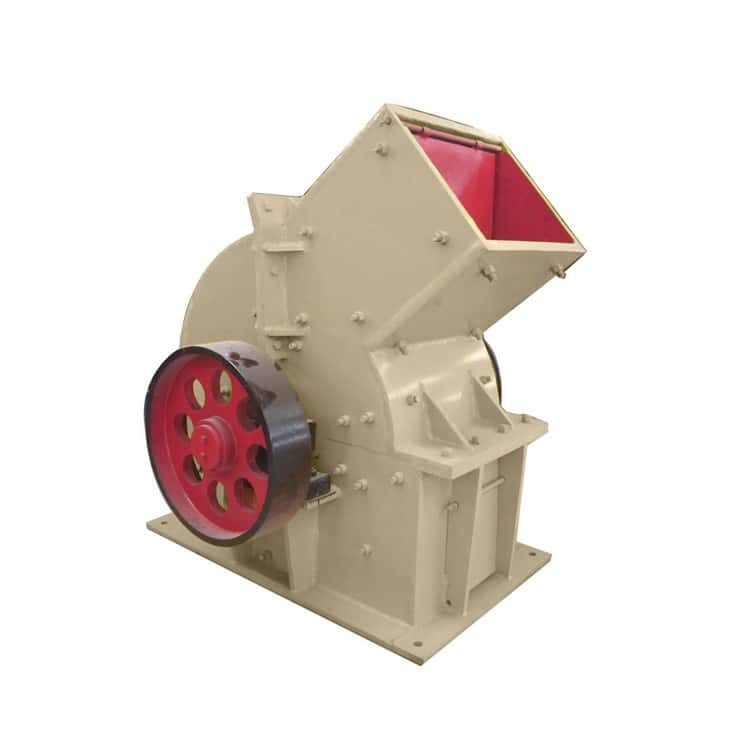

The hammer crusher machine for sale crushes the material through the high-speed rotating hammer and the material crushing surface. It is suitable for crushing brittle, medium-hard, and low-water content materials, and is used to crush limestone, shale, and other materials.
Product Description
Hammer crushers are suitable for crushing medium-hard materials, such as limestone, slag, coke, coal, etc. it is widely used in industrial sectors such as cement, chemical industry, electric power, and metallurgy. The hammer crusher has the advantages of simple structure, large crushing ratio, high production efficiency, and convenient maintenance. It can adjust the grate gap according to the size of the material to meet the different needs of different users.
Components of hammer rock crusher equipment
The hammer stone crushing machine is mainly composed of a box body, a rotor, a hammerhead, a counterattack liner, and a sieve plate. The rotor is the main working part of the hammer crusher. The rotor is composed of the main shaft, a hammer plate, a pin shaft, and a hammerhead. The main shaft is the most important component of the hammer crusher to support the rotor. The weight and impact force of the rotor and hammerhead are all borne by the main shaft, so the main shaft is generally made of high-quality alloy steel. Hammerheads, grate bars, and liners are the vulnerable parts of the hammer crusher. We must pay attention to daily maintenance.
Features of hammer crusher machine for sale
1. The hammerhead of the hammer crusher introduces foreign advanced technology and adopts new technology for casting, which is more wear-resistant, impact-resistant, and prolongs its service life.
2. The hammer crusher machine can adjust the grate gap according to the size of the material to meet the different needs of different users.
3. The body of the hammer crusher equipment adopts a fully sealed device, which has less dust pollution in the workshop and is safe and reliable.
4. Large crusher ratio and high production efficiency
The main purpose

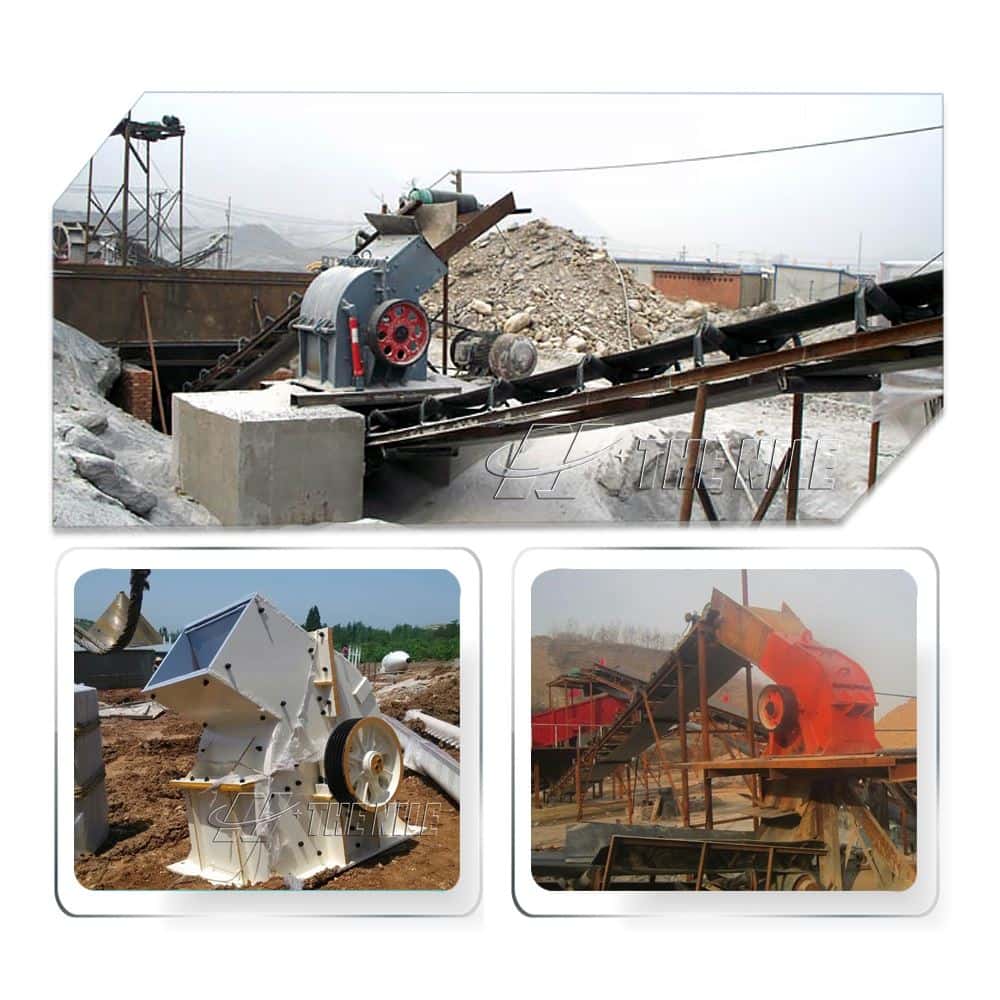

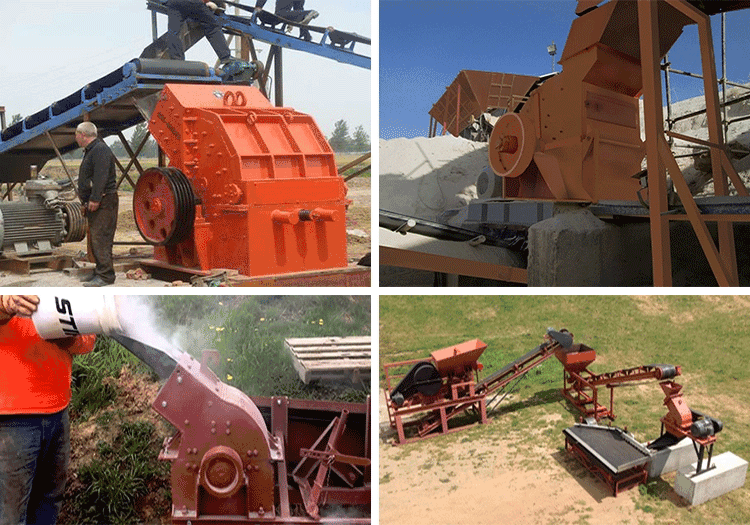

The hammer crusher stone machine can crush coal, salt, gypsum, chalk, bricks, limestone, and other materials. It is also used to crush wood, paper, or crushed asbestos cement with strong fiber structure, elasticity, and toughness, and to recycle asbestos fibers. In addition, the hammer crusher can not only be used in crushing production lines, and making production lines, but also in the beneficiation production line instead of cone crushers. It is a commonly used crushing equipment.
Company strength
The Nile Machinery Equipment Company has focused on researching mining machinery and equipment for more than 10 years, especially stone crushing equipment, sand making equipment, industrial grinding equipment, mobile crushing station, gold beneficiation equipment, mineral ore beneficiation equipment, and other equipment, which are well received by users. The Nile Company has a skilled technical team, a professional business team, and an excellent e-commerce team, which can provide you with integrated services and make you worry-free throughout the process.
| Model No. | Max. Feeding Size | Output Size | Capacity | Motor Power | Weight |
| (mm) | (mm) | (t/h) | (kW) | (t) | |
| PC 300*200 | ≤50 | ≤10 | 1-2 | 5.5 | 0.4 |
| PC400*300 | ≤100 | ≤10 | 5-10 | 11 | 0.8 |
| PC600*400 | ≤120 | ≤15 | 10-25 | 22 | 1.5 |
| PC800*600 | ≤120 | ≤15 | 20-35 | 55 | 3.1 |
| PC1000*800 | ≤200 | ≤13 | 20-40 | 75 | 7.9 |
| PC1000*1000 | ≤200 | ≤15 | 30-80 | 90 | 8.65 |
| PC1200*1000 | ≤250 | ≤19 | 80-200 | 132 | 13.6 |
