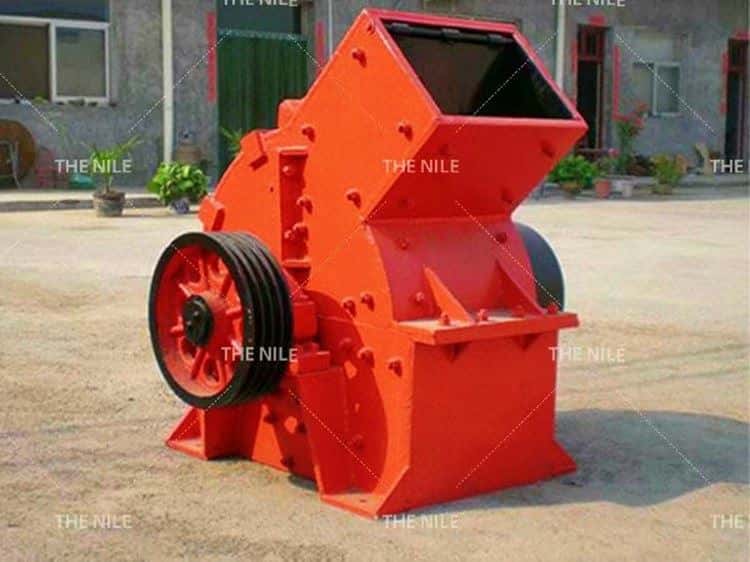

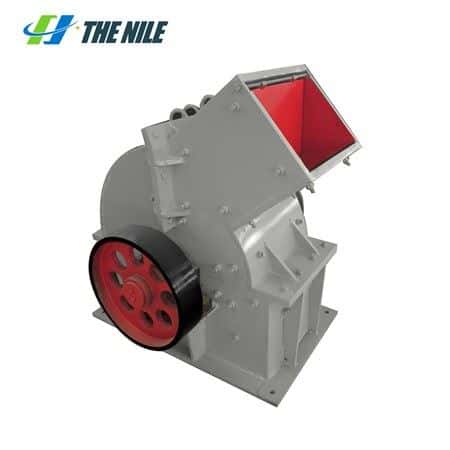

Stone Hammer Crusher

Introduction of Stone Hammer Crusher

The main working part of the stone hammer crusher is the rotor with a hammer (also known as hammerhead). The rotor is composed of a spindle, disc, pin, and hammer. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feeding port and crushed by the impact, counter-attack, shearing, and grinding of a high-speed hammer. In the lower part of the rotor, there is a sieve plate and the particles smaller than the mesh size are discharged through the sieve plate, and the coarse particles larger than the mesh size are retained on the sieve plate and continue to be hit and ground by the hammer, and finally discharged out of the machine through the sieve plate.

Performance of Stone Hammer Crusher

Stone hammer crusher has a simple and reasonable structure and low operation cost. Based on the principle of stone striking, it has the advantages of small abrasion, high crushing rate, energy saving, fine crushing, and rough grinding functions, small influence by material moisture content, moisture content up to 8%, more working noise less than 75 dB (DB level), less dust pollution, which is suitable for crushing medium-hard and extra-hard materials. The finished product is cube-shaped with high bulk density and minimal iron pollution.
