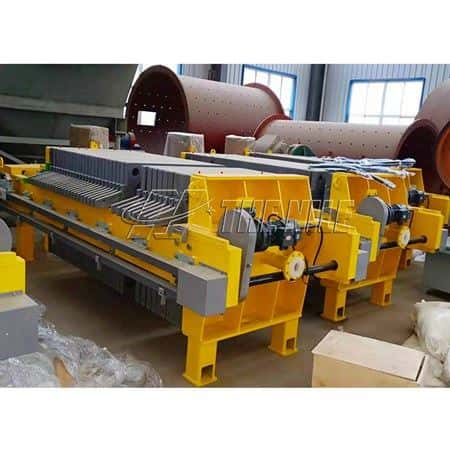

Applied Fields: Plate filter is widely applied in industries such as water treatment, petroleum, pharmaceutical, dye, metallurgy, and mineral processing. It has many advantages of simple operation and strong applicability.
Technical Parameters of Plate Filter
| Model | Filtering area(㎡) | Filter chamber quantity(pcs) | Filter plate model(mm) | Filter cake thickness(mm) | Filter chamber volume(m³) | Filtration pressure(Mpa) | Dimension(mm) | Power(kw) | Weight(kg) |
| XMZ100-1000-30U | 100 | 58 | 1000×1000 | 30 | 1.635 | 0.5-1.6 | 5890×1500×1350 | 2.2 | 4360 |
| XMZ100-1000-30U | 110 | 54 | 1090×1090 | 30 | 1.65 | 0.5-1.6 | 5760×1590×1450 | 5060 | |
| XMZ100-1000-30U | 120 | 59 | 1090×1090 | 30 | 1.8 | 0.5-1.6 | 6065×1590×1450 | 5360 | |
| XMZ150-1250-30U | 150 | 56 | 1250×1250 | 30 | 2.28 | 0.5-1.6 | 6200×1750×1600 | 4 | 7500 |
| XMZ180-1250-30U | 180 | 67 | 1250×1250 | 30 | 2.72 | 0.5-1.6 | 7230×1750×1600 | 8500 | |
| XMZ200-1250-30U | 200 | 74 | 1250×1250 | 30 | 3 | 0.5-1.6 | 7690×1750×1600 | 9000 | |
| XMZ250-1250-30U | 250 | 93 | 1250×1250 | 30 | 3.8 | 0.5-1.6 | 9015×1750×1600 | 10500 | |
| XMZ300-1500-30U | 300 | 74 | 1500×1500 | 30 | 4.48 | 0.5-1.6 | 9120×2330×1800 | 5.5 | 19200 |
| XMZ350-1500-30U | 350 | 87 | 1500×1500 | 30 | 5.25 | 0.5-1.6 | 10040×2330×1800 | 21300 | |
| XMZ400-1500-30U | 400 | 99 | 1500×1500 | 30 | 5.96 | 0.5-1.6 | 10890×2330×1800 | 23300 | |
| XMZ450-1500-30U | 450 | 112 | 1500×1500 | 30 | 6.74 | 0.5-1.6 | 11815×2330×1800 | 25400 | |
| XMZ500-1500-30U | 500 | 125 | 1500×1500 | 30 | 7.51 | 0.5-1.6 | 12740×2330×1800 | 27500 | |
| XMZ600-2000-40U | 600 | 113 | 2000×1500 | 40 | 11.98 | 0.5-1.2 | 13010×2620×2650 | 11 | 37855 |
| XMZ700-2000-40U | 700 | 133 | 2000×1500 | 40 | 14.08 | 0.5-1.2 | 14610×2620×2650 | 41074 | |
| XMZ800-2000-40U | 800 | 110 | 2000×2000 | 40 | 11.99 | 0.5-1.2 | 13540×3030×2400 | 11 | 43972 |
| XMZ1000-2000-40U | 900 | 127 | 2000×2000 | 40 | 14.90 | 0.5-1.2 | 14920×3030×2400 | 56000 |

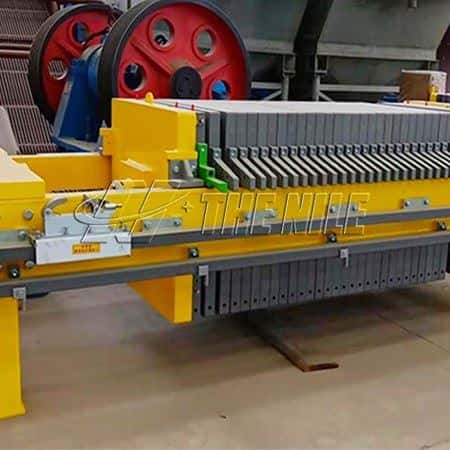

Working Principle of Plate Filter
The filter plates and filter frames with filtrate pathways are arranged in parallel with each other. Filter cloth is sandwiched between each group of filter plates and filter frames. The pressing ends of filter plates and filter frames are pressed tightly to form a pressure filter chamber.The sludge enters from the feed port, and then the water flows out from the filtrate outlet through the filter plate. The sludge cake stacked in the filter cloth, and the sludge cake is easy to fall off after the filter plate and filter frame are loose.
Main Features of Plate Filter
1. The linear structure is simple and easy to install and maintain.
2. Adopt world advanced brand parts in pneumatic parts, electrical parts, and operation parts.
3. High-pressure double crank controls the opening and closing of the equipment.
4. Highly automatic and intelligent operation with no pollution.
5. Connect the air conveyor with a connector, which can be directly connected with the filling machine in series.
