The High Efficiency Hydraulic Cone Crusher is suitable for crushing all kinds of medium-hard materials and fine crushing, and can be widely used in mining, metallurgy, building materials and other industries to break all kinds of hard stone and rock.

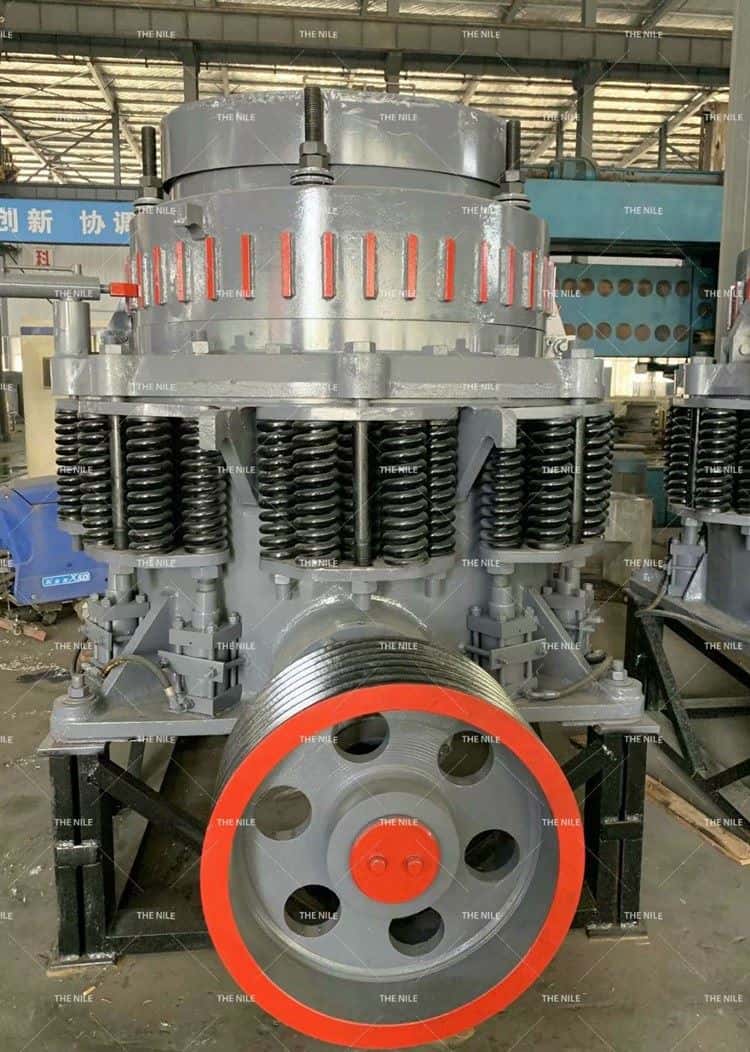

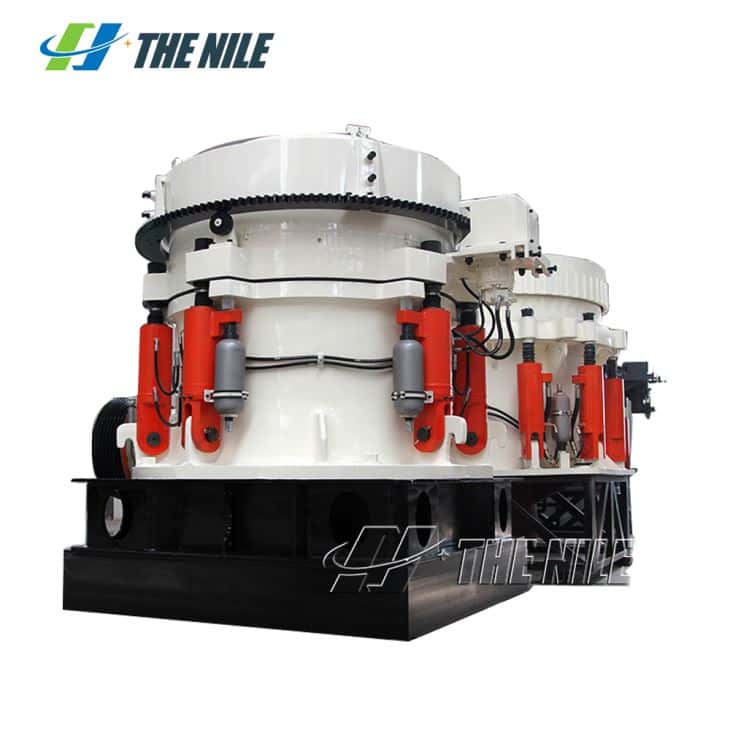

Product Introduction ofHigh Efficiency Hydraulic Cone Crusher
The High Efficiency Hydraulic Cone Crusherintegrates mechanical, hydraulic, electrical and automation technologies, representing the world's most advanced technology. It has the outstanding advantages of high reliability, large production capacity, high degree of automation, simple operation and maintenance, good grain shape, durability, low failure rate as well aslow cost of wearing parts.
In addition, the High Efficiency Hydraulic Cone Crusher uses a unique thin oil lubrication system design, which greatly improves the service life of equipment. The hydraulic adjustment of the discharge port and overload protection greatly improve the operation level, making maintenance and operation more convenient.All key components are made of premium materials to ensure long using life and high safety. The High Efficiency Hydraulic Cone Crusher is suitable for crushing all kinds of medium-hard materials and fine crushing, and can be widely used in mining, metallurgy, building materials and other industriestobreak all kinds of hard stone and rock.
Technical Parameters
Model | Type of cavity | Min output | Feed opening size | Capacity | Motor power | Moving cone diameter |
(mm) | (mm) | (t/h) | (kw) | (mm) | ||
HPY200 | C | 13 | 150 | 120-240 | 160 | 950 |
F | 6 | 76 | 55-180 | |||
HPY300 | C | 13 | 225 | 150-430 | 220 | 1160 |
F | 6 | 86 | 90-260 | |||
HPY400 | C | 13 | 290 | 190-610 | 315 | 1400 |
F | 6 | 100 | 108-320 | |||
HPY500 | C | 13 | 320 | 230-700 | 400 | 1500 |
F | 6 | 110 | 145-430 | |||
HPY800 | C | 13 | 350 | 325-1150 | 630 | 1800 |
F | 8 | 120 | 245-730 |
