Processing Materials：quartz, limestone, granite, pebble, calcite, dolomite, slag, concrete, gold ore, iron ore, copper ore, lead ore, zinc ore and other minerals. Application Field：Multi cylinder hydraulic stone cone crusher is used in many industries such as mining, metallurgy, construction, chemical industry, electric power and transportation.

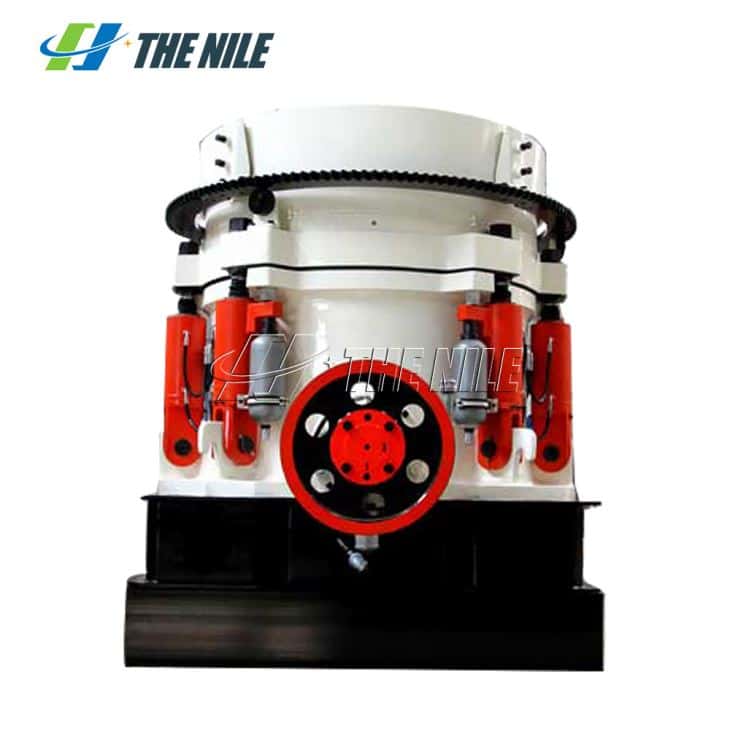

Introduction ofMulti Cylinder Hydraulic Stone Cone Crusher
According to the difference of the cone crusher hydraulic system, hydraulic cone crusher can be divided into multi cylinder hydraulic stone cone crusher (HP series) and single-cylinder hydraulic stone cone crusher (HCS series). The multi cylinder hydraulic stone cone crusher is typical crushing equipment for medium and fine crushing of hard materials.
Advantages ofMulti Cylinder Hydraulic Stone Cone Crusher
1. Upgraded structure and higher efficiency
The lubrication seal structure and design of transmission components of multi cylinder hydraulic stone cone crusherhave been further optimized. The multi-cylinder hydraulic cone crusher has strong equipment carrying capacity, and the largest installed power in the same model of the industry.
2.Hydraulic system for easy operation and maintenance
With full hydraulic control, the equipment is cleaned from the safety chamber to the adjustment and locking. The work is more stable and reliable, the downtime is reduced.
3.Good shape of the discharge
The finished product has a cubic shape and a high content of fines, which improves the quality of the finished product and reduces the production cost of the equipment and the entire system.
We are the manufacturer of multi cylinder hydraulic cone crusher in China. We provide the full model's new hydraulic cone crusherfor you at the factory price.
Technical Parameters
Model | Type of cavity | Min output | Feed opening size | Capacity | Motor power | Moving cone diameter |
(mm) | (mm) | (t/h) | (kw) | (mm) | ||
HPY200 | C | 13 | 150 | 120-240 | 160 | 950 |
F | 6 | 76 | 55-180 | |||
HPY300 | C | 13 | 225 | 150-430 | 220 | 1160 |
F | 6 | 86 | 90-260 | |||
HPY400 | C | 13 | 290 | 190-610 | 315 | 1400 |
F | 6 | 100 | 108-320 | |||
HPY500 | C | 13 | 320 | 230-700 | 400 | 1500 |
F | 6 | 110 | 145-430 | |||
HPY800 | C | 13 | 350 | 325-1150 | 630 | 1800 |
Technical Parameters
Model | Type of cavity | Min output | Feed opening size | Capacity | Motor power | Moving cone diameter |
(mm) | (mm) | (t/h) | (kw) | (mm) | ||
HPY200 | C | 13 | 150 | 120-240 | 160 | 950 |
F | 6 | 76 | 55-180 | |||
HPY300 | C | 13 | 225 | 150-430 | 220 | 1160 |
F | 6 | 86 | 90-260 | |||
HPY400 | C | 13 | 290 | 190-610 | 315 | 1400 |
F | 6 | 100 | 108-320 | |||
HPY500 | C | 13 | 320 | 230-700 | 400 | 1500 |
F | 6 | 110 | 145-430 | |||
HPY800 | C | 13 | 350 | 325-1150 | 630 | 1800 |
