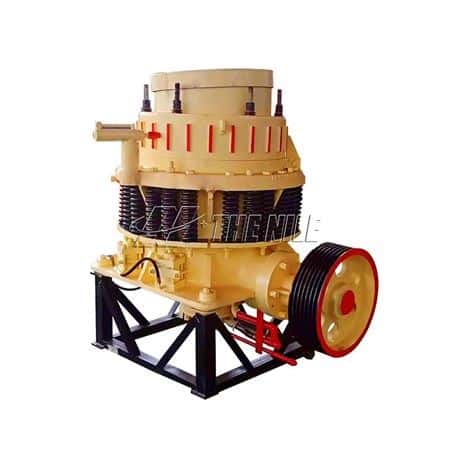

Applicable materials: Stone Symons cone crusher is widely used for crushing pebble, granite, basalt, iron ore, limestone, quartzite, diabase, iron ore, gold ore, copper ore, etc. Stone Symons cone crushers are divided into coarse crushing, medium crushing, and fine crushing. According to the operation mode of the production line, there are two series of cone crushers, fixed cone crushers and mobile cone crushers, which can be purchased according to different needs of users.
Technical Parameters
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |
Working Principle of Stone Symons Cone Crusher
The blasting rock material and crushed stone rubble are transformed into usable materials by selecting large rocks and breaking them into small pieces. Sometimes the smashing will continue until only sand-like "fine materials" exist and in mining, grinding is usually followed by grinding.
Advantages of Stone Symons Cone Crusher
1.High performance and low cost. By optimizing the crushing cavity, combining reasonable speed and stroke, the performance of the equipment is stable and reliable, the single machine processing capacity is improved, and the production cost is reduced.
2.The lamination crushing is adopted and the finished product is of good quality. The principle of lamination between particles is adopted to replace the traditional single particle crushing principle with a special crushing chamber and matching rotating speed. The selective crushing of materials is realized, the proportion of fine materials and cube content of products are improved, and the aggregate processed from needle and flake materials is greatly reduced with reasonable gradation.
Technical Parameters of Stone Symons Cone Crusher
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |
