This kind of Symons 3ft Short Head Cone Crusher is widely used in metallurgy, building material, road construction, chemical engineering, silicate and other industries. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above.
Product Description

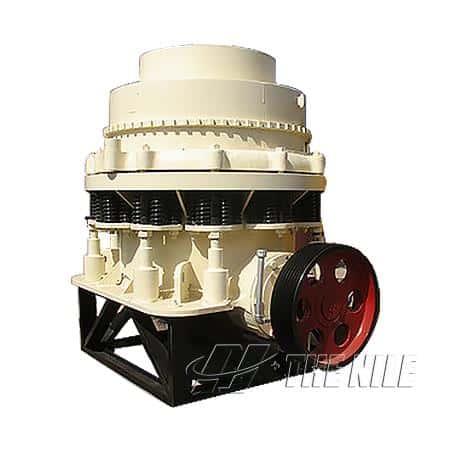

This kind of Symons 3ft Short Head Cone Crusheris made of high quality material with advanced technology. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above.According to the production needs, userscan select the crushing cavity type with high crushing efficiency, uniform product size and suitable granular shape.All details are carefully treated to ensure high safety and durability.
Besides, the Symons 3ft Short Head Cone Crusher uses unique dust-proof sealing structure, which prolongs the replacement period of lubricating oil and the service life of parts. All key components are made of special materials to support large crushing forces.It adopts hydraulic clearing system,which is convenient to operate and reduces downtime.It also has the prominent features of delicate design, compact structure, high efficiency, easy operation, simple maintenance, low failure rate as well as high cost effective.The Symons 3ft Short Head Cone Crusher is deeply loved by our clients worldwide due to excellent performance.
Technical parameter
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |
