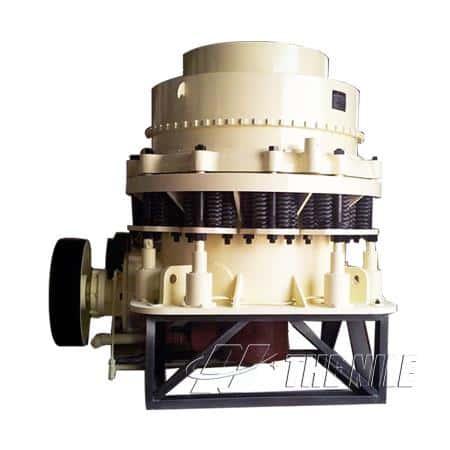

Symons 7 Ft Cone Crusher

Working Principle of Symons 7 Ft Cone Crusher

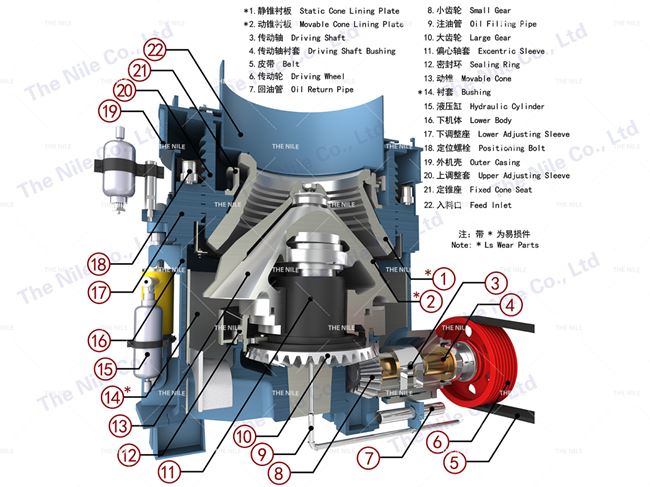

When Symons 7 Ft Cone Crusher is working, the motor drives the eccentric sleeve to rotate through the V-belt, the large pulley, the transmission shaft, the small gear and the large gear. The moving cone rotates and swings under the forced movement of the eccentric shaft sleeve. The section of the moving cone close to the fixed cone becomes the crushing cavity, and the material is crushed by the squeezing and impacting continuously from the moving cone and fixed cone. When the moving cone leaves this section, the material that has been crushed to the required particle size falls under its own gravity and discharge from the bottom of the cone.

Advantages of Symons 7 Ft Cone Crusher

1.Through the replacement of cavity-type to adapt to a wide range of product size requirements.

2. This Symons 7 ft cone crusher machine has the characteristics of large crushing ratio, high efficiency, large amount of processing, low operating cost, and easy adjustment.

3. The spring safety system is an overload protection device that allows foreign objects and iron blocks to pass through the crushing chamber without damaging the crusher.
