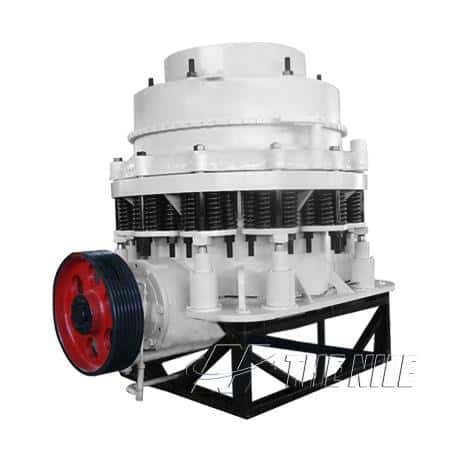

Symons 3ft Cone Crusher

Features of Symons 3ft Cone Crusher

1.The upper and lower ends of the main shaft are supported, which can withstand greater stroke and crushing force. Coupled with the special crushing cavity shape compatible with the lamination principle, the Symons 3ft cone crusher has higher crushing efficiency.

2.The hydraulic adjustment mechanism is included, which is convenient for quickly adjusting the size of the discharge opening of the Symons 3ft Cone Crusher.The new oil filter system ensures that the transmission device of Symons 3ft cone crusher will not be worn accidentally.

3.The spring safety system of Symons 3ft cone crusher is an overload protection device, which allows metal foreign objects to pass through the crushing cavity without harming the machine.

4.Symons 3ft cone crusher adopts the hydraulic cavity cleaning system: easy to operate, reduce downtime, low power consumption and reasonable distribution.

Maintenance ofSymons 3ft Cone Crusher

1.According to the working principle of Symons 3ft Cone Crusher, the actual power should not be less than 40% of the rated power. In order to obtain proper "load bearing positioning" and maximize productivity, the actual power of Symons 3ft Cone Crusher should be kept between 40%-100% of rated power, and 75%-95% during operation is the best choice. Operation beyond the rated power will affect the service life of the Symons 3ft cone crusher and cause various problems.

2.The feeding falling point should be aligned with the center point of the Symons 3ft cone crusher inlet. It is suggested that a vertical baffle should be used to guide the material drop point to the Symons 3ft cone crusher inlet. Once the falling point is eccentric, one side of the crushing chamber is full of material while the other side has no material or less material, which will lead to lower throughput of Symons 3ft cone crusher, increased needle-like products, and large product particle size.
