Applied Filed: According to the Symons cone crusher instruction manual, Symons cone crushers are widely used in industries such as building materials industry, road building industry, chemical industry etc. Our Symons cone crusher instruction manual will include the raw materials, advanates, operation method and maintenance about equipment.

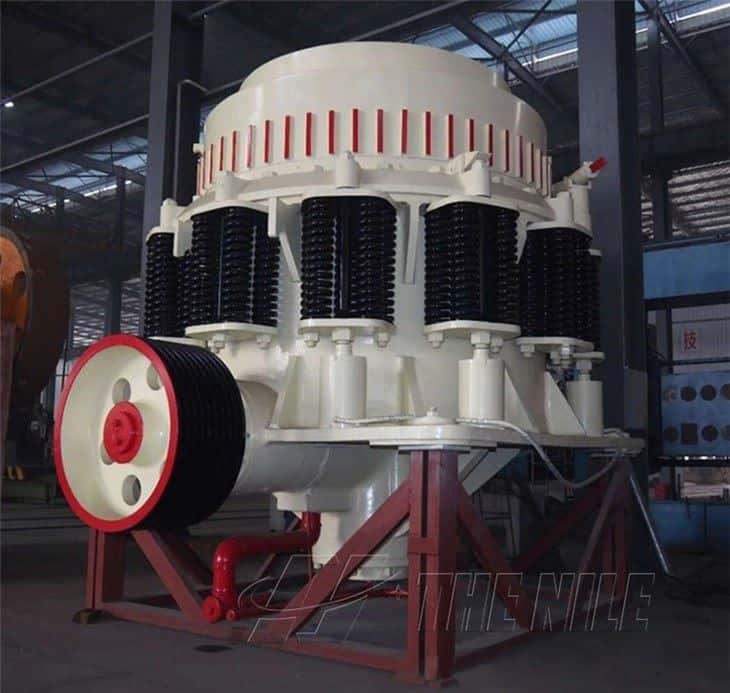

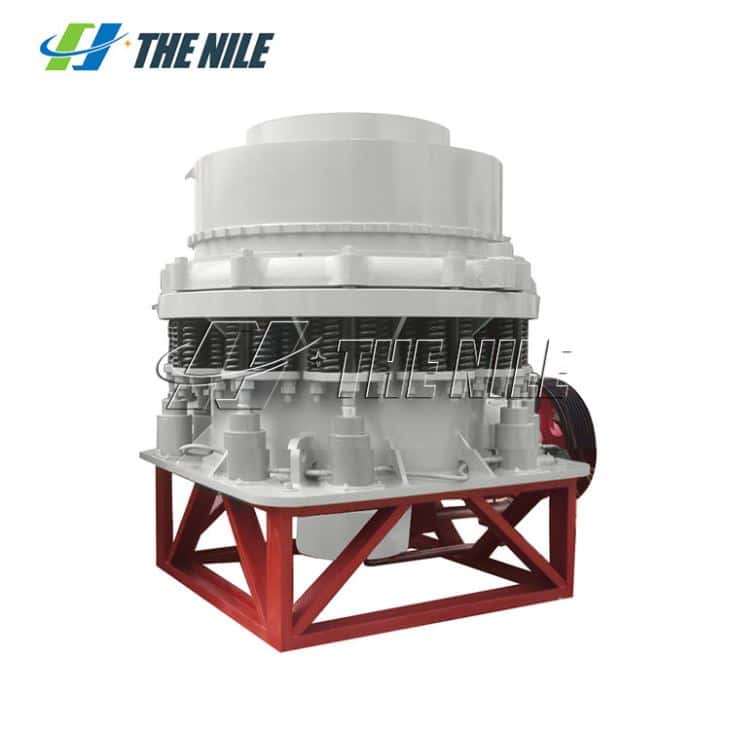

Product Description ofSymons Cone Crusher Instruction Manual
According to the customer's needs, the Symons cone crusher machine can be equipped with Symons Cone Crusher Instruction Manual or online guidance, which makes the Symons cone crusherhas the characteristics of large crushing ratio, high efficiency, the large amount of processing, low operating cost, and easy adjustment.
Features ofSymons Cone Crusher Instruction Manual
Unique structure, low operating costs
The body of the Symons cone crusher is a cast steel structure with strong ribs at heavy loads and good sealing performance.
Easy to operate
A stone cone crusher includes a hydraulic adjustment mechanism for quick adjustment of the size of the discharge opening of the Symons cone crusher.
The high degree of automation
The Symons stone cone crusher adopts a set of an external lubrication system.
High productivity
Modular design, through the replacement of cavity-type.
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |
