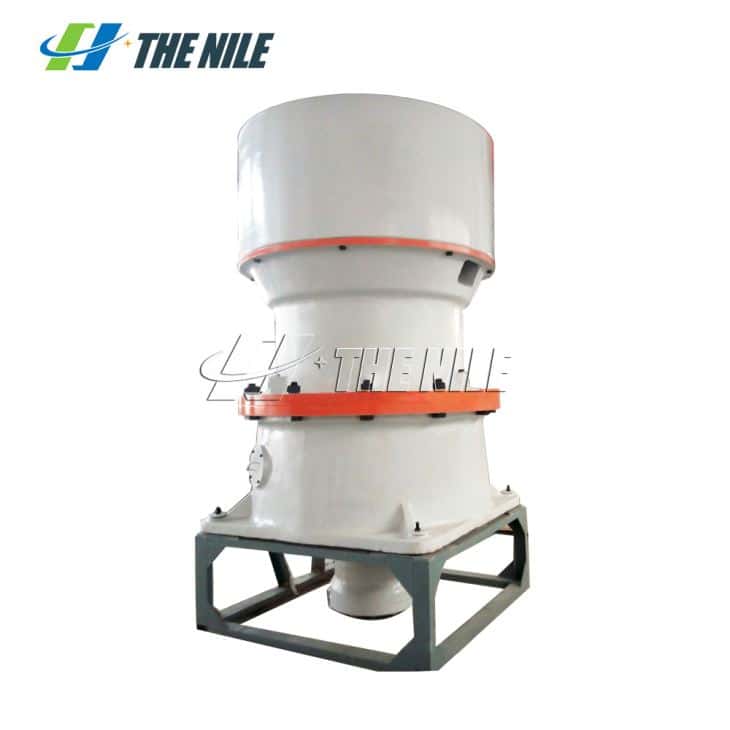

Stone Cone Crusher Machine

Product introduction

Stone Cone Crusher Machine is a new type of crusher which is our company independent research and development. It is produced with European and American country's advanced technology, based on 50 years in the crushing industry design, production, sales, and service experience.

Application:

Quarry, mining, coal mining, concrete batching plant, dry mortar, power plant desulfurization, quartz sand, etc

Material:

Cobble, granite, basalt, iron, limestone, quartzite, diabase, iron ore, gold ore, copper ore, etc.

Working Principle

When the cone crusher is working, the motor of the single-cylinder hydraulic cone crusher drives the eccentric sleeve by v-belts, transmission shaft, and transmission gear. Dynamic cone rotary pendulum moved with the action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation. Material is squeezed in the crushing cavity, impact and breakage, broken material discharged from the bottom.

Technical Parameter

Outstanding featuresfrom Single Cylinder Hydraulic Cone Crusher

1) Parts adopt high-quality steel, reliable performance, and operation more safety.

2) Use the overseas advanced technology, the configuration of the automation control system.

3) Adopts hydraulic oil station, low use cost.

4) Constant type cavity designed, automatic compensation liner wear and ensure full feed, improve the working efficiency.

5) A simple structure and wearing parts can be changed or repaired easily.

6) Strong ability to adapt because the user can choose different cavity types, according to different needs.

7) Reinforced frame structure and special bearing materials, large carrying capacity, high reliability, extend the service time of the equipment.
