1. Flexible transmission, automatic clearing
2. Energy saving, environmental protection
3. High performance and good product granularity
4. High reliability, easy maintenance and easy operation.
5. Wide range of application

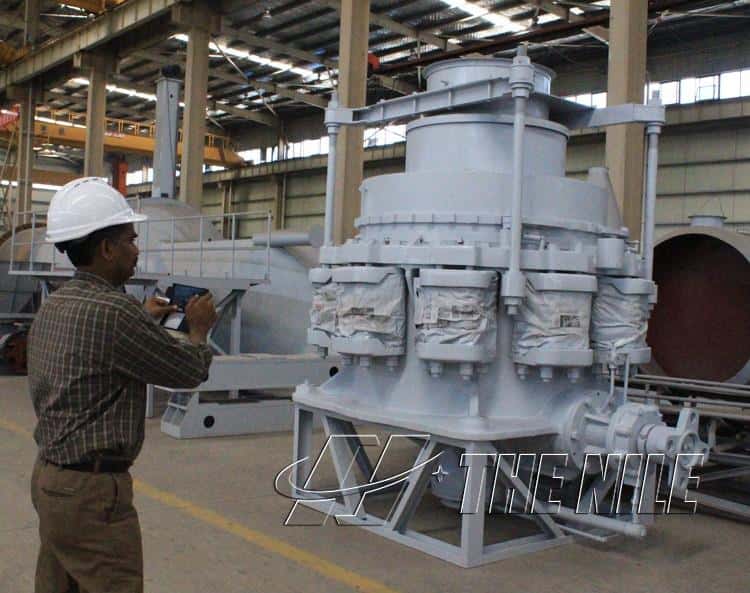

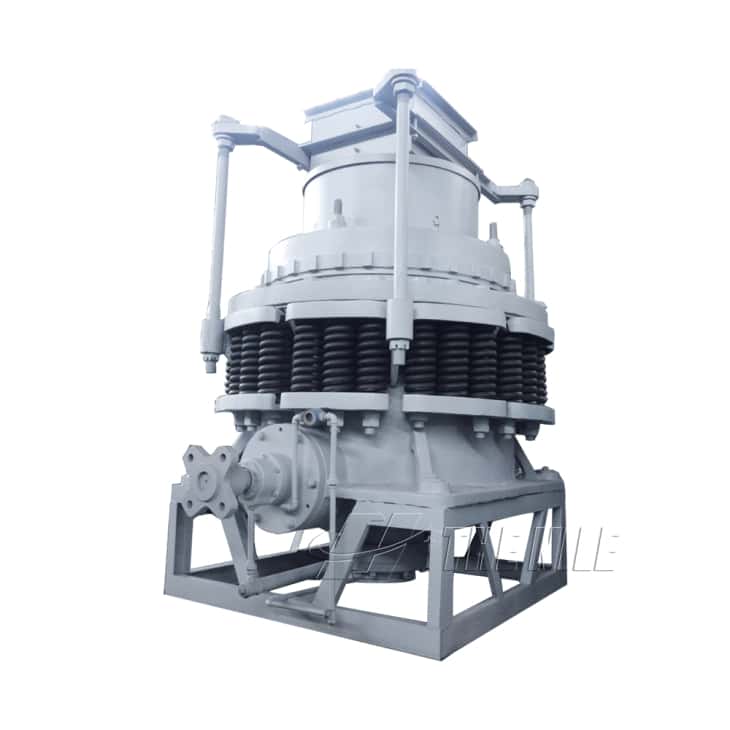

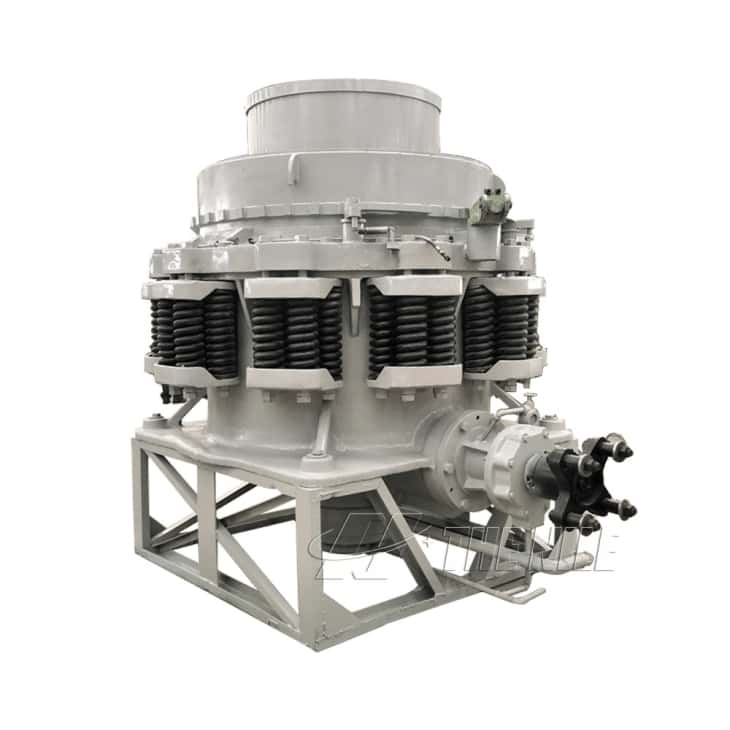

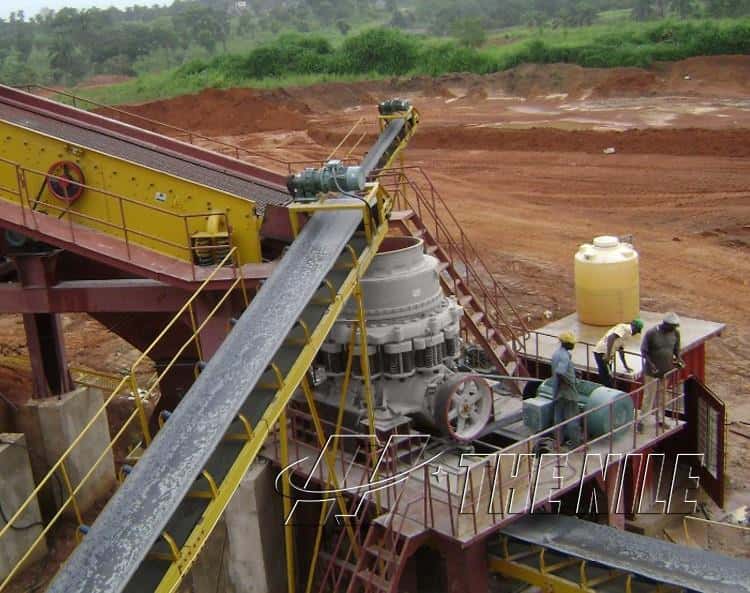

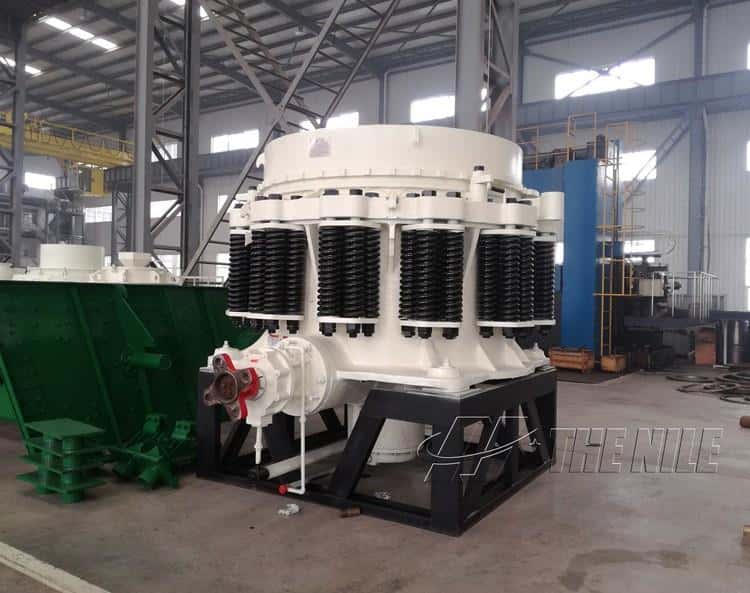

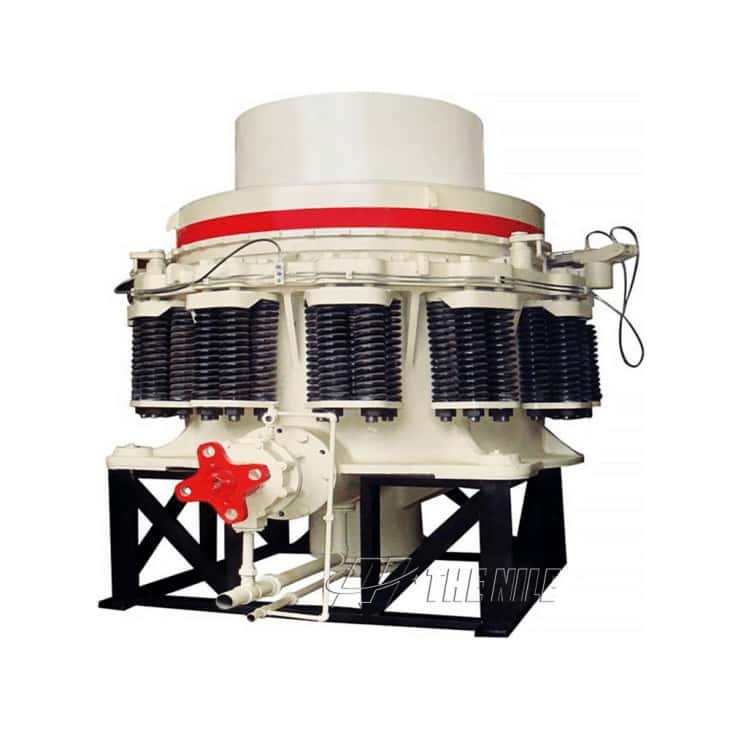

Spring cone crusher for quartz rock stone Spring cone crusher can crush materials of above medium hardness, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. And it is widely used in metallurgy, building, hydropower, transportation, chemical industry, etc. When used in production line, it can be used as secondary and tertiary crushing. |
| The Nile spring cone crusher feeding size is 65-300mm, discharge size is 3-60mm, capacity is around 5-1000t. |
Main Features
1. Flexible transmission, automatic clearing
2. Energy saving, environmental protection
3. High performance and good product granularity
4. High reliability, easy maintenance and easy operation.
5. Wide range of application

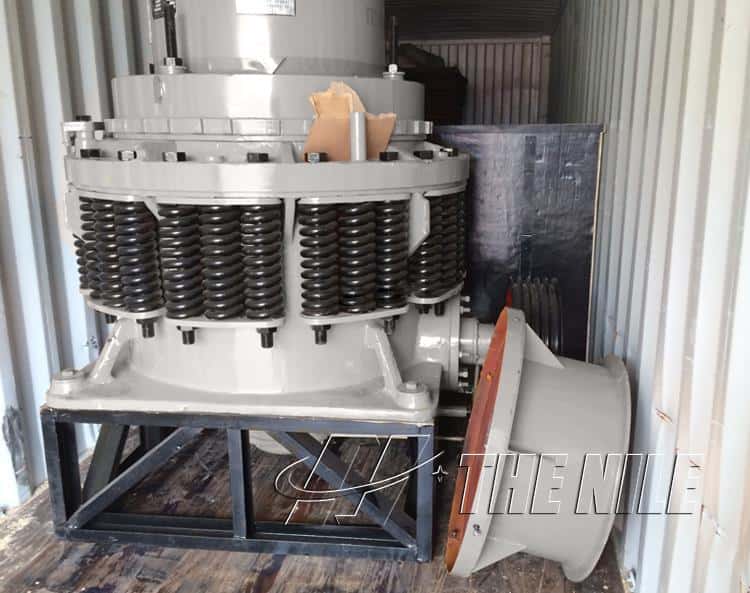

Packing&Shipping
Standard package in wooden boxes or containers
Our goal is to provide mining equipment of excellent quality and reliability, We have a strict quality control system in place throughout the entire production process, so our products are all of the highest quality and reliability. We also offer OEM service upon request. If you have a need for any mining equipment, or related spare parts, please feel free to contact us. We are dedicated to serving each of our customers to their complete satisfaction. |
Model NO. | Max. Feeding Size(mm) | Output Size | Capacity | Motor Power | Weight | Diemension |
PYB600 | 65 | 12-25 | 15-25 | 30 | 5.5 | 1740*1225*1940 |
PYZ600 | 45 | 5-18 | 8-23 | 30 | 5.5 | 1740*1225*1940 |
PYD600 | 36 | 3-13 | 5-20 | 30 | 5.5 | 1740*1225*1940 |
PYB900 | 115 | 15-50 | 50-90 | 55 | 11.2 | 2692*1640*2350 |
PYZ900 | 60 | 5-20 | 20-65 | 55 | 11.2 | 2692*1640*2350 |
PYD900 | 50 | 3-13 | 15-50 | 55 | 11.3 | 2692*1640*2350 |
PYB1200 | 145 | 20-50 | 110-168 | 110 | 24.7 | 2790*1878*2844 |
PYZ1200 | 100 | 8-25 | 42-135 | 110 | 25 | 2790*1878*2844 |
PYD1200 | 50 | 3-15 | 18-105 | 110 | 25.3 | 2790*1878*2844 |
PYB1750 | 215 | 25-50 | 280-480 | 160 | 50.3 | 3910*2894*3809 |
PYZ1750 | 185 | 10-30 | 115-320 | 160 | 50.3 | 3910*2894*3809 |
PYD1750 | 85 | 5-13 | 75-230 | 160 | 50.2 | 3910*2894*3809 |
