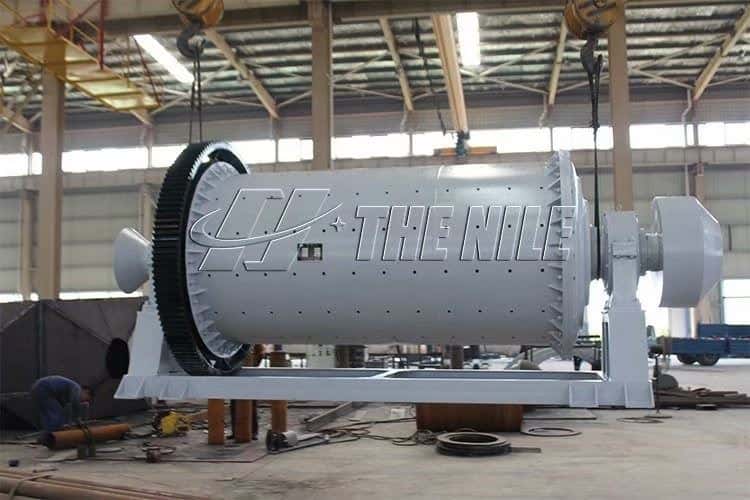

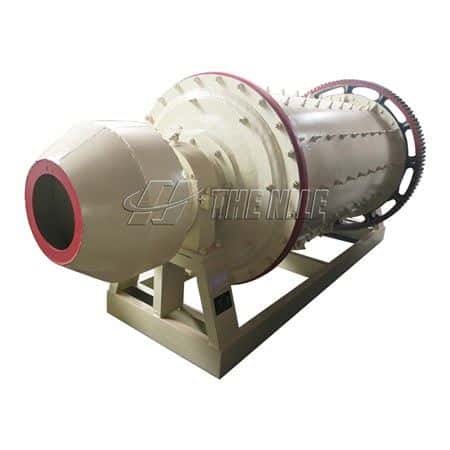

Ball Mill Stone Grinder

Structure of Ball Mill Stone Grinder

Ball mill stone grinder is composed of feeding part, discharging part, rotating part, transmission part (reducer, motor, electric control, small transmission gear), and other main parts.The hollow shaft of ball mill stone grinder is made of cast steel, the lining can be disassembled and replaced, the rotary gear is processed by casting hobbing, and the cylinder body is inlaid with a wear-resistant lining plate, which has good wear resistance. Ball mill grinder runs smoothly and works reliably and can be selected as a dry ball mill and wet grid type ball mill according to the material and discharging mode.

Working Principle of Ball Mill Stone Grinder

Ball mill stone grinder is a horizontal cylindrical rotating device, which is driven by the outer gear. The material enters the ball mill bin evenly by the feeding device through the feeding hollow shaft setting. There are stepped or corrugated lining plates in the bin, which is filled with steel balls with different specifications. The centrifugal force generated by the cylinder rotation will bring the steel balls to a certain height and then fall down, which will have a heavy impact and grinding effect on the mineral materials. After coarse grinding in the bin, the mineral materials enter the second bin through the single-layer partition board. The bin is inlaid with a flat-lining plate and steel balls inside to grind the material further. The finished powder is discharged through the discharge grate plate to complete the grinding operation.
