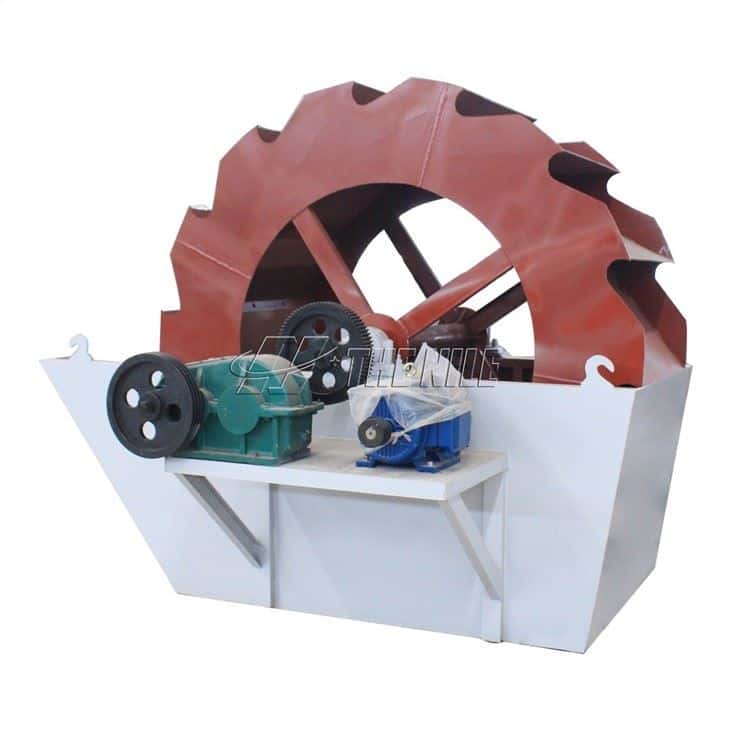

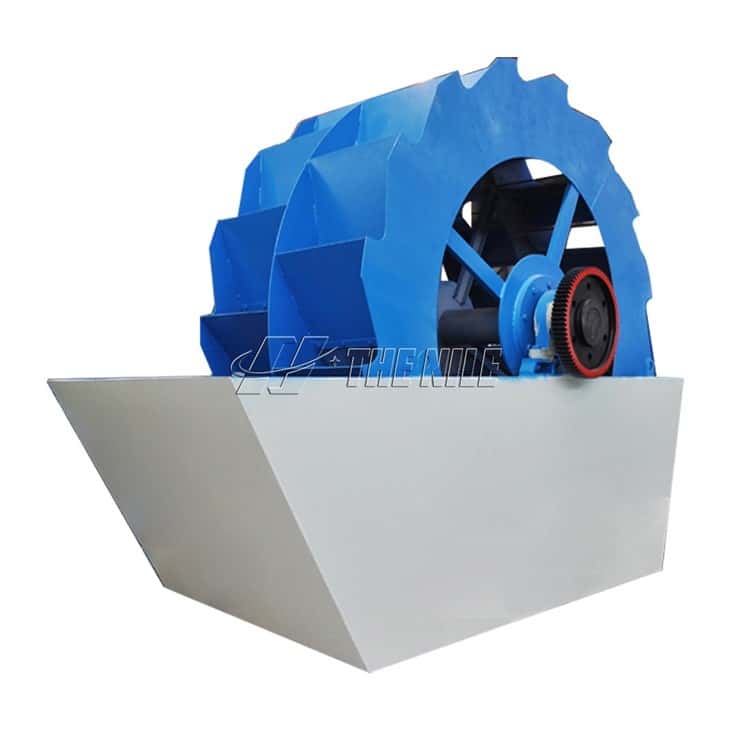

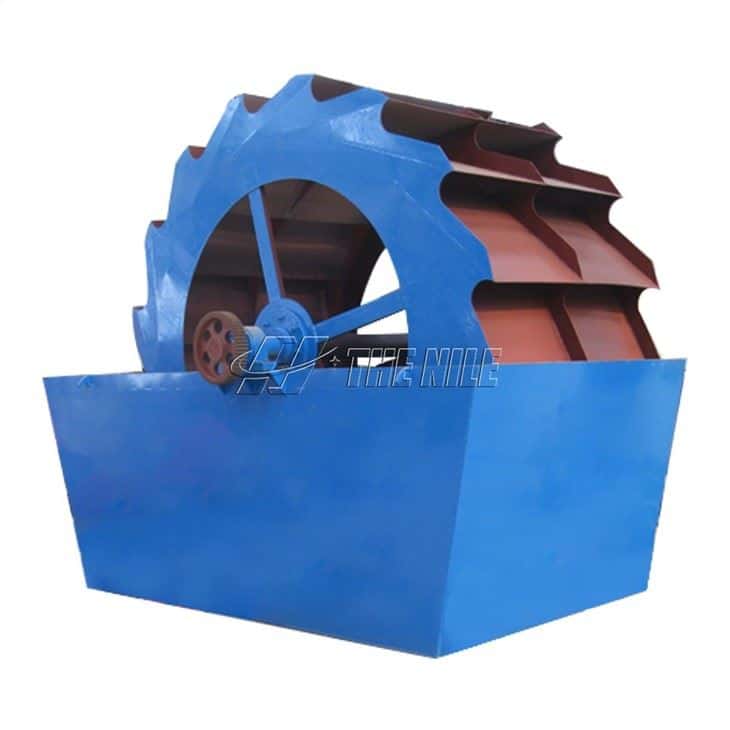

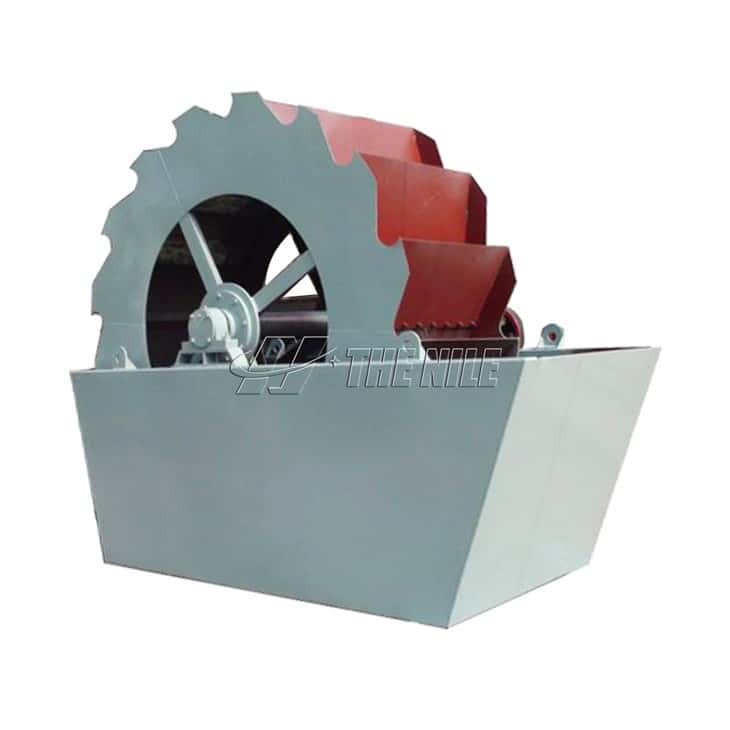

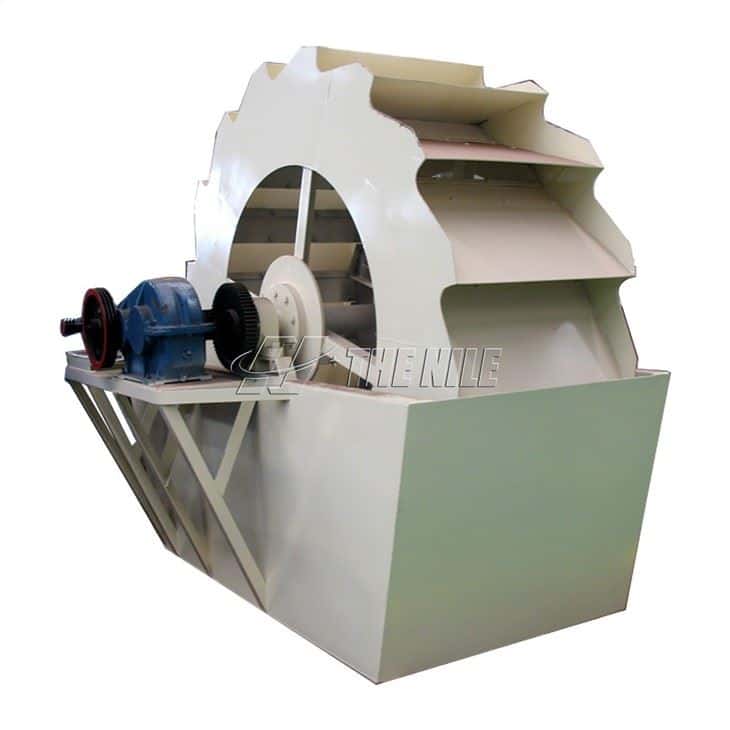

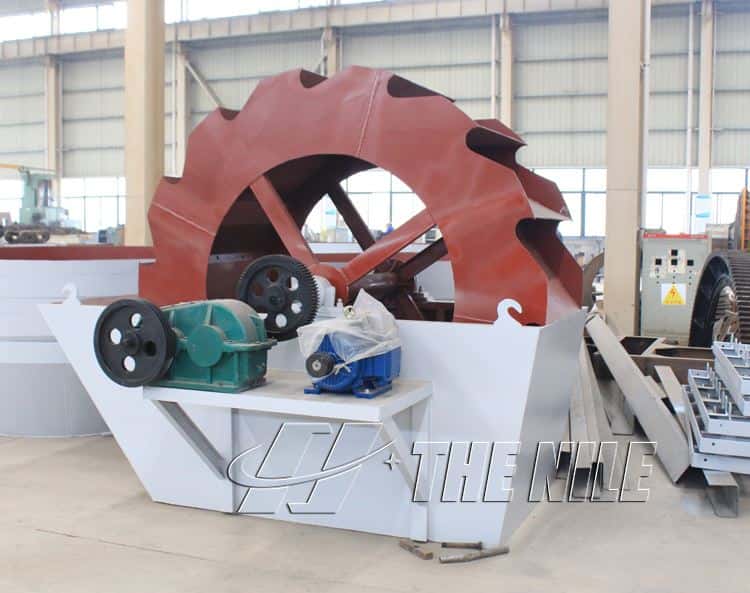

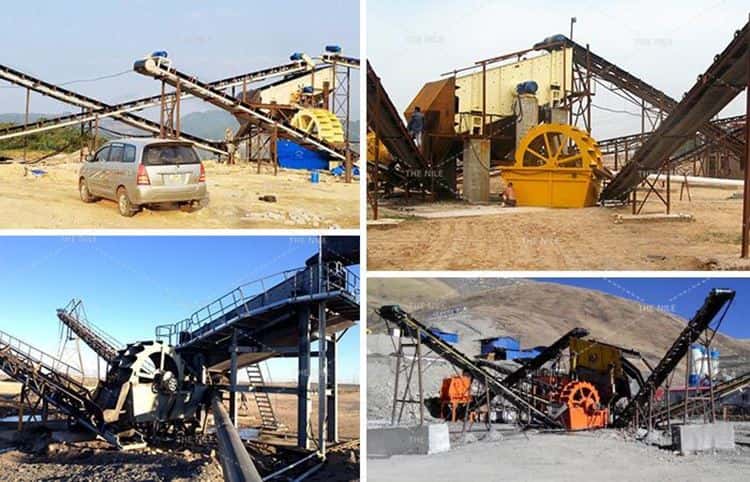

Bucket sand washing machine is washing equipment for sand and slag particles. The bucket wheel rotary sand washing machine can destroy the water vapor layer covering the sand while removing the impurities covering the surface of the sand and stone, so as to achieve the effect of high-efficiency sand washing.
Product description

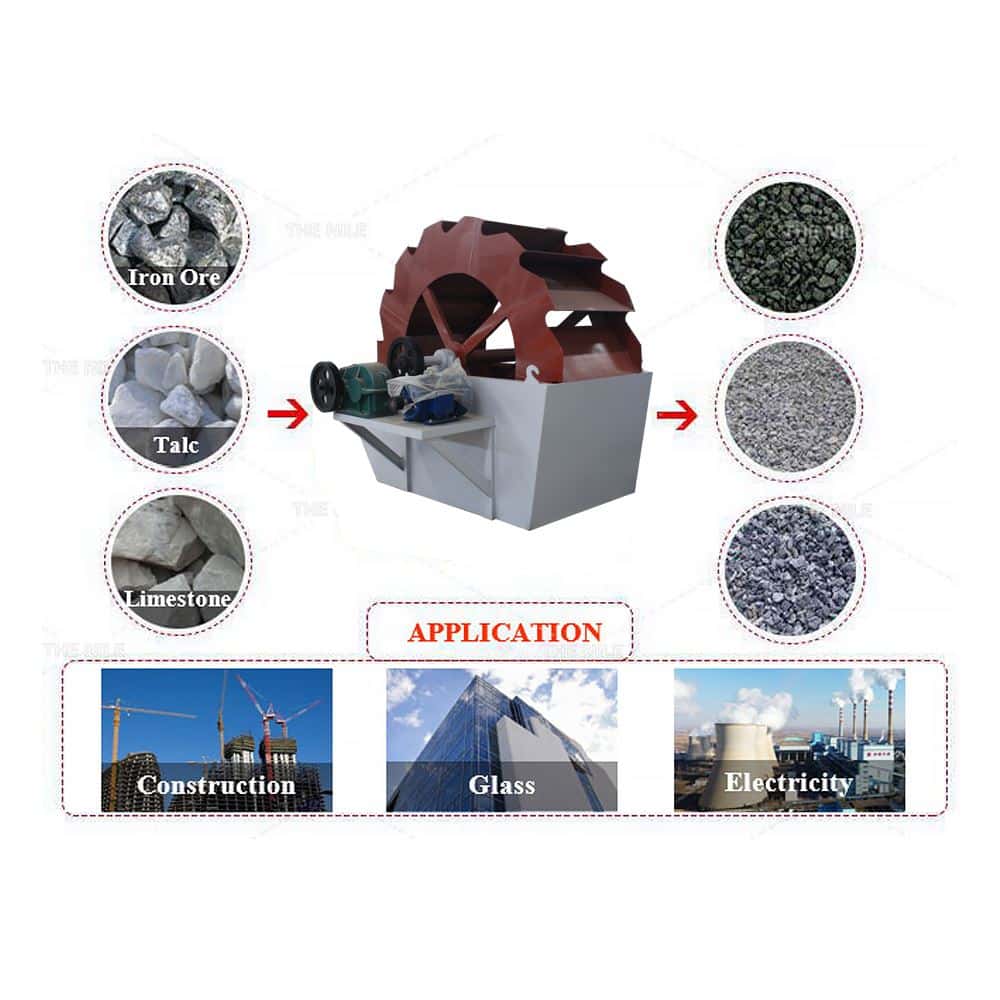

The wheel bucket sand washer is mainly used to clean the dust in the sand to achieve the purpose of cleaning the sand. Bucket-wheel sand dewatering washers are widely used in the washing and selection of materials in industries such as sand and gravel, mining, building materials, transportation, chemical industry, water conservancy and hydropower, and concrete mixing plants.
Features of wheel bucket sand washing machine for sale
1. Good environmental protection effect. The sand washing water of this equipment can be reused after simple treatment, with low water consumption and strong energy saving.
2. High recovery rate of fine sand, reasonable sand product gradation, and low mud content
3. Fast sand washing speed. This bucket-type sand washing machine runs smoothly, with high sand washing efficiency and fast speed.
4. When the bucket wheel sand washer cleans the sand, there is very little loss of fine sand and stone powder, and the gradation and fineness modulus of the washed construction sand meets the national construction sand standard.
Working principle of bucket sand washer machine
After the motor is decelerated by the V-belt, reducer, and gear, the impeller rotates slowly. The gravel enters the washing tank from the feeding trough and is tumbling under the impeller to wash the sand. Finally, the sand is poured from the rotating impeller into the discharge trough to complete the cleaning operation of the gravel.
Our service:
pre-sale service:
(1) Professional technicians provide customers with suggestions for model selection.
(2) Design and manufacture machines according to customers' special requirements.
After-sales service:
(1)) Arrange technicians to guide the installation
(2) If your machine is out of warranty, you can buy spare parts from us at the best price.
(3) Engineers can repair machines overseas
| Model | XSD2610 | XSD2816 | XSD3016 | XSD3620 |
| Bucket diameter(mm) | 2600 | 2800 | 3000 | 3600 |
| Rotation speed(r/min) | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity(t/h) | 20-50 | 30-70 | 50-100 | 80-150 |
| Power(kw) | 7.5 | 11 | 15 | 18.5 |
| Weight(kg) | 2.7 | 5.3 | 6.5 | 9.8 |
| Dimension(mm) | 3321*2312*2683 | 3810*2820*2883 | 3830*2972*3200 | 4456*3479*3688 |
