This Screw Sand Washer is widely used in sand yard, mine, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries.
Product Description
This kind of Screw Sand Washer is the washing equipment of artificial sandandnatural sand.Itis widely used in sand yard, mine, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries.It has theoutstandingadvantages of reasonable structure, convenient maintenance, large processing capacity, low power consumption and high degree of cleaning.
In addition, the Screw Sand Washer adopts a novel sealing structure, a fully enclosed oil bath type transmission device, and an adjustable overflow weir plate, which ensures the high efficiency and durability of the product. It has less loss of washed materials and high selective washing efficiency, which can fully meet the requirements of high-grade materials. It also separates the bearing from water and materials to avoid damage caused by premature contamination and rusting of the machine.Besides, the Screw Sand Washer can remove the impurities covering the surface of sand and destroy the water vapor layer covered with sand, to facilitate dehydration so as to effectively wash sand.It is very popular with our clients due to high efficiency.
Working Principle When the spiral sand washing machine works, the constant sharp motor drives the impeller to rotate slowly after the gear slows down through the triangle belt, the reducer and the gear decelerates. The sand and stone feed groove enters the washing tank, rolls under the drive of the impeller, and grinds each other to remove the impurities covered with sand and stone, and at the same time destroy the water vapor layer covered with sand particles in order to facilitate dehydration. At the same time, add water to form a strong flow, take away impurities and small. |

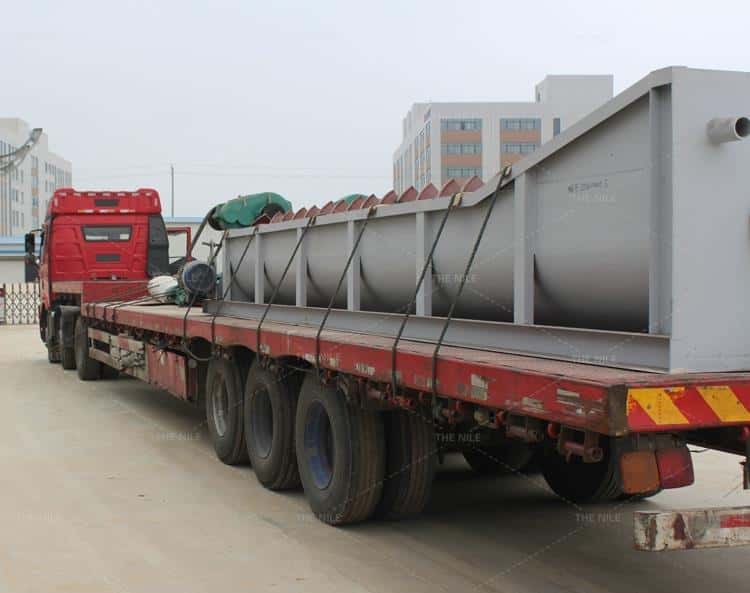

Packing and shipping
FAQ Q1: Are you factory or trade company? A1: We are factory. Q2: Where your products have been exported before? A2: Our products have been sold to South Asia, Africa, South America, middle East and so on. Q3: How will you help the customer to install the equipment? A3: Our senior engineer will guide the installation and commissioning as well as the initial production at Q4: How about the wear parts supply? A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved. Q5: What about the payment method? A5: T/T, L/C Paypal is available Q6: What about after-sale service? A6: 12 months warranty for all kinds of products. |
Mode | Diameter(mm) | Capacity(t/h) | Power(kw) | Weight(kg) |
LSX-508 | 508 | 10 | 5.5 | 2800 |
LSX-610 | 610 | 20 | 7.5 | 3250 |
LSX-750 | 750 | 50 | 7.5 | 3820 |
LSX-915 | 915 | 60 | 11 | 4550 |
LSX-1200 | 1200 | 95 | 15 | 6900 |
LSX-1500 | 1500 | 130 | 18.5 | 8800 |
