Applied Field: Mobile crushing equipment is suitable for all kinds of quarries and screening construction demolition waste, mine metallurgy and energy operations.

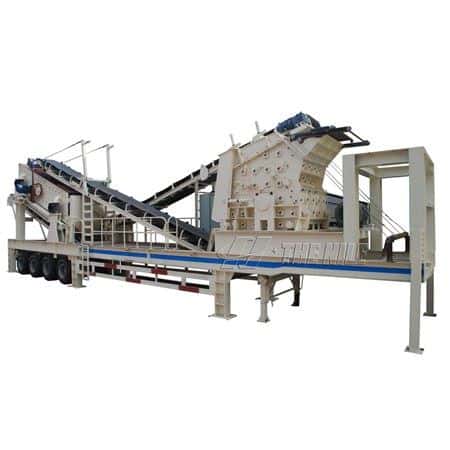

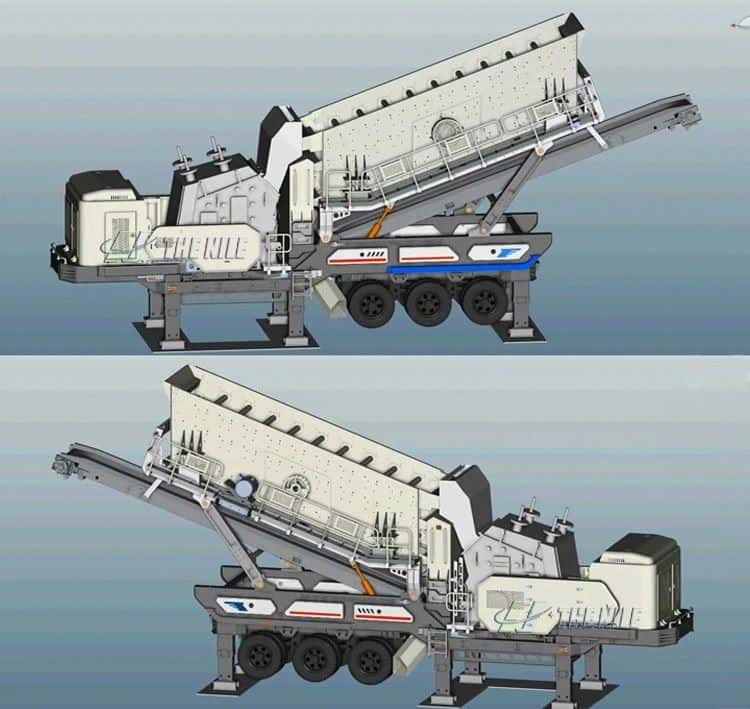

Introduction of Mobile Crushing Equipment
Mobile crushing equipment can meet the climbing operation and screening requirements of mine, hydropower station, coal mine, and other projects. It is often used with crawler type mobile crushing station or tire type mobile crushing station for the crushing and screening of construction waste, rocks, ore, old asphalt concrete, and other materials.
Performance Characteristicsof Mobile Crushing Equipment
1.Mobile crushing equipment is equipped with a high-performance screening box.
2.Mobile crushing equipment adopts automatic screening movement and adjustment, which greatly increasing the screening efficiency.
3.Strictly manage all operating units to improve the life and reliability of mobile crushing equipment.
4.Mobile crushing equipment has low noise and low emission.
5.Mobile crushing equipment makes the integration of moving, screening, and discharging by using hydraulic technology to improve work efficiency.
6. Mobile crushing equipmentautomatically separate steel bars and screen out qualified production aggregates.
Technical Parameters ofMobile Crushing Equipment
Mobile Crushing Equipment | PP1010PFS | PP1210PFS | PP1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Diemension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
