Applied Field: Mobile stone crusher is suitable for crushing soft, medium hard and extremely hard materials. Mobile stone crusher is widely used in smelting, building materials, highway, railway, water conservancy and chemical industries.

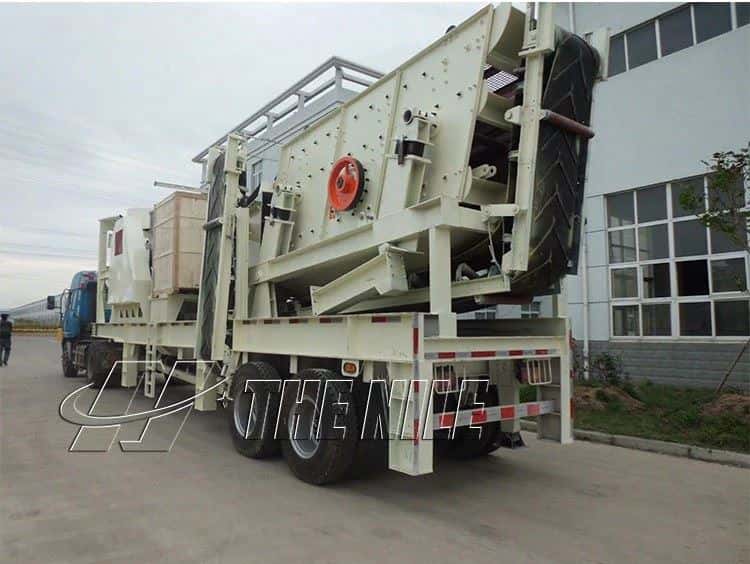

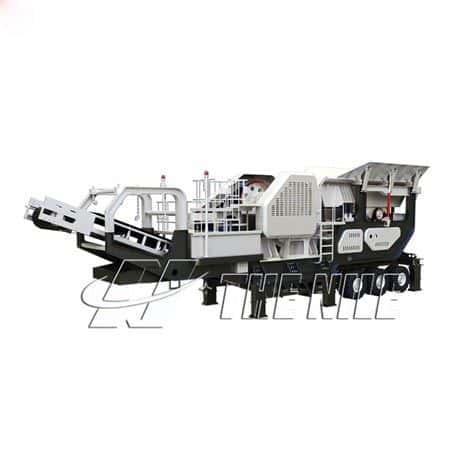

Structure of Mobile Stone Crusher
Mobile stone crusher is crushing equipment composed of jaw crusher and vibrating feeder and equipped with efficient double-layer feeder. The double-layer feeder can reduce the throughput of the jaw crusher and can also increase the total output. Mobile stone crusher is mainly used in primary crushing products of quarrying with the processing range of 50-500 T / h.
Characteristics of Mobile Stone Crusher
1.Mobile stone crusher can be used for the climbing operations to meet the crushing requirements of mine, hydropower station, coal mine, and other projects.
2.The mobile stone crusher has lightweight and small size, which are especially suitable for working in narrow places.
3.The mobile stone crusher saves fuel with a fuel-saving rate as high as 25%.
4.The mobile crushing station has the advantages of convenient transportation, crawler walking, no damage to the road surface, equipped with multi-functional accessories, and wide application range.
5. Mobile stone crusher is equipped with a power unit - optimization design.
Technical Parameters of Mobile Stone Crusher
Mobile jaw crusher plant | PP600 | PP750 | PP900 | PP1060 | PP1200 | PP1300PEX | |
Crusher plant size | Length(m) | 8.6 | 9.6 | 11.1 | 13.3 | 15.8 | 9.4 |
Width(m) | 2.5 | 2.5 | 3.8 | 2.9 | 2.9 | 2.7 | |
Height(m) | 3.8 | 3.5 | 3.5 | 4.4 | 4.5 | 4.0 | |
Jaw crusher | Feed size(mm) | 340 | 425 | 500 | 630 | 750 | 250 |
Output size(mm) | 40-100 | 50-100 | 65-160 | 230-290 | 195-265 | 20-90 | |
Capacity(t/h) | 16-60 | 40-110 | 50-180 | 230-290 | 315-500 | 16-105 | |
Motor power(kw) | 30 | 55 | 75 | 90 | 160 | 55 | |
Vibrating feeder | Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-60 |
cubage(m3/h) | 3 | 4 | 7 | 10 | 10 | 3 | |
Width(mm) | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 | |
Conveyor belt | Width(mm) | 400 | 500 | 500 | 650 | 800 | 500 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | 0.8-2 | 1.0-2 | 0.8-2 | |
