1. High-performance sand stone processing equipment,with large handling capacity,high rate of sand production,good grain shape.
2. Moving easily,Compact structure and simple operation, compact structure and simple operation.

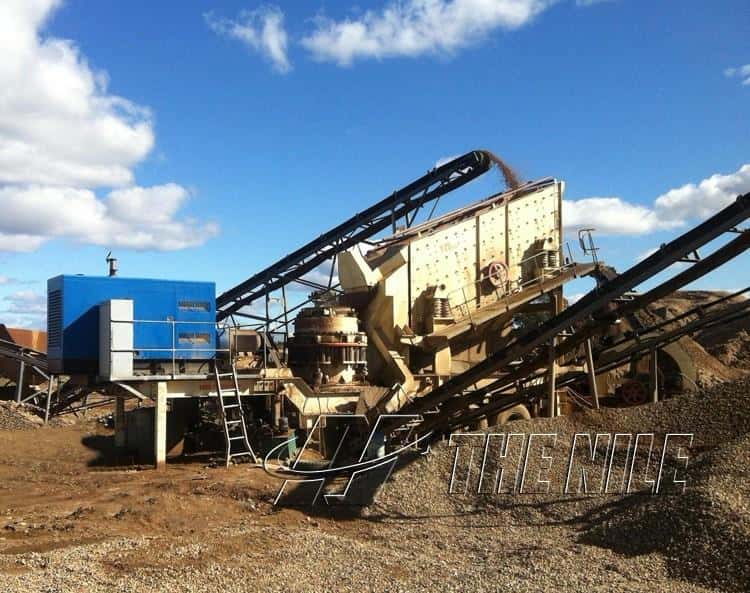

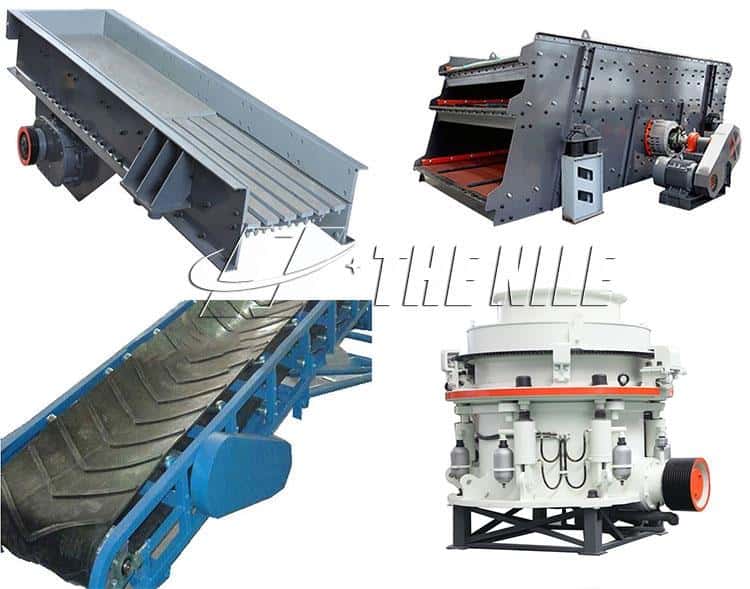

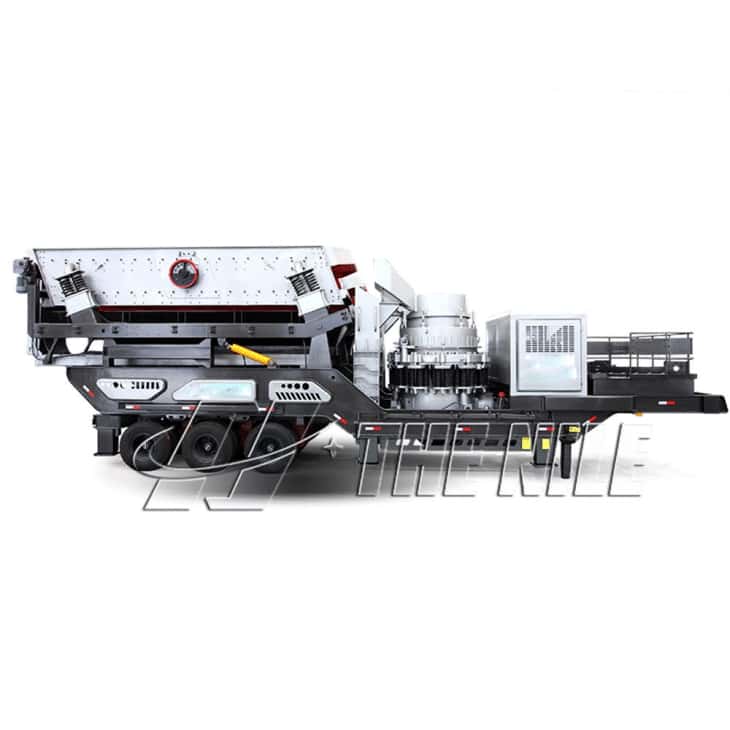

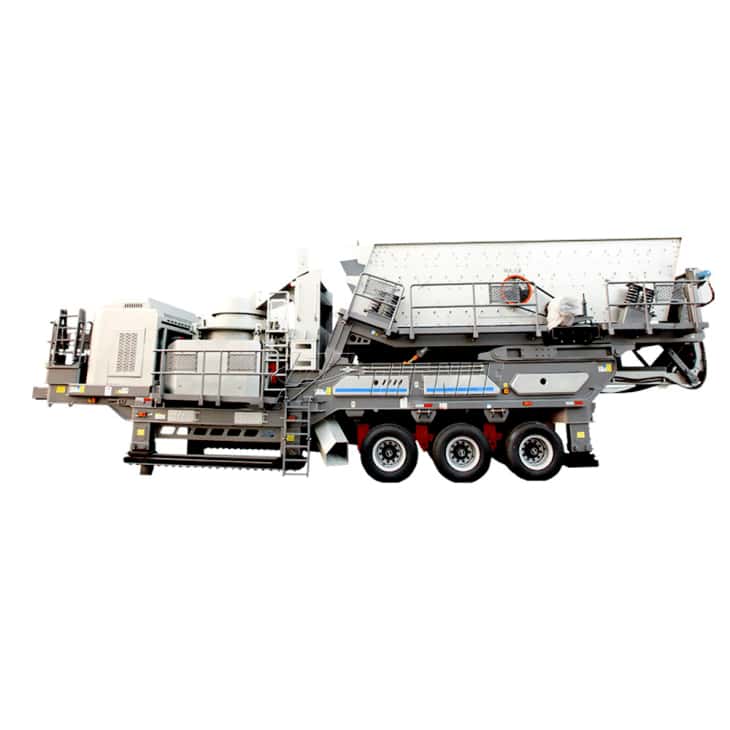

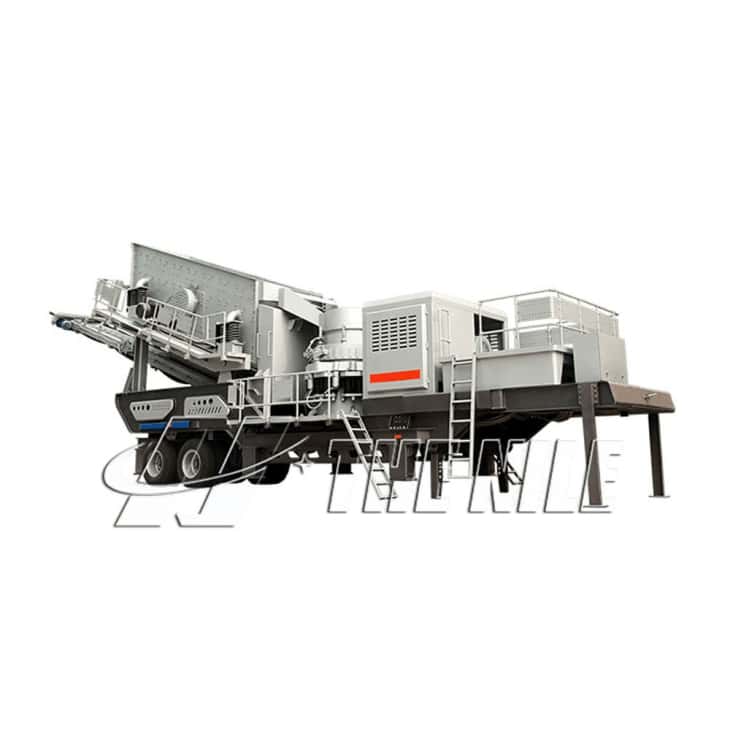

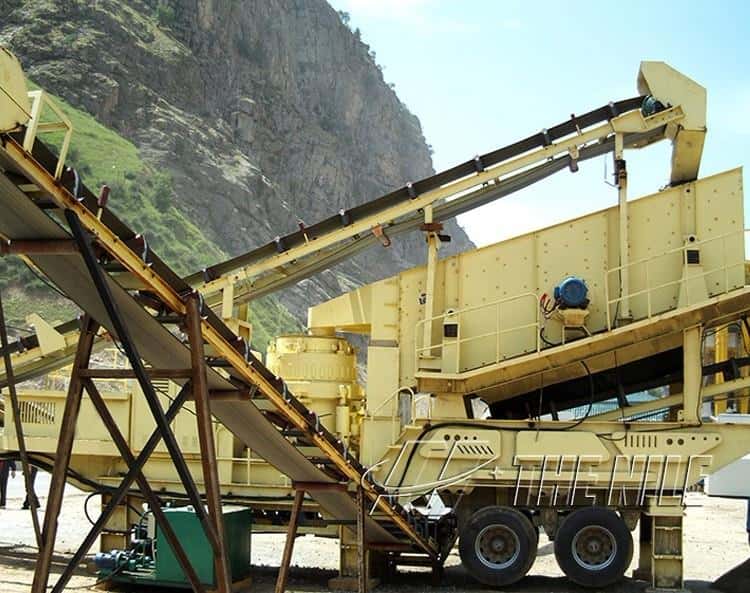

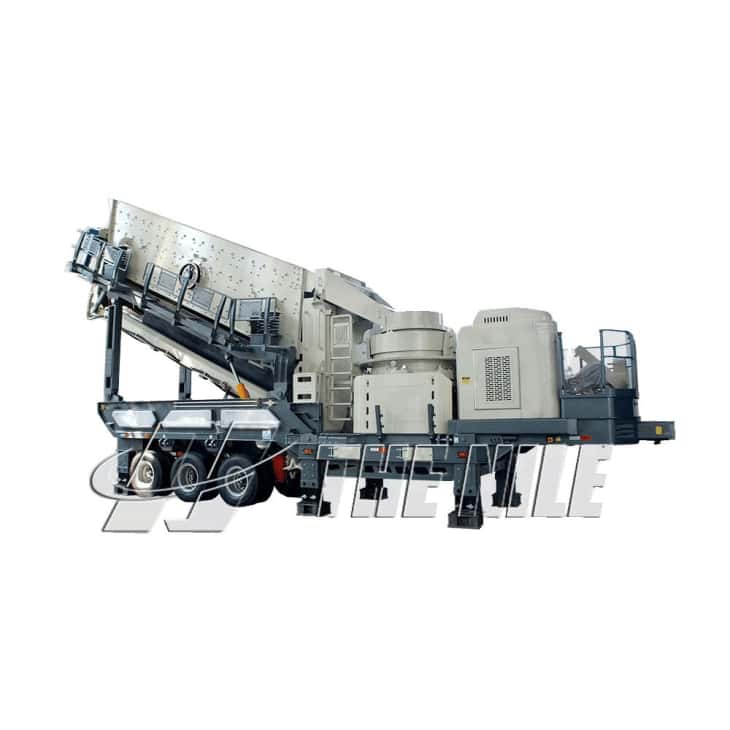

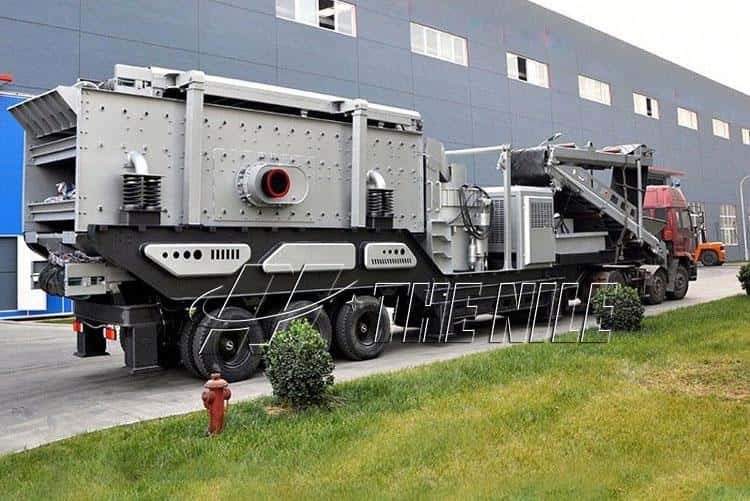

Mobile cone crusher station The Nile Mobile Cone Crusher Station is mainly composed of high efficiency cone crusher, high performance vibrating screen, belt conveyor, motor and control box. It is a new type crushing equipment researched and designed by The Nile's experienced engineers. |
| The machine adopts the integrated group operation mode, can work separately, eliminates the complex site infrastructure and auxiliary facilities installation of the split-component, and reduces the man-hour consumption. |
| The cone crusher can be adjusted to different crusher cavity type according to the actual need, which expands the application field of mobile cone crusher station. |
Details
←No more
Mobile cone crusher plant | PP120SMHS | PP180SMHS | PP250SMHS | |
Crusher plant size | Length(m) | 11.2 | 11.8 | 12.3 |
Width(m) | 2.7 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 150 | 225 | 290 |
Output size(mm) | 5-13 | 5-13 | 5-13 | |
Capacity(t/h) | 55-240 | 90-430 | 100-610 | |
Motor power(kw) | 160 | 220 | 315 | |
Vibrating feeder | Capacity(t/h) | 130-260 | 300-350 | 400-500 |
Motor power(kw) | 15 | 22 | 22 | |
Dimension(m) | 4.3*1.8*1.4 | 5.9*1.8*1.5 | 6.0*1.9*1.4 | |
Conveyor belt | Width(mm) | 650 | 800 | 800 |
Speed(m/s) | 0.8-2 | 1.0-2 | 1.0-2 | |
