High Efficiency Fine Crusher

Fine impact crusher  is widely used for the fine crushing of many kinds of minerals such as granite, basalt, limestone, river cobble, cement clinker, quartz stone, iron ore, and bauxite, and at the same time, it can also be used for producing excellent stone materials in artificial sand making, high-grade highway, railway, water conservancy, airport, building, cement, refractory and metallurgical industry.

Application

Fine Impact Crusher is used to crush brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100Mpa; the surface waters no more than 15%.

Features

Fine impact crusher is suitable for the fine crushing and medium crushing of man many kinds of hard and crisp materials such as refractory, cement, silica sand and steel grit. It is highly efficient and energy saving, and saves energy by 50% compared with traditional tertiary impact crusher, so that it is the most advanced tertiary impact crushing equipment in the world.

Advantages

1. Large feeding size and high crushing ratio.

2. Perfect cubic shape product and stable structure.

3. Convenient discharge opening adjustment for different product sizes.

4. High chromium hammer and unique lining plate suitable to crush hard stones efficiently.

5. The long service life of hammers, impact plates, and lining plates.

Working Principle

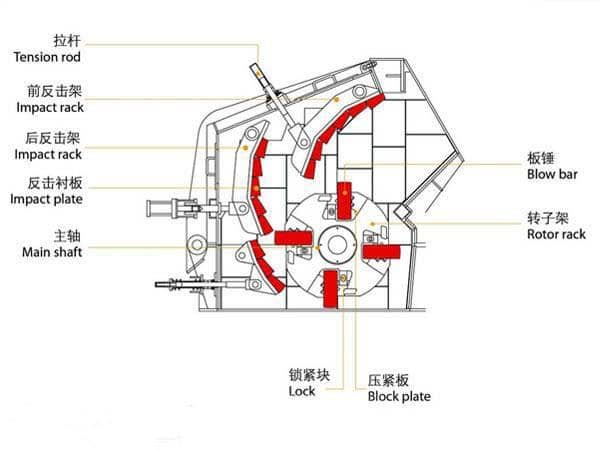

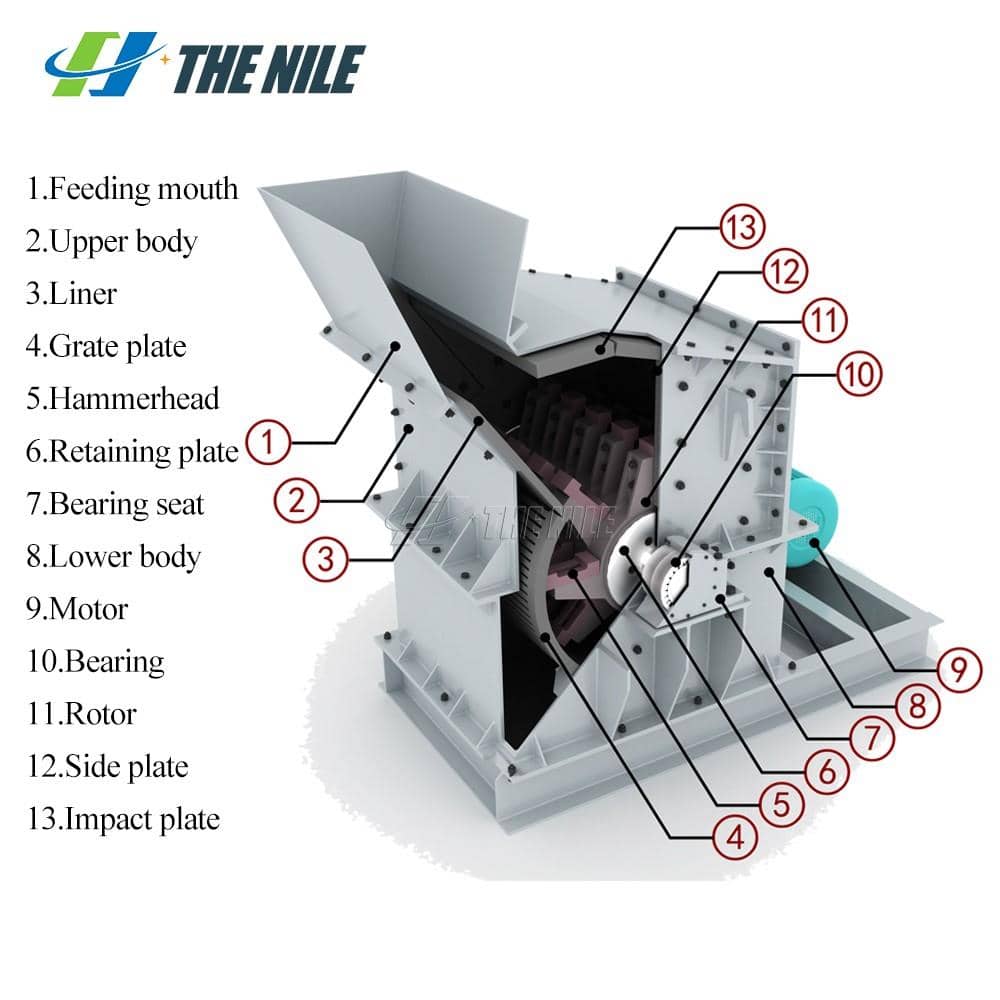

When the fine  impact crusher works, driven by the electromotor, the rotor rotates with high speed, and the materials go into the first crushing chamber and are crushed with the plate hammer of the rotor, and then go into the secondary crushing chamber for grinding, and finally the materials are discharged from the discharging mouth.

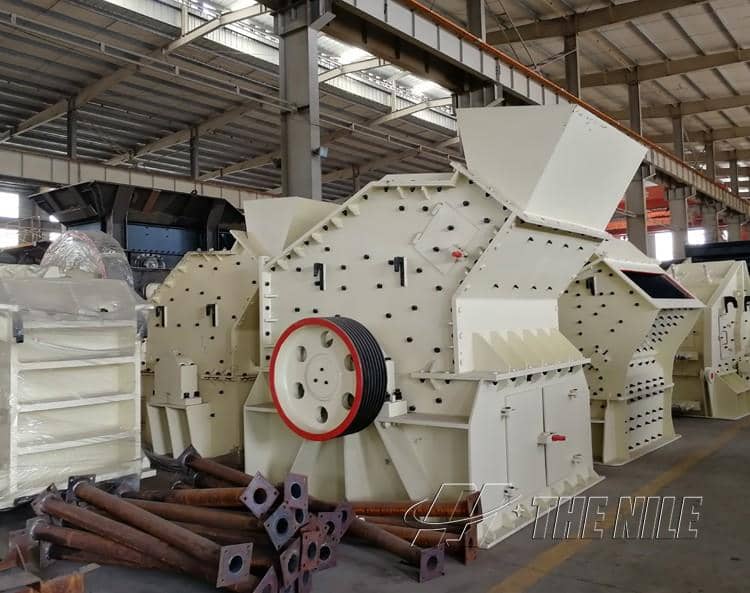

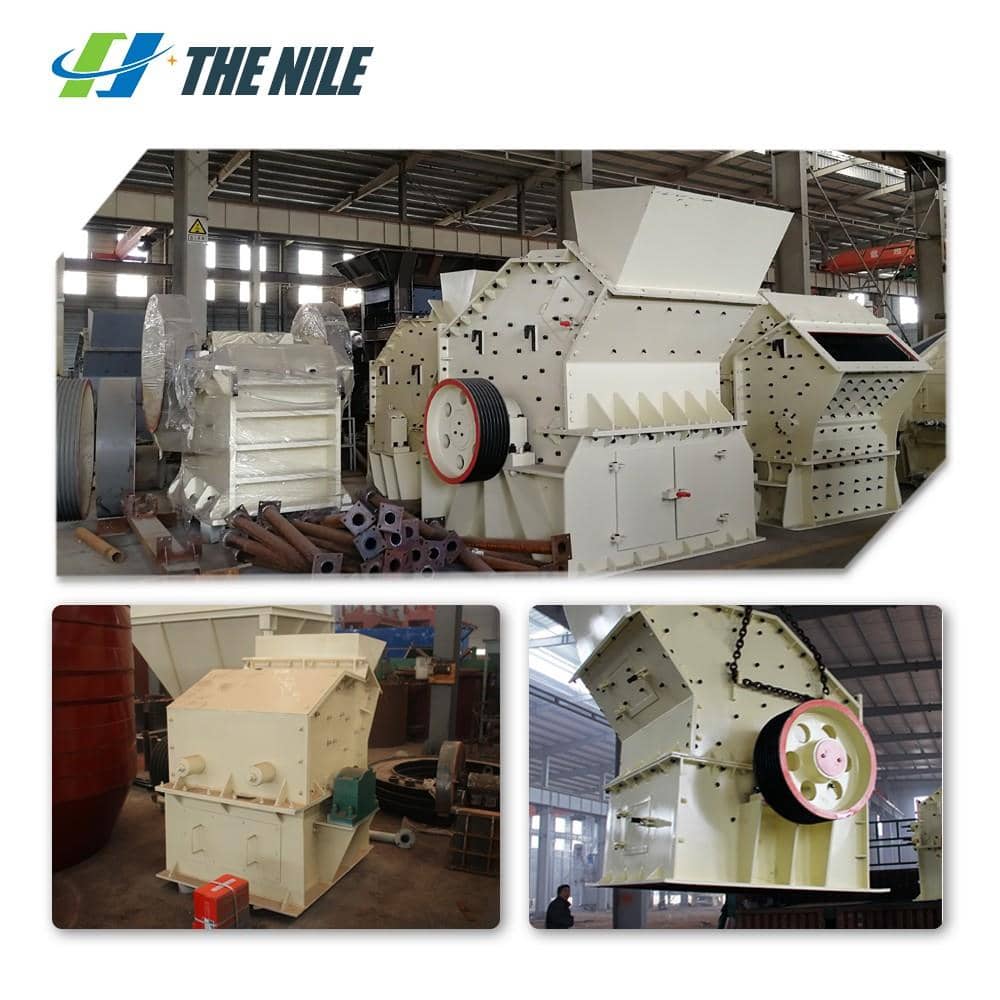

Production Site：
