Symons Cone Crusher

The cone crusher of PSG series is widely used in the industries of metallurgy, building material, road construction, chemical engineering, and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above.

Application

It is widely used in the industries of metallurgy, building material, road construction, chemical engineering, and silicate. Symons cone crusher is suitable for crushing all kinds of ores and rocks with hardness of medium or above.

Working principle

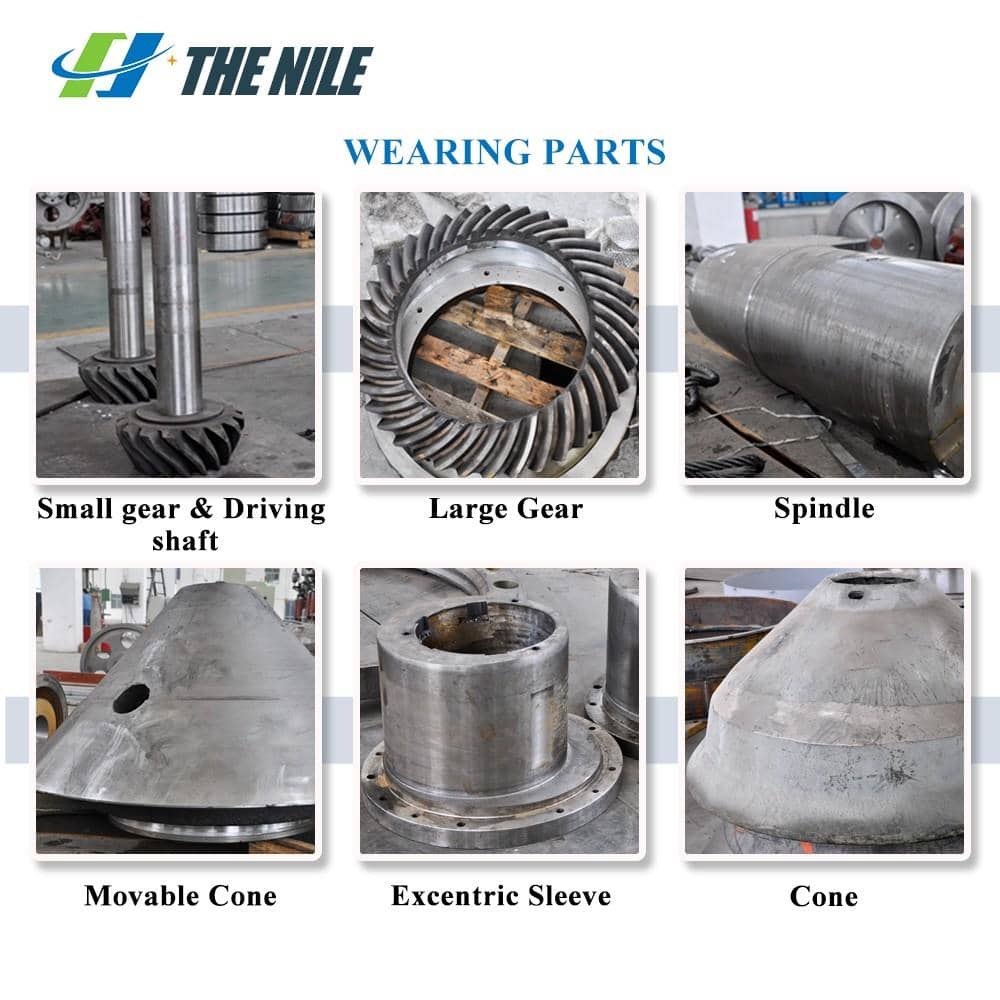

When it is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

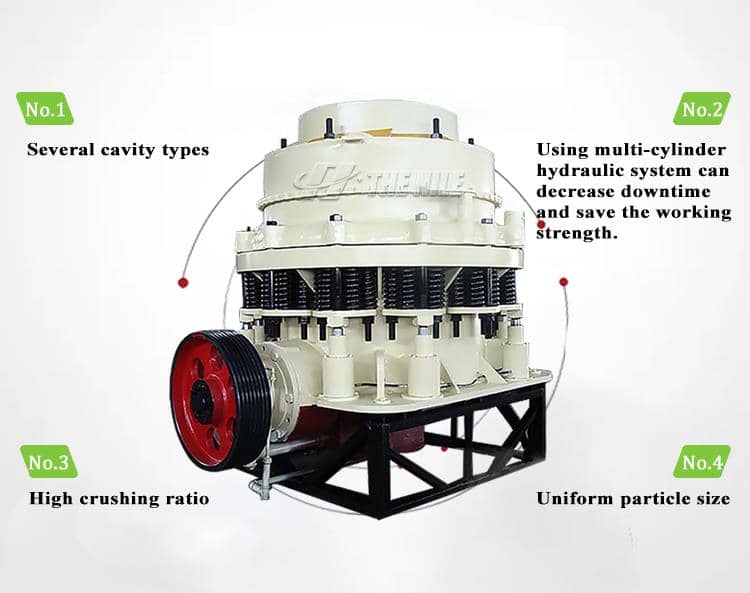

Features

1. Moving cone turns continuously. the crushing and discharge process is along the working surface, high productivity;

2. The material is sandwiched between two pyramids, and it is easy to be crushed, low power consumption;

3. Even product size, cubic shape, the surface of the moving cone is even wearing.

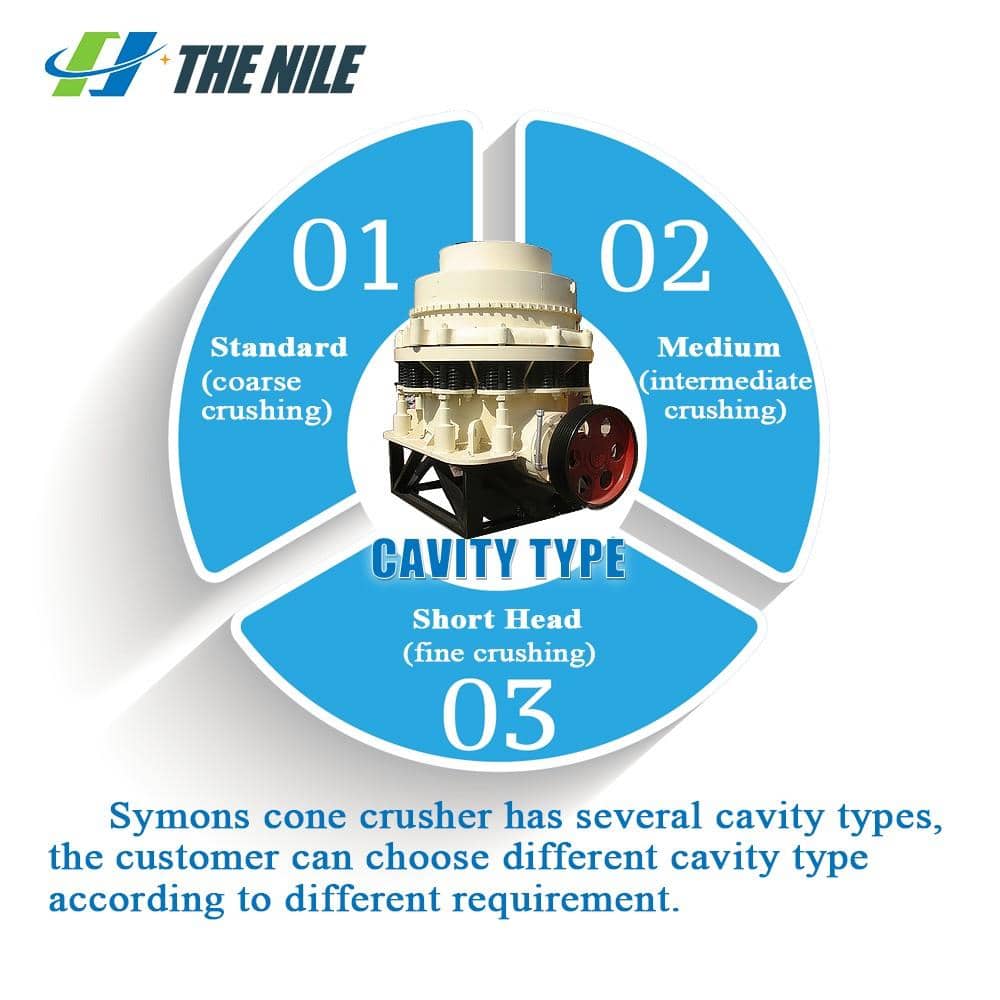

Type of  Symons Cone Crusher for Sale

1. This machine has two types: the standard type and the short head type.

2. Standard type has a larger discharge opening, and produce the coarser crushed product. It is generally used for   medium and course material,

3. The short head type has a steep crushing cone, which can influence the discharge size, and it is mainly used to produce finely crushed.

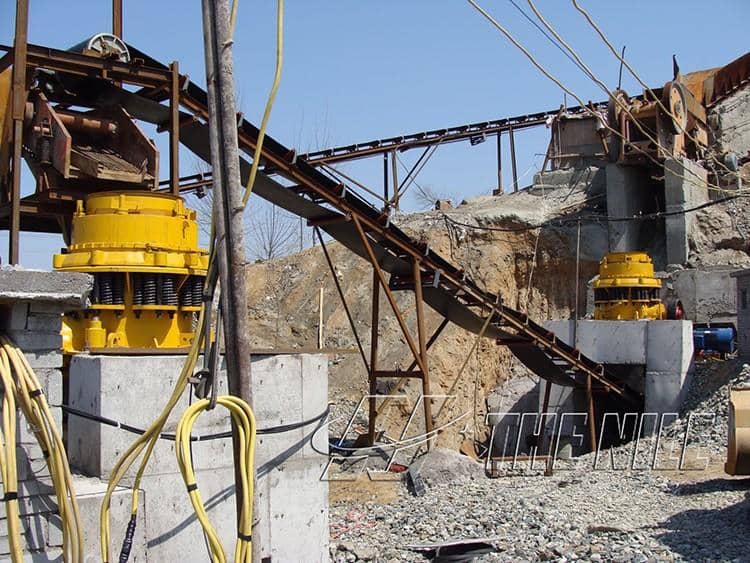

Product Site
