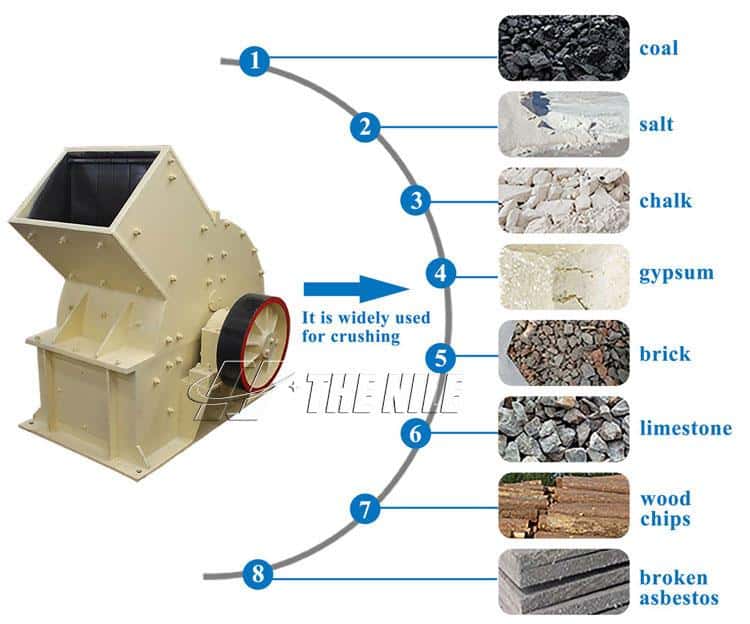

Hammer crusher is used to break many kinds of materials with medium hardness and weak abrasion. The compressive strength of materials is no more than 15%. The crushed materials include coal, salt, gypsum, tile, limestone, etc. Also used to crush the fiber structure, elastic and stong toughness of asbestos cement fertilizer, and recover asbestos fiber.The Nile hammer crusher feeding size is around 250mm, minimum discharge size is less than 10mm, capacity is around 5-200t per hour.
Technical Parameters
Model No. | Max. Feeding Size | Output Size | Capacity | Motor Power | Weight | Overall Diemension |
PC400*300 | 100 | ≤10 | 5-10 | 11 | 0.8 | 850*950* 880 |
PC600*400 | 120 | ≤15 | 10-25 | 18.5 | 1.5 | 1000*1000*1300 |
PC800*600 | 120 | ≤15 | 20-35 | 55 | 3.1 | 1515*2590*1040 |
PC1000*800 | 120 | ≤15 | 20-40 | 110 | 7.9 | 3200*2210*1515 |
PC1000*1000 | 120 | ≤15 | 30-80 | 132 | 8.65 | 3515*2230* 1515 |

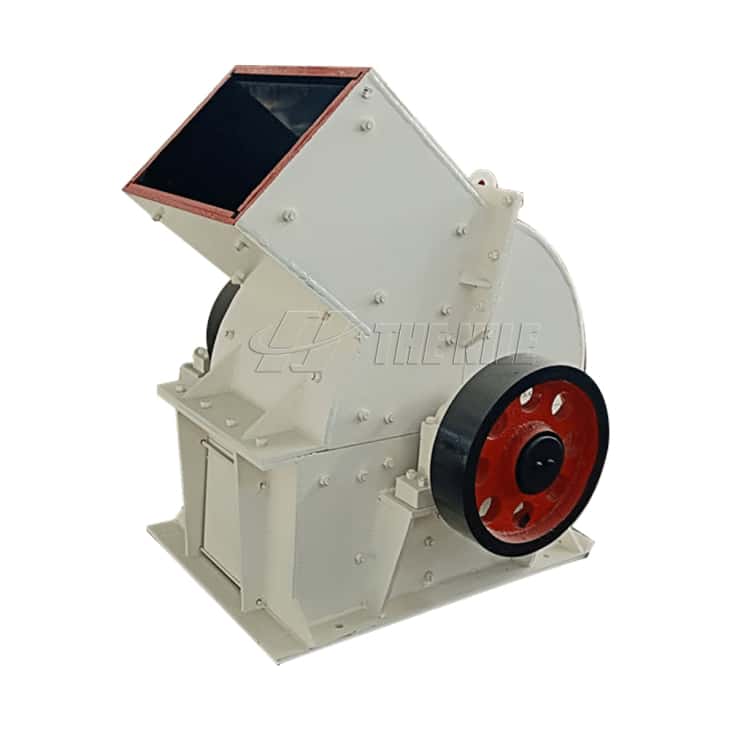

Product Description ofHammer Crusher

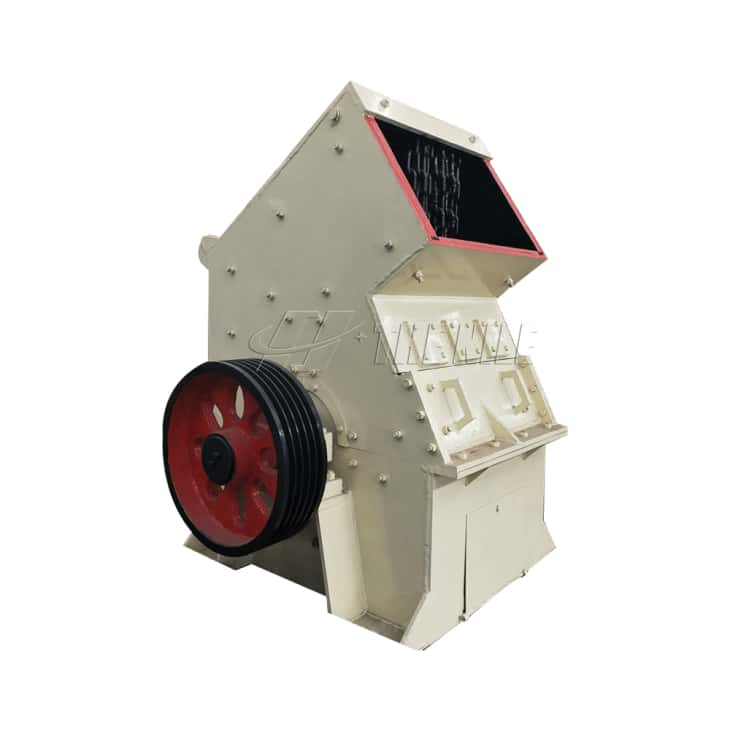

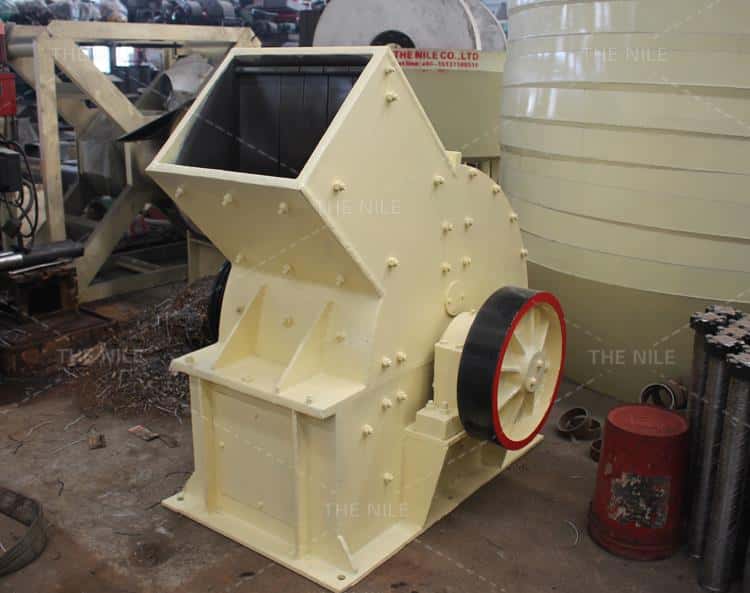

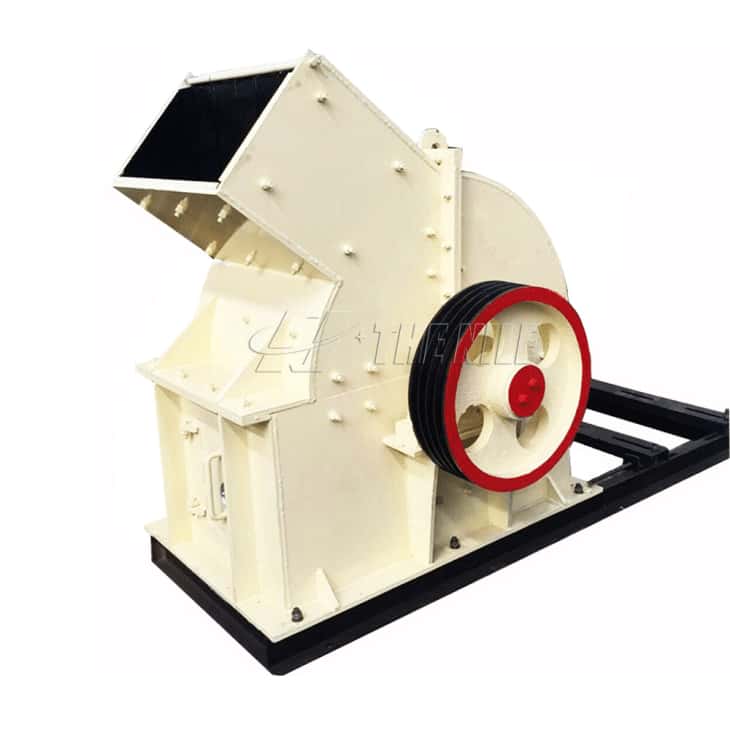

This Hammer Crusher is a kind of equipment for crushing materials in the form of impact, which is divided into two types: single rotor and double rotor. It is a section of crushing crusher that directly crushes materials with a maximum particle. In addition, our Hammer crusher is suitable for crushing medium-hard materials such as limestone, slag, coke, coal, and other materials in cement, chemical, electric power, metallurgical, and other industrial sectors. Compared with ordinary crusher on the market, it is cast by a new process and has wear resistance and impact resistance. The hammer breaks the structure of the body and solves the problem of dust pollution and ash leakage in the crushing workshop. The overall design is beautiful, compact, with fewer wearing parts and convenient maintenance.
Product Features of Hammer Crusher
This Hammer Crusher is equipped with a compact structure, beautiful appearance, good wear resistance, and convenient maintenance. It mainly relies on the impact of energy to complete the crushing material operation. When the hammer crusher is working, the motor drives the rotor to rotate at a high speed, and the material enters the crusher cavity evenly. The high-speed rotary hammer impacts and shears the torn material, causing the material to be broken. The material larger than the size of the mesh hole is retained on the sieve plate and continues to be struck and ground by the hammer until it is broken to the required discharge particle size and finally discharged through the sieve plate.
Details

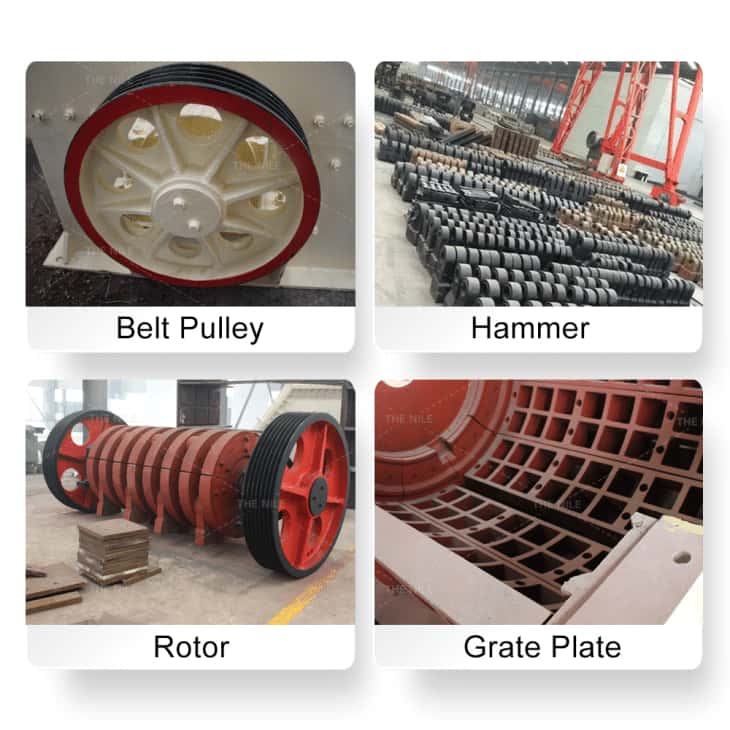

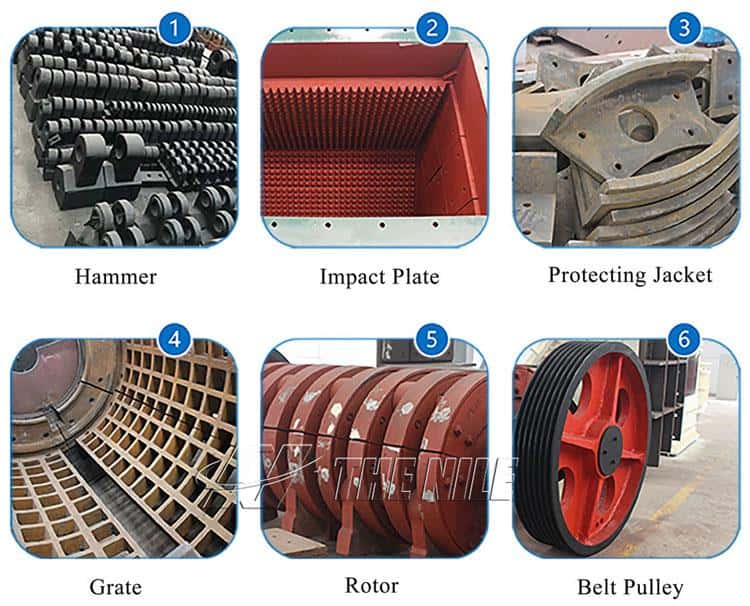

High manganese hammer and protecting jacket, 35GrMo main arbor and hammer shaft, Ht200 belt pulley, and flywheel.

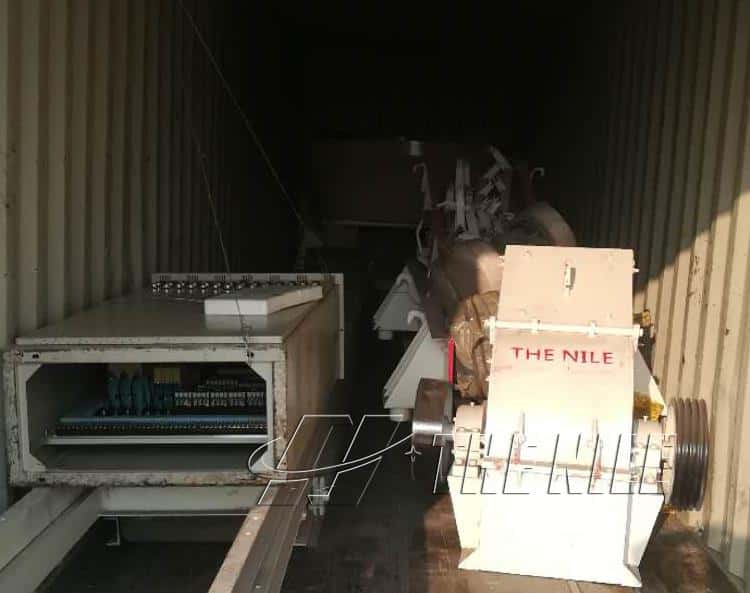

Packing&Shipping
Standard export container packing, or according to the customer's needs.

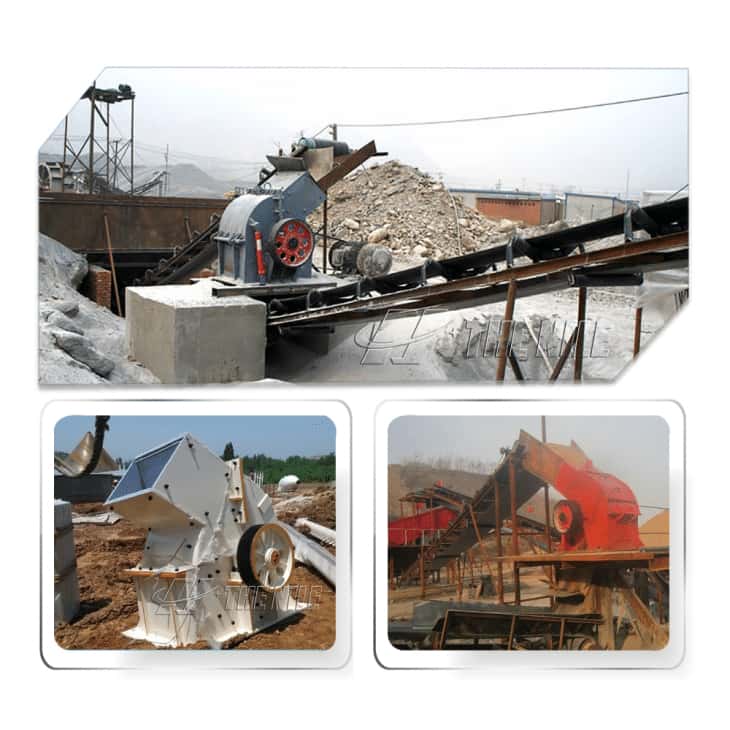

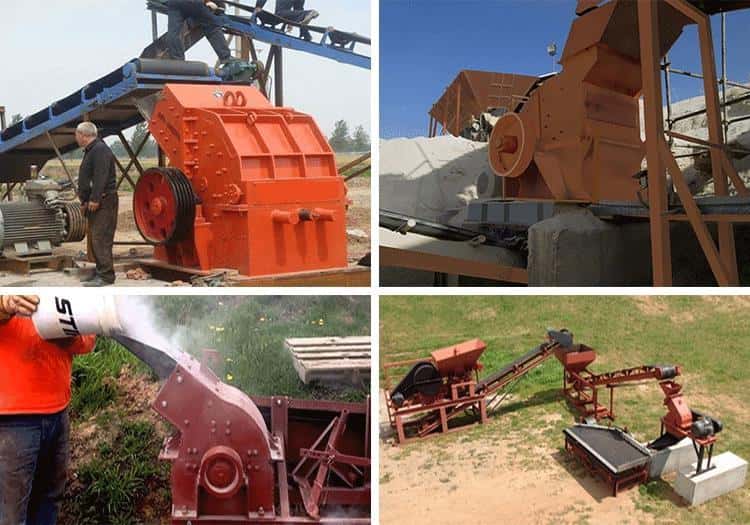

Customer Cases
Technical Parameters of Hammer Crusher
Model No. | Max. Feeding Size | Output Size | Capacity | Motor Power | Weight | Overall Dimension |
PC400*300 | 100 | ≤10 | 5-10 | 11 | 0.8 | 850*950* 880 |
PC600*400 | 120 | ≤15 | 10-25 | 18.5 | 1.5 | 1000*1000*1300 |
PC800*600 | 120 | ≤15 | 20-35 | 55 | 3.1 | 1515*2590*1040 |
PC1000*800 | 120 | ≤15 | 20-40 | 110 | 7.9 | 3200*2210*1515 |
PC1000*1000 | 120 | ≤15 | 30-80 | 132 | 8.65 | 3515*2230* 1515 |
