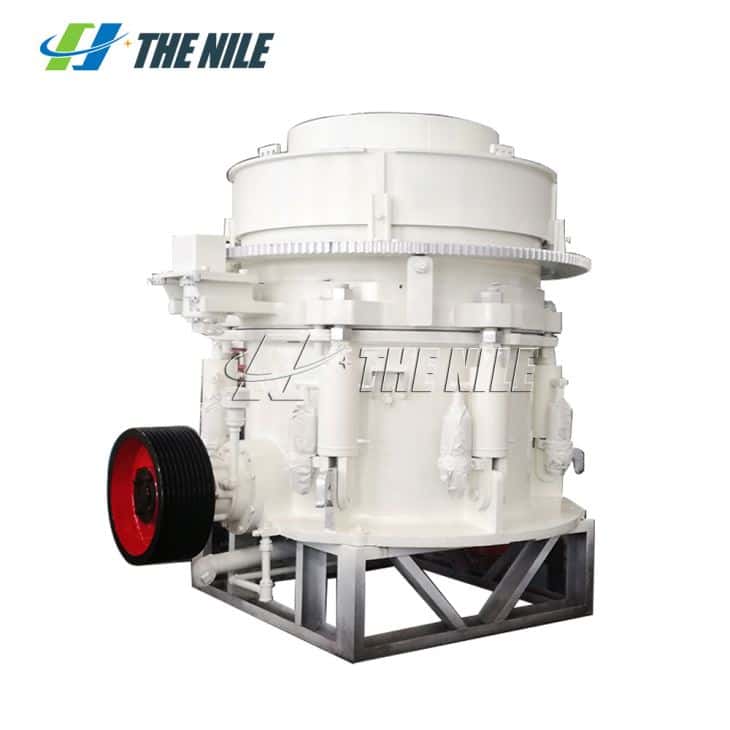

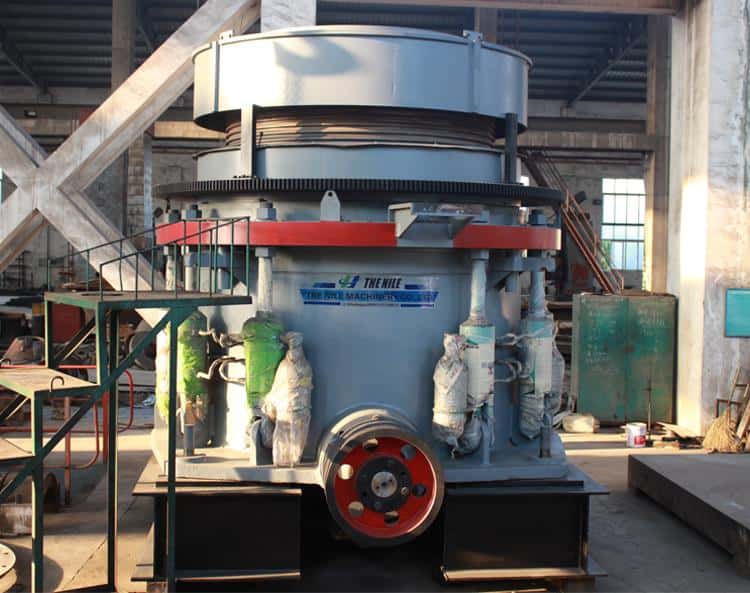

The Cone Crusher Performance is made of high quality material with advanced technology, which is a typical crushing device for medium and fine crushed hard materials.
Product description
The Cone Crusher Performance is made of high quality material with advanced technology, whichis a typical crushing device for medium and fine crushed hard materials. It breaks through the previous design concept of conical broken structure, adopts advanced spindle fixing, eccentric sleeve rotating structure around the main shaft, and uses the laminating crushing principle to significantly improve the crushing capacity and product quality.
Besides, the hydraulic lubrication system of the Cone Crusher Performance is designed to ensure reliable operation of the equipment. It also has the propertiesof high reliability, low energy consumption, high crushing efficiency, high degree of automation, simple operation and maintenance, good grain shape,durability as well as high cost effective,and can fully satisfy various crushing requirements of customers.The Cone Crusher Performance is very popular with our clients all over the world due to high performance and sophisticated design.
Technical Parameters
Model | Type of cavity | Min output | Feed opening size | Capacity | Motor power | Moving cone diameter |
(mm) | (mm) | (t/h) | (kw) | (mm) | ||
HPY200 | C | 13 | 150 | 120-240 | 160 | 950 |
F | 6 | 76 | 55-180 | |||
HPY300 | C | 13 | 225 | 150-430 | 220 | 1160 |
F | 6 | 86 | 90-260 | |||
HPY400 | C | 13 | 290 | 190-610 | 315 | 1400 |
F | 6 | 100 | 108-320 | |||
HPY500 | C | 13 | 320 | 230-700 | 400 | 1500 |
F | 6 | 110 | 145-430 | |||
HPY800 | C | 13 | 350 | 325-1150 | 630 | 1800 |
F | 8 | 120 | 245-730 |
