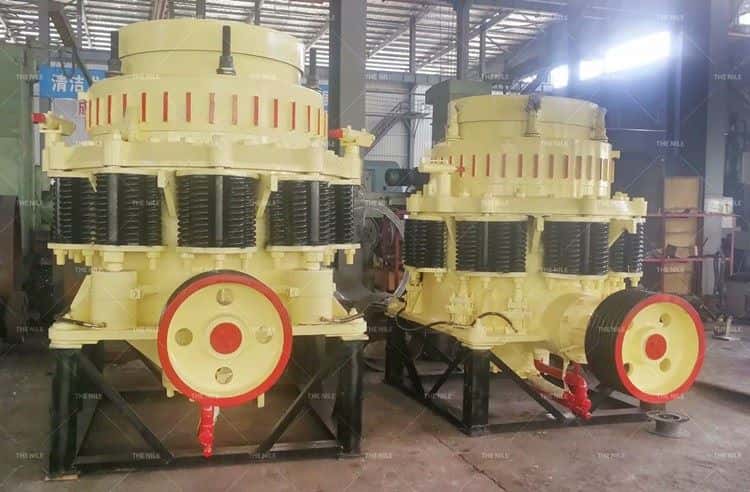

Symons Cone Crusher Manual

The symons cone crusher manual is widely used in the industries of metallurgy, building material, road construction, chemical engineering, and silicate. It is suitable for crushing all kinds of ores and rocks with hardness of medium or above.

Features

1. Moving cone turns continuously. the crushing and discharge process is along the working surface, high productivity;

2. The material is sandwiched between two pyramids, and it is easy to be crushed, low power consumption;

3. Even product size, cubic shape, the surface of the moving cone is even wearing.

Application

Symons cone crusher manual is widely used in the industries of metallurgy, building material, road construction, chemical engineering, and silicate. Symons cone crusher is suitable for crushing all kinds of ores and rocks with hardness of medium or above.

Working principle

When symons cone crusher manual is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

Equipment advantages of Symons cone crusher

1. According to the production needs, the user can select the crushing cavity type with high crushing efficiency, uniform product size and suitable granular shape.

2. Unique dust-proof sealing structure, which prolongs the replacement period of lubricating oil and the service life of parts.

3. The key components are made of special materials to support large crushing forces.

4. The length of the broken arm is large, the stroke is large, the crushing force is large, and the output is high.

5. The hydraulic clearing system is adopted, which is convenient to operate and reduces downtime.

6. Stable performance, low operating cost and long service life of wearing parts.

Type of Symons Cone Crusher for Sale

1. This symons cone crusher manual has two types:the standard type and the short head type.

2. Standard type has a larger discharge opening, and produce the coarser crushed product. It is generally used for medium and course material.

3.The short head type has a steep crushing cone, which can influence the discharge size, and it is mainly used to produce finely crushed.
