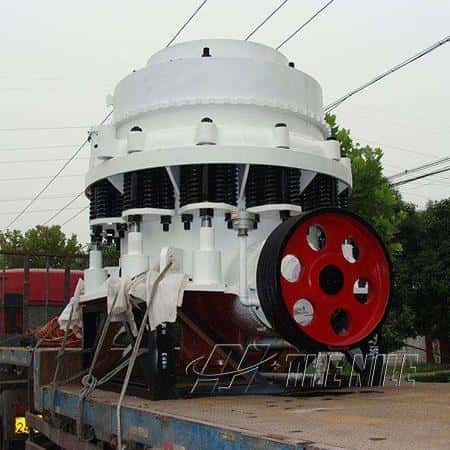

Processing Materials:Applicable materials: medium-hard ores and rocks, such as iron ore, quartz, cement clinker, limestone, granite, marble, gold ore and copper ore etc. Application Field：2ft Symons cone crusher is widely used in construction, building materials, metallurgy, chemical industry, etc.
Advantages:
1.The force of each part is more reasonable and the power conversion is more effective. 2ft Symons cone crushercan use larger eccentricity and higher speed to obtain higher output.
2.When the 2ft Symons cone crushing plantpasses iron or other loads increases suddenly, the hydraulic oil of the safety cylinder can flow back to the accumulator instantly, and quickly lift the piston rod, so as to better protect the crusher parts and reduce the damage of impact load to the machine.
3.The bumper and the cavity cleaning cylinder are designed independently of each other, and a more stable and reliable single-acting cylinder is used, which improves the reliability of the hydraulic system.
4.Under the same crushing wall diameter, the crushing strokeof 2ft Symons conecrusheris longer and the crushing ratio is larger.
Nilemachinery is a professional manufacturer of mining machinerywith rich technical accumulation and project experience.If you want to know more about 2ft Symons cone crusher, please consult ouronlineservice staff.
Technical data
Model NO. | Cavity Type | Max. Feeding size (mm) | Output size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
PSGB0607 | Standard fine | 60 | 6-30 | 16-50 | 22 | 4.5 |
PSGB0609 | Standard medium | 80 | 10-38 | 18-65 | 22 | 4.5 |
PSGB0611 | Standard coarse | 90 | 13-38 | 22-70 | 22 | 4.5 |
PSGD0603 | Short head fine | 35 | 3-13 | 9-35 | 22 | 4.5 |
PSGD0605 | Short head coarse | 50 | 5-16 | 22-70 | 22 | 4.5 |
PSGB0910 | Standard fine | 85 | 9-22 | 45-91 | 75 | 9.98 |
PSGB0917 | Standard coarse | 150 | 13-38 | 59-163 | 75 | 9.98 |
PSGB0918 | Standard extra coarse | 150 | 25-38 | 118-163 | 75 | 9.98 |
PSGD0914 | Short head fine | 35 | 3-13 | 27-90 | 75 | 10.53 |
PSGD0906 | Short head medium | 65 | 3-16 | 27-100 | 75 | 10.53 |
PSGD0907 | Short head coarse | 85 | 6-19 | 59-129 | 75 | 10.53 |
PSGB1313 | Standard fine | 115 | 13-31 | 109-181 | 160 | 22.46 |
PSGB1321 | Standard medium | 178 | 16-38 | 132-253 | 160 | 22.46 |

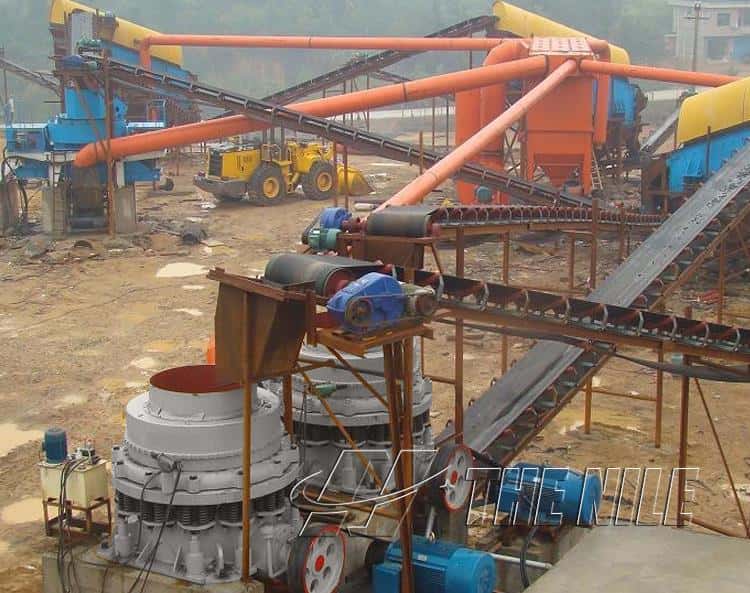

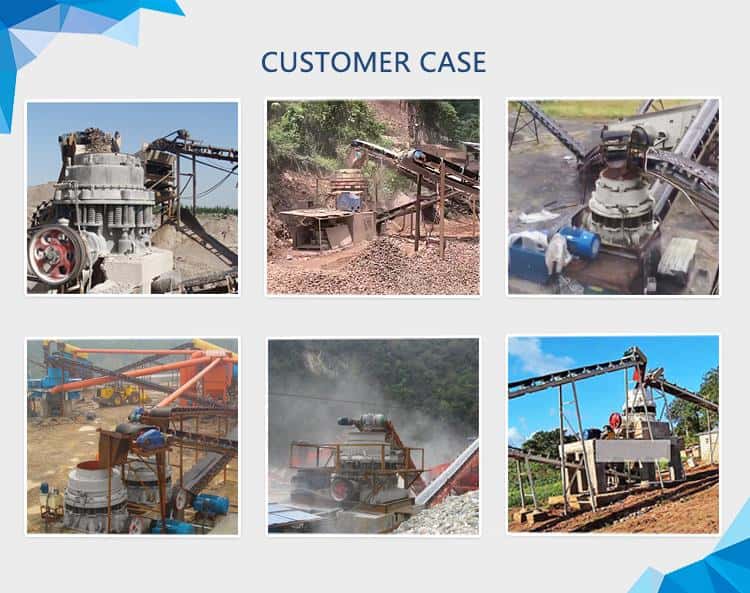

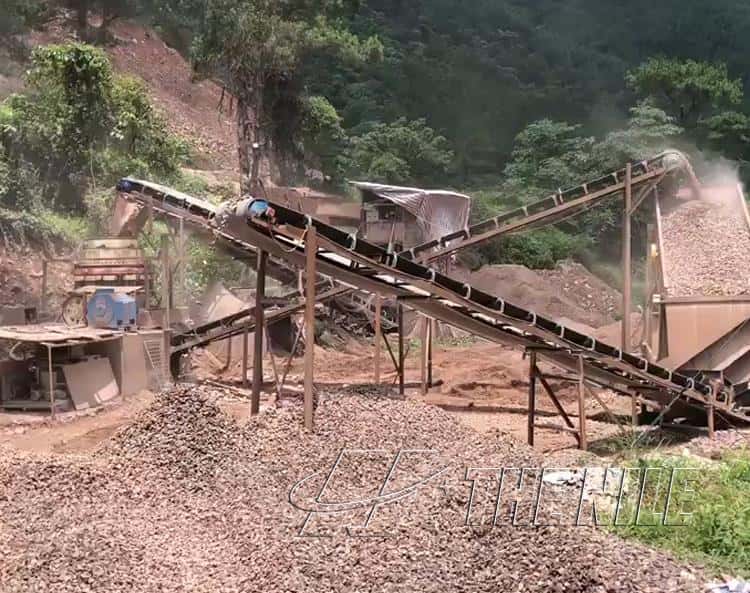

Products case
