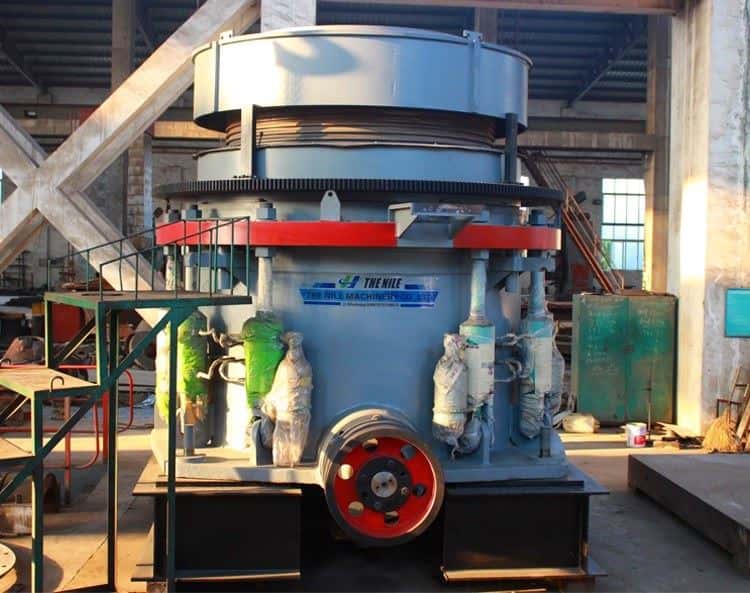

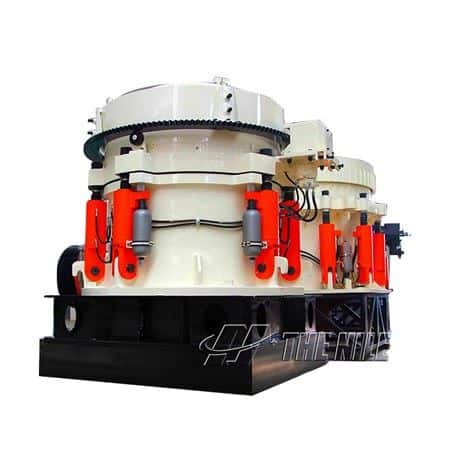

Hydraulic Cone Crusher

Technical Parameters

Working Principle of Hydraulic Cone Crusher

When working, the belt wheel or coupling, the transmission shaft, and the conical part are driven by the rotation of the motor to make the eccentric shaft swing periodically under the axis line. After the material enters the crushing cavity from the feeding port, it is crushed due to the mutual impact, extrusion, grinding, and rubbing between the eccentric shaft and the rolling mortar wall. The hydraulic safety system can hydraulically eliminate the faulty parts of the support sleeve and the fixed cone part when the cone crusher machine has an iron failure or a stuffy car phenomenon, which plays a good insurance role and greatly reduces the maintenance rate and improves the production efficiency.

Advantages of Hydraulic Cone Crusher

1.Hydraulic motor is used to optimize the production efficiency of hydraulic cone crusher.

2.Hydraulic protection and hydraulic cavity cleaning realize the high degree of automation and reduce downtime of cone crusher.

3.Hydraulic adjustment of discharge port and overload protection greatly improve the operation level of crusher, making maintenance simpler, operation more convenient and downtime shorter.

4.All parts of the cone crusher can be disassembled and maintained from the top or side. The moving cone and fixed cone are easy to be disassembled and assembled, without disassembling the frame and fastening bolts, so it is more convenient to replace the lining plate daily.

5.The two-way iron-passing release hydraulic cylinder of the cone crusher can let iron pieces pass through the crushing cavity. In the event of iron and instantaneous stuffiness, this machine can hydraulically lift the top and discharge the material automatically, which greatly reduces the trouble that the original spring cone crusher needs to be stopped for manual discharge.
