Applied Field: Fine refining ball mill is used for grinding quartz, limestone, aluminum slag, iron ore, copper ore, gold ore, bauxite, calcite, barite, coal gangue, coal, gypsum, slag, fly ash, etc. Fine refining ball mill machine is widely applied in different industries, such as cement, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics.
The Accessories of Fine Refining Ball Mill
Fine refining ball mill accessories include ball mill gear, ball mill pinion, ball mill hollow shaft, ball mill gear ring, ball mill steel ball, ball mill compartment plate, ball mill transmission device, ball mill bearing, ball mill end lining, etc.

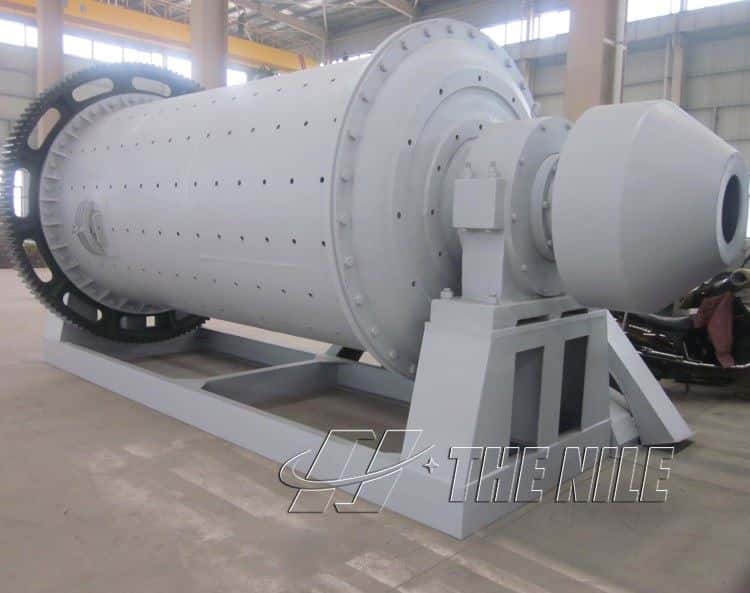

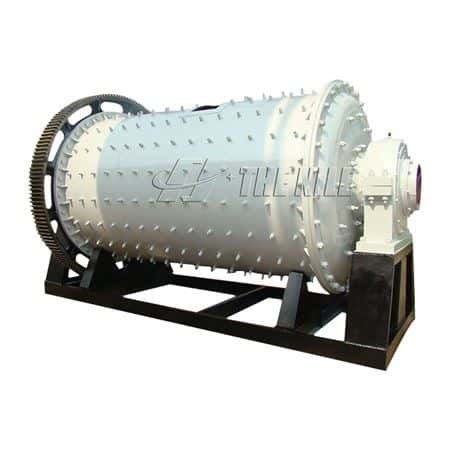

Composition and Structure of Fine Refining Ball Mill
Fine refining ball mill is mainly composed of cylindrical cylinder, end cover, bearing, and transmission ring gear.
Cylinder: it is filled with steel balls steel bars with the diameter of 25 mm-150 mm with loading amount is 25%-50% of the effective volume of the whole cylinder.
End cover: There are end covers at both ends of the cylinder, which are connected with the flange at the end of the cylinder by screws. The middle of the end cover has a hole, which is called hollow journal.
Bearing: The hollow shaft is supported on the bearing, and the cylinder can rotate.
Model | Ball loading (t) | Feed size(мм) | Size | Performance engine power (kw) | Weight |
Ф900×1800 | 1.4 | ≤20 | 0.075-0.89 | 18.5 | 3.6 |
Ф900×2100 | 1.7 | ≤15 | 0.075-0.83 | 15 | 3.9 |
Ф900×3000 | 2.7 | ≤20 | 0.075-0.89 | 22 | 4.5 |
Ф1200×2400 | 3.5 | ≤25 | 0.075-0.6 | 30 | 11.5 |
Ф1200×2800 | 6.8 | ≤25 | 0.075-0.6 | 37 | 13 |
Ф1200×4500 | 5.5 | ≤25 | 0.074-0.4 | 55 | 13.8 |
Ф1500×3000 | 6.8 | ≤25 | 0.074-0.4 | 75 | 17 |
Ф1500×4500 | 10.5 | ≤25 | 0.074-0.4 | 110 | 21 |
Ф1500×5700 | 15 | ≤25 | 0.074-0.4 | 130 | 24.7 |
Ф1830×3000 | 13 | ≤25 | 0.074-0.4 | 160 | 28 |
Ф1830×3600 | 15 | ≤25 | 0.075-0.4 | 160 | 33.5 |
Ф1830×4500 | 17 | ≤25 | 0.075-0.6 | 185 | 35 |
Ф1830×7000 | 25 | ≤25 | 0.074-0.4 | 210 | 36 |
Ф2100×3600 | 21 | ≤25 | 0.074-0.4 | 185 | 46.8 |
Ф2200×5500 | 30 | ≤25 | 0.074-0.4 | 245 | 48.5 |
Ф2200×6500 | 35 | ≤25 | 0.074-0.4 | 380 | 52.8 |
Ф2200×7500 | 33 | ≤25 | 0.074-0.4 | 380 | 56 |
Ф2400×3000 | 30 | ≤25 | 0.075-0.4 | 245 | 59 |
Ф2400×4500 | 33 | ≤25 | 0.074-0.4 | 380 | 65 |
Ф2700×3600 | 39 | ≤25 | 0.074-0.4 | 400 | 91.3 |
Ф2700×4000 | 40 | ≤25 | 0.074-0.4 | 400 | 94 |
Ф2700×4500 | 48 | ≤25 | 0.074-0.4 | 430 | 102 |
Ф3200×4500 | 65 | ≤25 | 0.075-0.4 | 800 | 137 |
Ф3600×4500 | 90 | ≤25 | 0.074-0.4 | 850 | 158 |
Ф3600×6000 | 110 | ≤25 | 0.074-0.4 | 1250 | 175 |
Ф3600×8500 | 131 | ≤25 | 0.074-0.4 | 1800 | 252 |
Ф4000×5000 | 121 | ≤25 | 0.074-0.4 | 1500 | 203 |
Ф4000×6000 | 146 | ≤25 | 0.074-0.4 | 1600 | 218 |
