Applied Field: Cement ball mill is mainly used for processing limestone and other materials with relatively high calcium carbonate content. It's widely applied in industries such as construction, cement plant, quarry factory, chemical industry, new materials, etc.

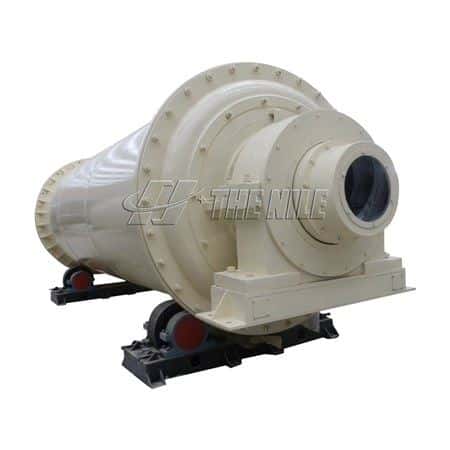

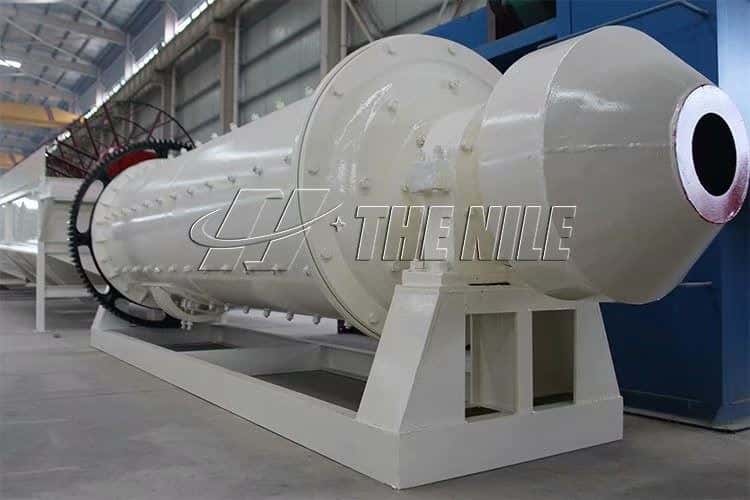

Introduction of Cement Ball Mill
Cement ball mill can be used for dry or wet production, and it can also be used for grinding and drying at the same time. The machinery that grinds materials in the cement production process is called cement ball mill, or cement mill or raw material mill for short, which is the key equipment for grinding in the cement production process.
Performance Advantagesof Cement Ball Mill
(1)Ordinary cement ball mill
Most of the ordinary cement ball mills are used in the circle flow grinding system, which is characterized by high grinding efficiency, large output, and low power consumption, especially when grinding slag cement. Generally, the output of the cement ball mill can be increased by 15-20%, and the power consumption can be reduced by about 10%. In addition, the temperature of the finished product can be reduced by 20-40 ℃, and the fineness of the product can be easily adjusted.
(2)High-fine and high-yield cement ball mill
High fineness and high yield cement ball mill is mainly used in open flow grinding system. It is characterized by simple system equipment and process flow, low investment, and small plant area. In the structure of the ball mill, a special internal separation device for powder separation with the foreign jaw is adopted. Its fine grinding bin is equipped with an activation device, and the grinding tail has a special discharge grate plate, which greatly reduces the size of the grinding medium in the grinding bin and improves the grinding efficiency.
Technical Parameters of Cement Ball Mill
Model | Ball loading (t) | Feed size(мм) | Size | Performance engine power (kw) | Weight |
Ф900×1800 | 1.4 | ≤20 | 0.075-0.89 | 18.5 | 3.6 |
Ф900×2100 | 1.7 | ≤15 | 0.075-0.83 | 15 | 3.9 |
Ф900×3000 | 2.7 | ≤20 | 0.075-0.89 | 22 | 4.5 |
Ф1200×2400 | 3.5 | ≤25 | 0.075-0.6 | 30 | 11.5 |
Ф1200×2800 | 6.8 | ≤25 | 0.075-0.6 | 37 | 13 |
Ф1200×4500 | 5.5 | ≤25 | 0.074-0.4 | 55 | 13.8 |
Ф1500×3000 | 6.8 | ≤25 | 0.074-0.4 | 75 | 17 |
Ф1500×4500 | 10.5 | ≤25 | 0.074-0.4 | 110 | 21 |
Ф1500×5700 | 15 | ≤25 | 0.074-0.4 | 130 | 24.7 |
Ф1830×3000 | 13 | ≤25 | 0.074-0.4 | 160 | 28 |
Ф1830×3600 | 15 | ≤25 | 0.075-0.4 | 160 | 33.5 |
Ф1830×4500 | 17 | ≤25 | 0.075-0.6 | 185 | 35 |
Ф1830×7000 | 25 | ≤25 | 0.074-0.4 | 210 | 36 |
Ф2100×3600 | 21 | ≤25 | 0.074-0.4 | 185 | 46.8 |
Ф2200×5500 | 30 | ≤25 | 0.074-0.4 | 245 | 48.5 |
Ф2200×6500 | 35 | ≤25 | 0.074-0.4 | 380 | 52.8 |
Ф2200×7500 | 33 | ≤25 | 0.074-0.4 | 380 | 56 |
Ф2400×3000 | 30 | ≤25 | 0.075-0.4 | 245 | 59 |
Ф2400×4500 | 33 | ≤25 | 0.074-0.4 | 380 | 65 |
Ф2700×3600 | 39 | ≤25 | 0.074-0.4 | 400 | 91.3 |
Ф2700×4000 | 40 | ≤25 | 0.074-0.4 | 400 | 94 |
Ф2700×4500 | 48 | ≤25 | 0.074-0.4 | 430 | 102 |
Ф3200×4500 | 65 | ≤25 | 0.075-0.4 | 800 | 137 |
Ф3600×4500 | 90 | ≤25 | 0.074-0.4 | 850 | 158 |
Ф3600×6000 | 110 | ≤25 | 0.074-0.4 | 1250 | 175 |
Ф3600×8500 | 131 | ≤25 | 0.074-0.4 | 1800 | 252 |
Ф4000×5000 | 121 | ≤25 | 0.074-0.4 | 1500 | 203 |
Ф4000×6000 | 146 | ≤25 | 0.074-0.4 | 1600 | 218 |
