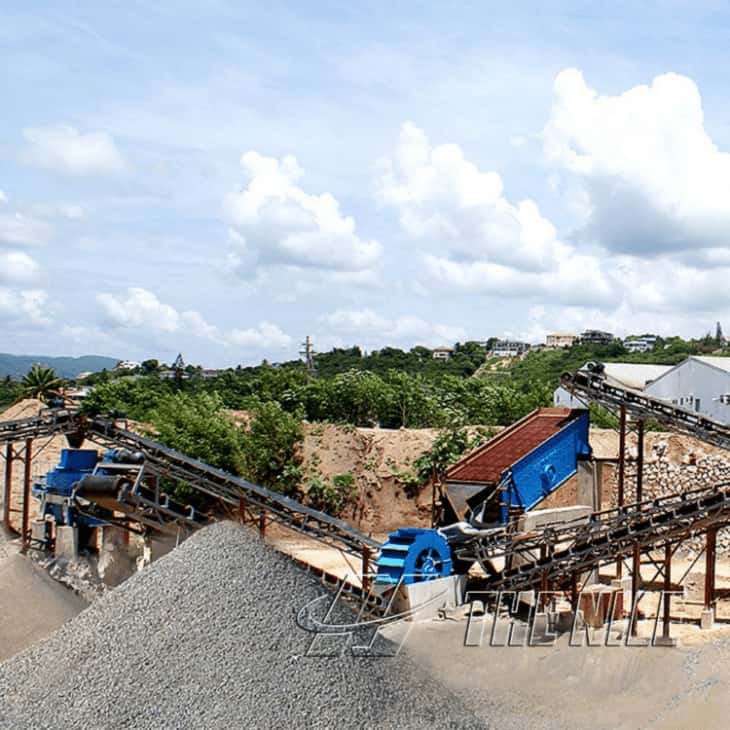

Sand production line, large output, good grain shape of finished products,including vibrating feeder, jaw crusher, cone crusher, VSI sand making machine, sand washing machine, vibrating screen and belt conveyor.
Product Feature
TheSand Making Linemeets the national construction sand standard, uniform particle size, good granular shape and reasonable matching. Equipped with advanced process, it has longer service life for use.
Product Description
TheSand Making Line has high degree of automation, large crushing ratio, high production efficiency and large processing capacity. The broken product has a cubic shape, low needle-like content, no internal cracks, and high compressive strength. The equipment is easy to use and there is nospecial need of maintaining. In addition, the wearing parts come from the latest high-strength wear-resistant materials in, with low loss and long service life. The sand production line is composed of a vibration feeder, a jaw crusher, a sand making machine, a vibrating screen and a tape conveyor. According to different process requirements, various types of equipment are combined to meet different process requirements. Compared with ordinary line on the market, ourSand Making Line is equipped with high automation degree, low running cost, high breaking rate, energy saving, large output, less pollution, simple maintenance.

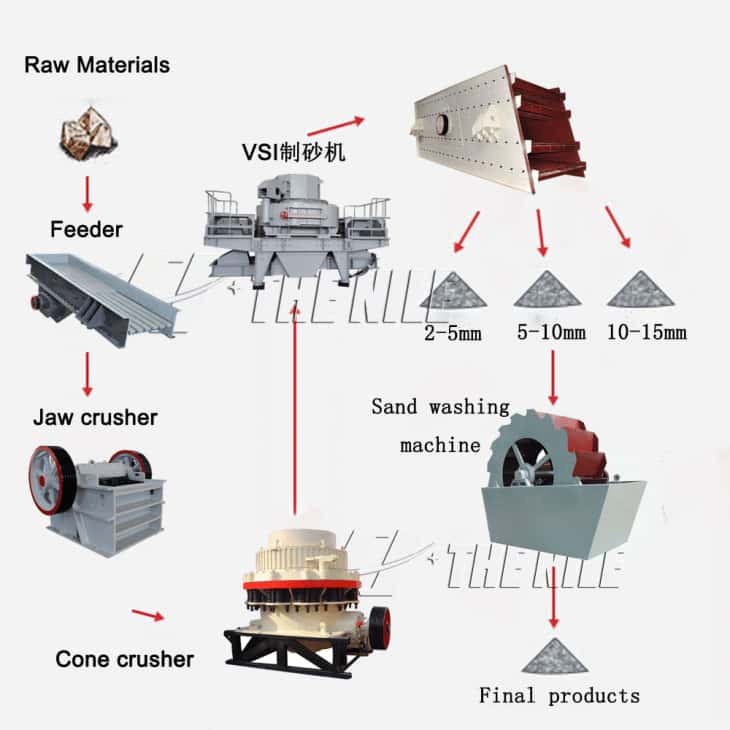

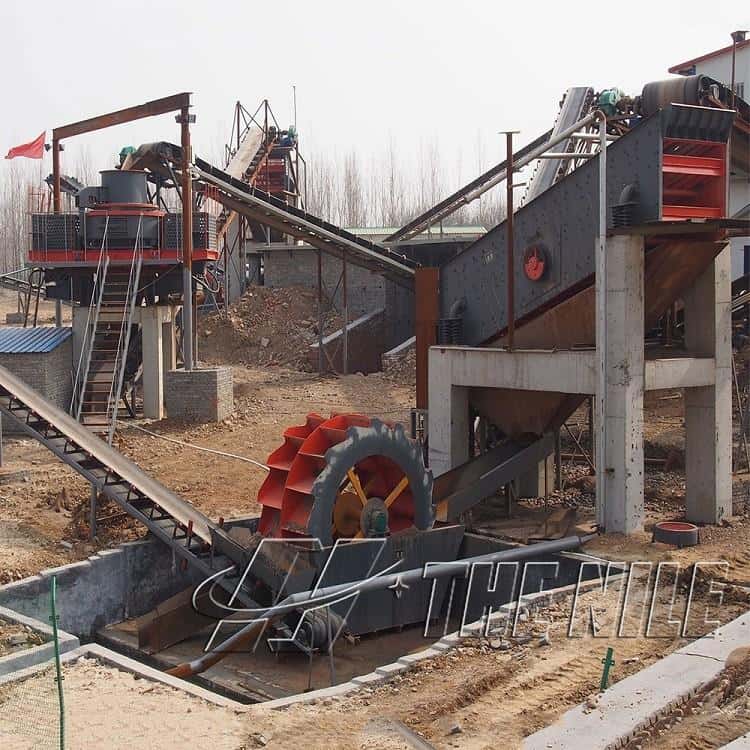

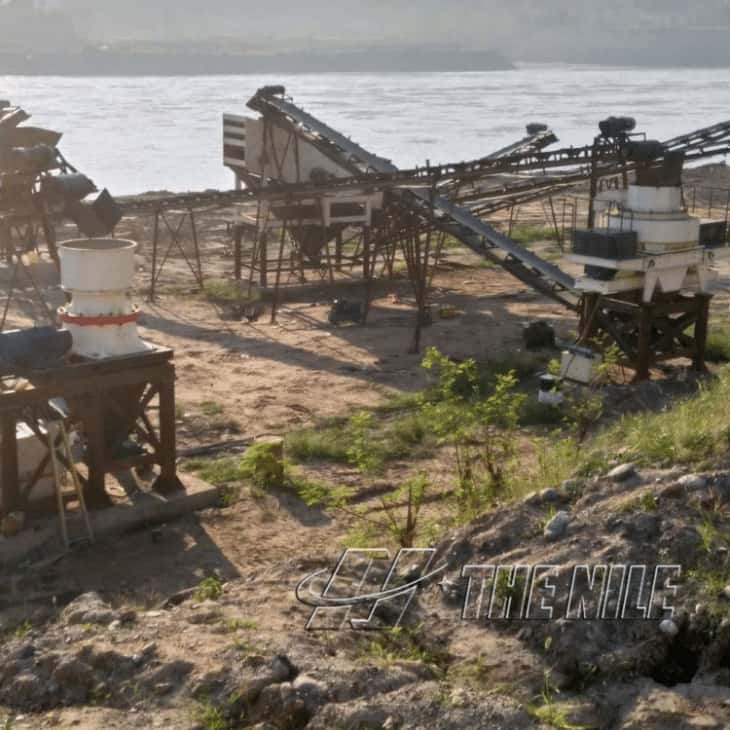

Sand making production line for road construction Sand making line including vibrating feeder, jaw crusher, cone crusher, VSI sand making machine, sand washing machine, vibrating screen and belt conveyor. In this line, we use jaw crusher as the first crushing machine, vibrating screen to ensure that the discharge size meets the requirements. And if some of the discharge size is too big, will be transported to the cone crusher as the second crushing. Then the materials transported to the VSI sand making machine and sand washing machine. Finally, materials of different sizes that meet the requirements will be transported to different places through the belt conveyor. |

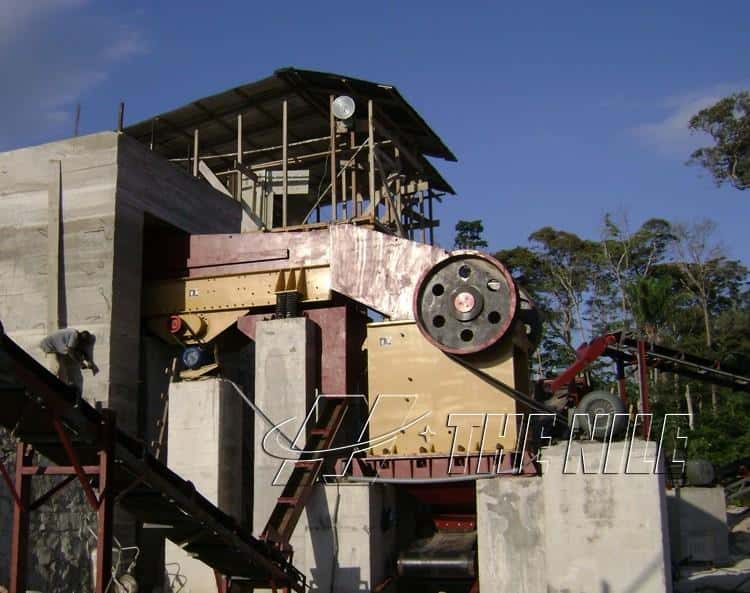

Feed bin, Vibrating feeder and Jaw crusher

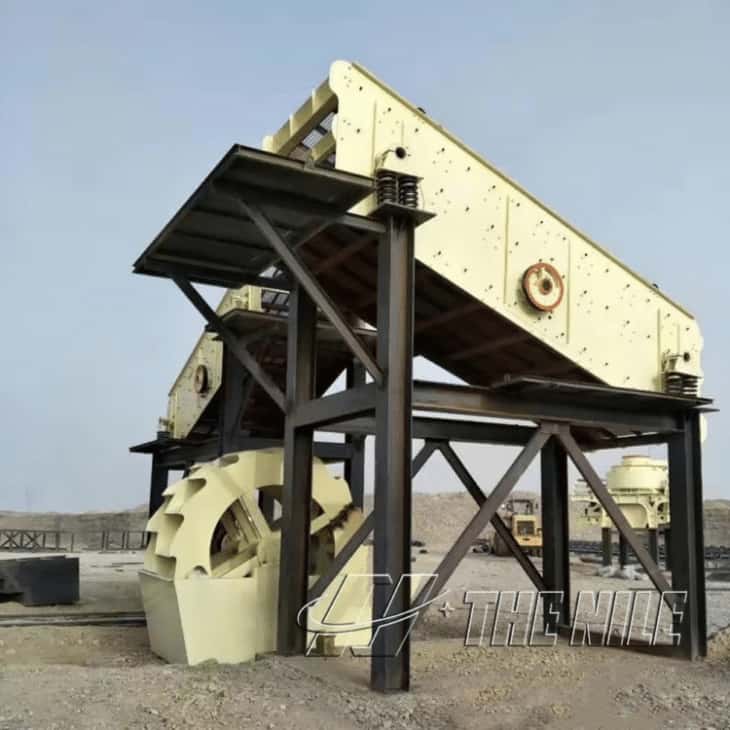

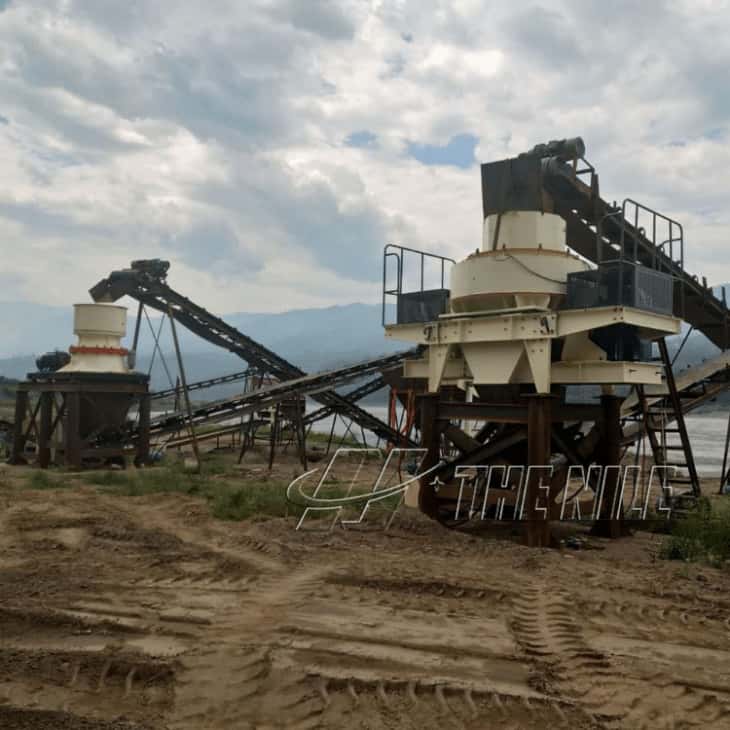

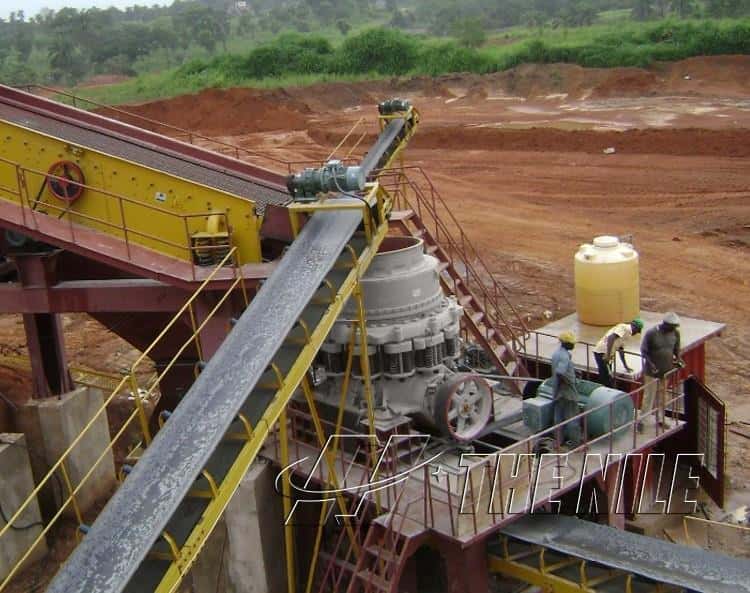

Vibrating screen and cone crusher

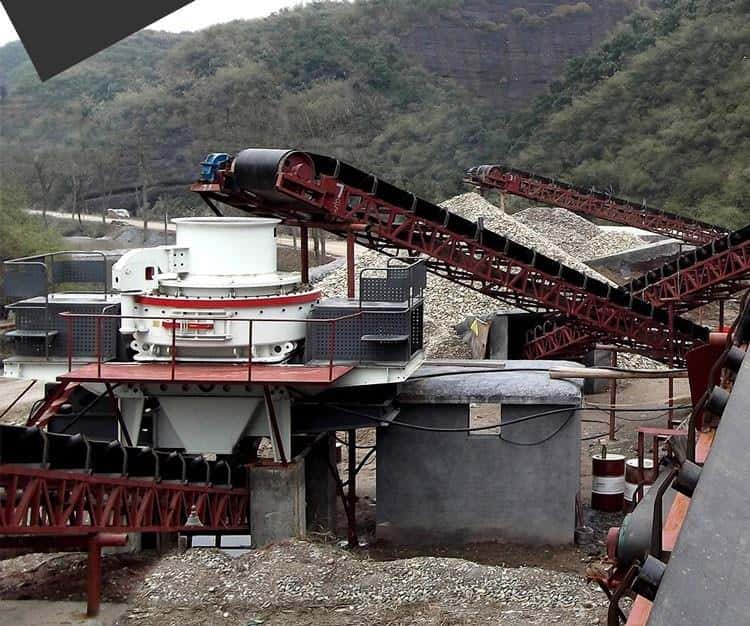

VSI Sand making machine

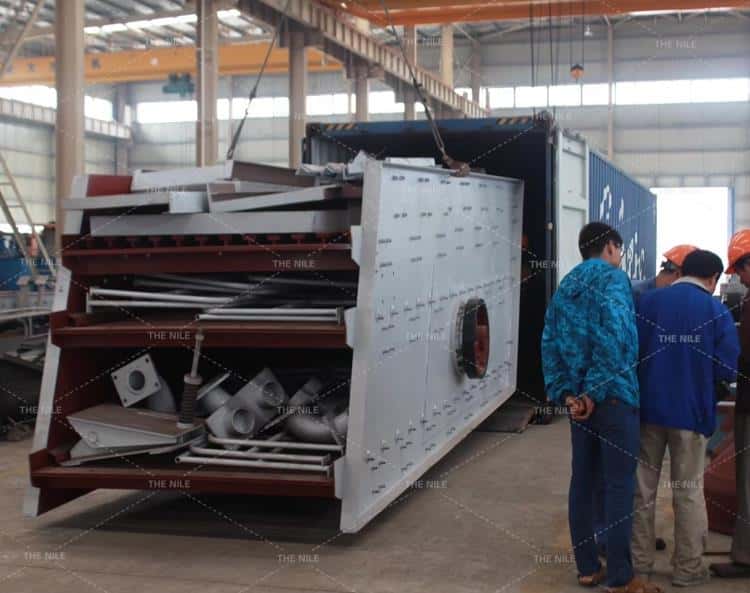

Packing&Shipping
Standard package in wooden boxes or containers.

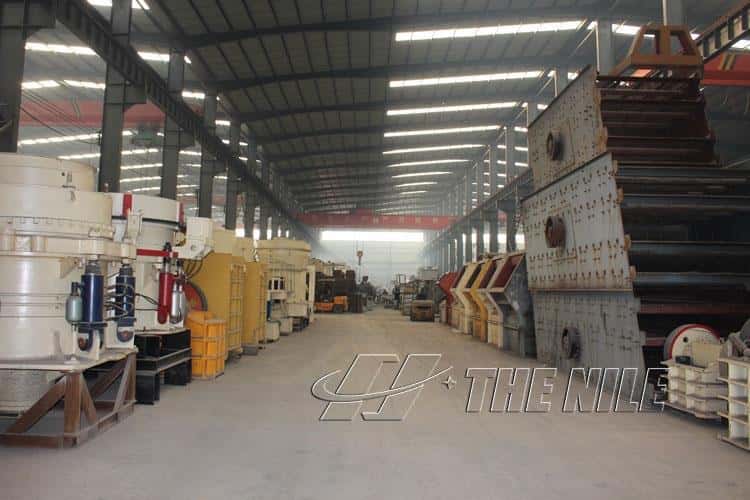

FAQ Q1: Are you factory or trade company? A1: We are factory. Q2: Where your products have been exported before? A2: Our products have been sold to South Asia, Africa, South America, middle East and so on. Q3: How will you help the customer to install the equipment? A3: Our senior engineer will guide the installation and commissioning as well as the initial production at Q4: How about the wear parts supply? A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved. Q5: What about the payment method? A5:T/T, L/C Paypal is available Q6: What about after-sale service? A6:12 months warranty for all kinds of products. |
Sand making production line | ||
Jaw crusher | Max. Feeding size | 500mm |
Output size | 50-150mm | |
Capacity | 50-180t/h | |
Motor power | 75kw | |
Motor model | Y240M-6L | |
Dimension | 2190*2206*2300mm | |
Weight | 17t | |
Cone crusher | Max. Feeding size | 150mm |
Output size | 10-40mm | |
Capacity | 50-160t/h | |
Motor power | 75 | |
Motor model | Y240M-6L | |
Weight | 9.98t | |
Vsi sand making machine | Max. Feeding size | 35mm |
Out put size | 0.5-20mm | |
Capacity | 60-150t/h | |
Motor number | 2 | |
Motor power | 55kw | |
Motor model | Y250M-4 | |
Dimension | 3.6*2.25*2.5m | |
Weight | 10t | |
Sand washing machine | Diameter | 2900mm |
Rotation speed | 0.8-1.5r/min | |
Capacity | 50-100t/h | |
Motor power | 7.5kw | |
Weight | 0.8t | |
Dimension | 3.8*2.6*3.2m | |
Vibrating feeder | Tough size | 960*3800mm |
Capacity | 90-200t/h | |
Motor power | 6-11kw | |
Motor model | Y160L-6/11 | |
Vibrating screen | Screen size | 600*1800mm |
Number of layer | 4 | |
Screen mesh size | 0.5, 10, 15 mm | |
Capacity | 60-500t/h | |
Motor power | 22 | |
Motor model | Y180M-6 | |
Belt conveyor | Belt width | 500mm |
Belt length | 15m | |
Belt Speed | 0.8-2m/s | |
Capacity | 70-190t/h | |
Motor Power | ||
