Applied Field: Sand washer/sand washing machine (sand washing plant) is the commonly used equipment in artificial sand making production line. Sand washer machine is used for processing cobble, limestone, granite, quartz sand and natural sand. Sand washer machine is widely used in construction site, sand and gravel plant, hydropower station and concrete dam site industries.

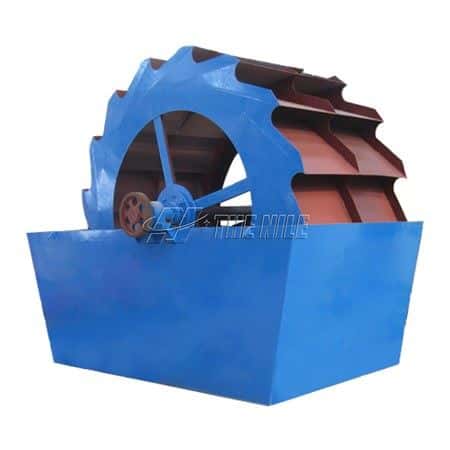

Introduction of Sand Washer Machine
Sand washer machine is mainly used for selection, grading and dehydration of small grain sand and gravel used in construction sites, glass factories, hydropower stations and other site. After the final sand washing in the sand production line, sand is cleaner, which can meet the relevant national standards.
Daily Maintenance of Sand Washer Machine
1.Frequently check the oil level of the reducer, the tightness of the V-belt, the meshing degree of the gears and the lubrication, whether the connecting fasteners are loose, so as to ensure the normal and stable working state of the sand washer machine.
2.The friction parts of the sand washer machine should be fully lubricated and filled with grease regularly. It should be filtered when filling. The lubricating oil with higher viscosity should be selected in the South than in the north when adding grease.
3.Before the installation of the sand washer, the operators must be trained in technical operation to make them understand and familiar with the principle, performance and operating procedures of sand washer machine. During the use of the sand washer machine, there should be specialized technical personnel have certain skills to take care of it.
Model | XS2300 | XS2600 | XS2900 | XS3500 |
Bucket diameter(mm) | 2300 | 2600 | 2900 | 3500 |
Rotation speed(r/min) | 1-2 | 1-2 | 0.8-1.5 | 0.8-1.2 |
Capacity(t/h) | 15-30 | 20-50 | 50-100 | 120-200 |
Power(kw) | 4 | 5.5 | 7.5 | 11 |
Weight(kg) | 4300 | 5600 | 8100 | 9900 |
Dimension(m) | 3.15*1.91*2.69 | 3.52*2.39*2.69 | 3.82*2.64*3.2 | 4.42*2.93*3.8 |
