Processing Materials: Sand washer is mainly used for processing pebbles, river sand, limestone, granite, quartz sand, artificial sand,etc. Applied Field: Sand washer is widely applied in the sand and gravel field, mining, building materials, transportation, chemical industry, water conservancy, and concrete mixing plant and other industries.
Product Description of Sand Washer

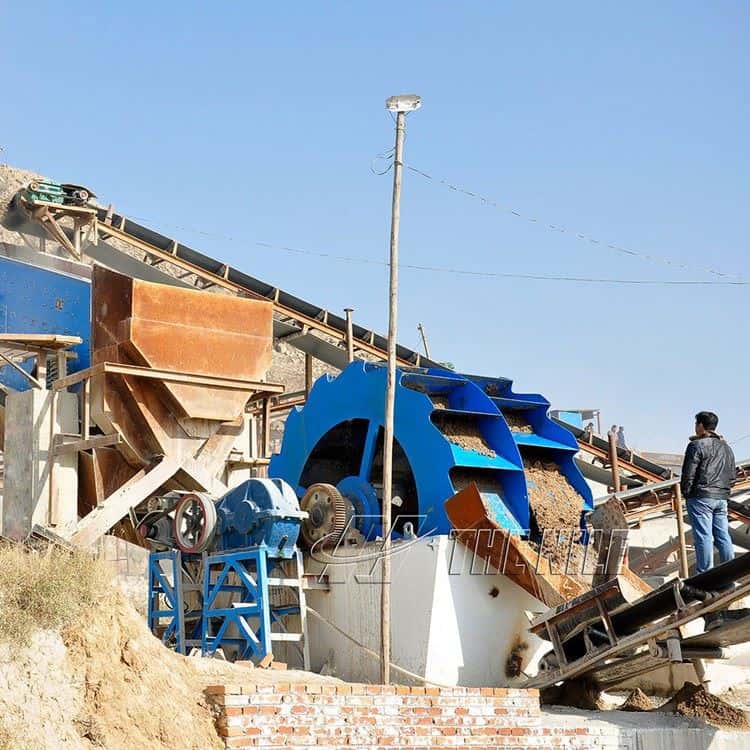

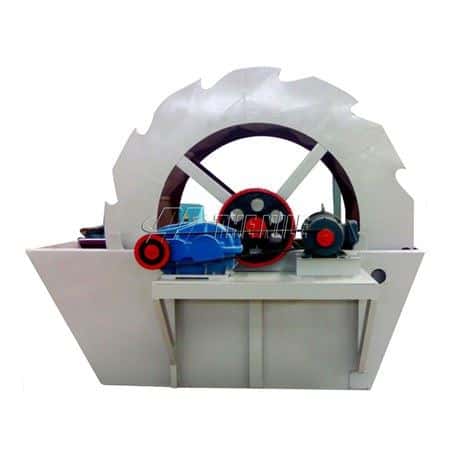

Sand washer is a kind of washing equipment for artificial sand and natural sand. Sand washing plant can remove the impurities on the surface of sand and destroy the water vapor layer covering the sand particles, so as to facilitate dehydration and play an effective role in sand washing. Because of its different appearance and principle, the sand washer machine is also called a spiral sand washing machine, drum sand washing machine, water wheel sand washing machine, wheel type sand washer, vibration sand washer, etc.
Advantages of Sand Washer
1.Sand washing plant is a multi-purpose washing machine, which can wash various rocks and sand.
2. It has simple structure and convenient maintenance.
3.High processing capacity and low power consumption.
4.The wearing parts of the sand washer equipment have less consumption and low use cost.
5.The impeller drive bearing device of sand washer plant separates water and water receiving materials, which greatly avoids the damage of bearing caused by water immersion, sand, and pollutants.
Model | XS2300 | XS2600 | XS2900 | XS3500 |
Bucket diameter(mm) | 2300 | 2600 | 2900 | 3500 |
Rotation speed(r/min) | 1-2 | 1-2 | 0.8-1.5 | 0.8-1.2 |
Capacity(t/h) | 15-30 | 20-50 | 50-100 | 120-200 |
Power(kw) | 4 | 5.5 | 7.5 | 11 |
Weight(kg) | 4300 | 5600 | 8100 | 9900 |
Dimension(m) | 3.15*1.91*2.69 | 3.52*2.39*2.69 | 3.82*2.64*3.2 | 4.42*2.93*3.8 |
