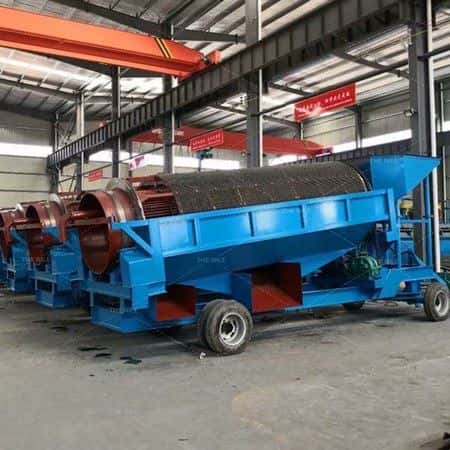

Mobile Trommel Gold Washing Plant

Introductuion of Mobile Trommel Gold Washing Plant

The barrel of mobile trommel gold washing plant can be divided into heavy and light type

Heavy type:the cylinder is of double-layer structure, and the inner layer adopts a screen bar structure, which is conducive to preventing large pieces of materials from directly impacting the screen, greatly improving the service life of the outer screen and the screening efficiency of the outer screen.

Light type: the cylinder is a single-layer screen, which is used when there is no large material. The advantage of the single-layer screen is that the weight of the whole cylinder is light, which can reduce the weight and energy consumption of the whole mobile trommel gold washing plant.

The cylinder body adopts a solid reinforced supporting wheel and side moving gear driving structure or sprocket driving structure. High manganese steel is used to weave the screen, which has the advantages of large processing capacity, high efficiency, long service life, easy replacement, and no blockage. The underframe of the mobile trommel gold washing plant is equipped with a heavy cross beam and 6 tires with strong structure and strong bearing capacity. The front wheel can turn 180 ° and move flexibly, which makes mobile platform can easily cope with various complicated roads. The split transmission design of generator driven motor can also be directly driven by a diesel engine, which has a lower failure rate and easy maintenance. The sticky gold blanket made of polyethylene non-woven fabric is laid in the gold bonding tank, which has a strong catching ability and high recovery rate, and is also effective for fine-grained gold.

Structure of Mobile Trommel Gold Washing Plant

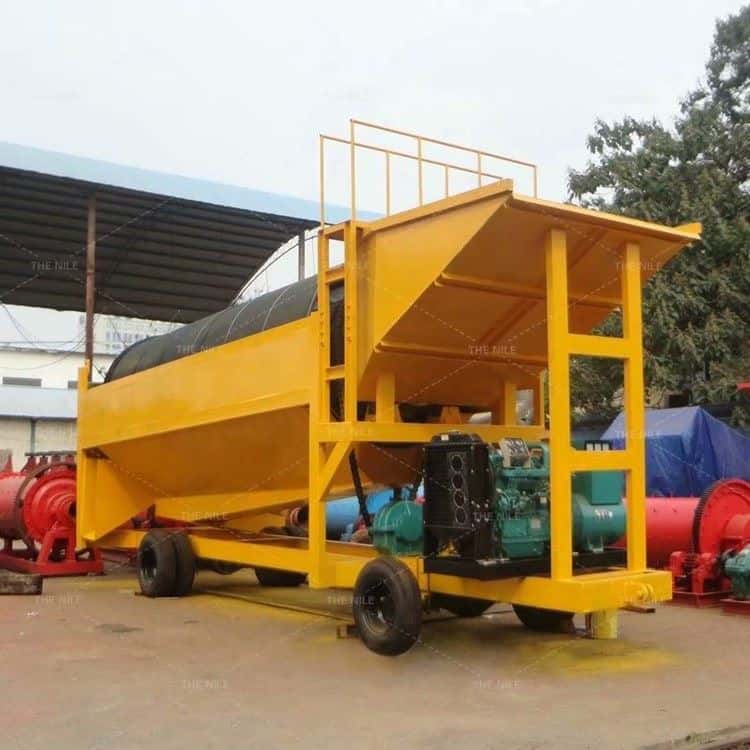

Mobile trommel gold washing plant is composed of the silo, cylinder, underframe, tire, rotary table, water pump, generator, transmission device, control cabinet, and gold sticking tank. It is a new movable gold separation equipment, which is suitable for small and medium-sized production scale placer gold beneficiation that needs a mobile operation. Mobile trommel gold washing plant has the characteristics of less investment, less labor, quick return on investment, simple operation and flexibility, and so on.
